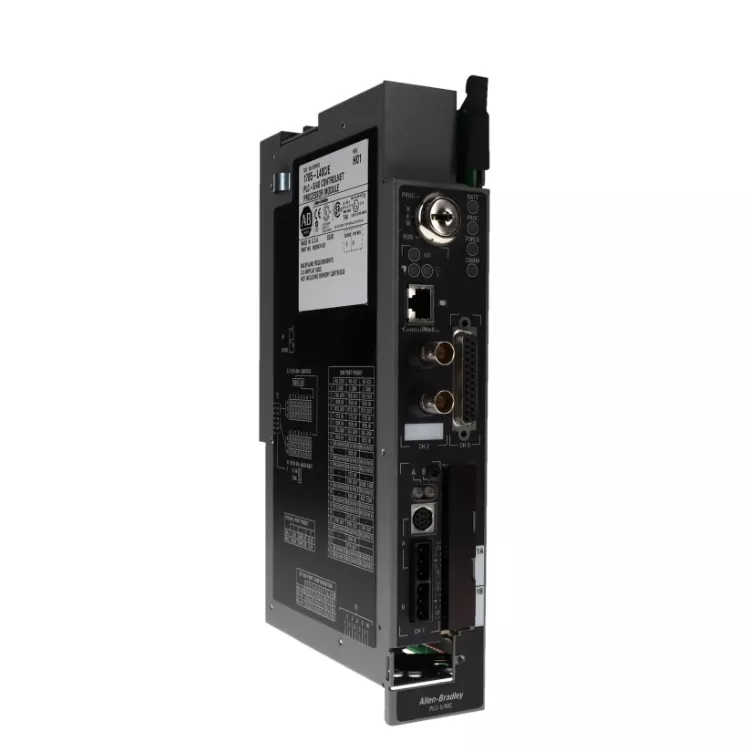

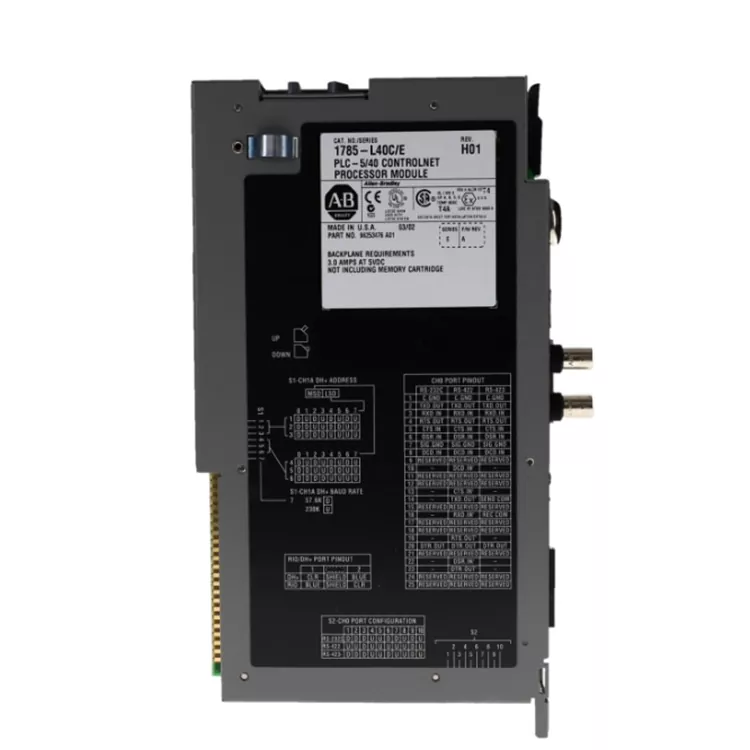

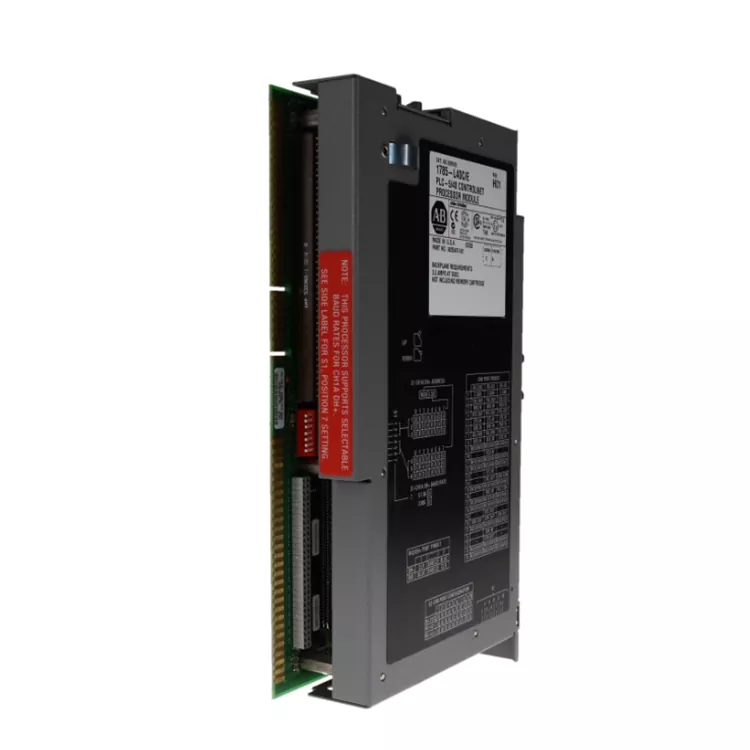

Allen Bradley 1785 L40C

U-Allen Bradley 1785 L40C yi-48K-igama le-SRAM iprosesa exhotyiswe nge-ControlNet network interface, ngelixa igcina i-DH + programming port. Inika amandla uthungelwano lwemizi-mveliso olunesantya esiphezulu kwaye ixhasa iimodyuli zogcino olushushu lwe-redundancy system. Ihambelana nochungechunge oluninzi lweemodyuli ze-I / O ezifana ne-1771 kunye ne-1794. Isekelwe kwi-RSLogix5 isofthiwe yokubhala inkqubo kunye nokulungiswa kweempazamo. Isetyenziswa ikakhulu kwiinkqubo zolawulo zePLC ezinkulu neziphakathi ezifuna ibhasi yeControlNet. I-Feimu Technology, njengomthengisi oqeqeshiweyo, inokubonelela ngereferensi yobugcisa kule modeli kwaye incede abathengi ekuqinisekiseni ukuhambelana kwe-hardware kunye nemiba yokunxibelelana.

Iinkcazo zobuGcisa

Iinkalo zesicelo

I-Allen Bradley 1785 L40C isetyenziswa ikakhulu ku:

Imigca yemveliso ezenzekelayo kwimveliso yeemoto

Iinkqubo zokulawula izixhobo ezinkulu zoomatshini

Iinkqubo ezizenzekelayo zokuhambisa kunye nokulungiselela

Ukulawulwa kwamandla kunye nezixhobo zamandla

Iinkqubo zolawulo lwenkqubo yokucocwa kwamanzi kunye nemisebenzi enxulumene noko

Iiprojekthi zogcino lweenkqubo zolawulo lwe-PLC-5

Inzuzo engundoqo

1. Inkxaso yonxibelelwano olukhawulezayo nge-ControlNet

Hlanganisa i-interface yenethiwekhi ye-ControlNet ukwenzela ukuba utshintshiselwano lwedatha olukhawuleza kakhulu phakathi kwabalawuli, i-I / O ekude, kunye nezixhobo ezihlakaniphile.

2. Ifanelekile kwiinkqubo ezizenzekelayo ezizenzekelayo

Inkxaso yolawulo lwe-I / O enkulu kunye nolawulo lwentsebenziswano yezixhobo ezininzi, ukuhlangabezana neemfuno zolawulo lwezixhobo ezinkulu zokuvelisa.

3. Iinketho zenkqubo ye-PLC-5 yokuphucula nokugcinwa kwayo

Ihambelana ne-PLC-5 ye-architecture ekhoyo, ingasetyenziselwa ukugcinwa kweenkqubo zokulawula eziphelelwe yisikhathi, ukunciphisa iindleko zokulungisa ngokubanzi.

4. Amandla okusebenza kwibakala loshishino oluzinzileyo

I-PLC evuthiweyo - i-5 iprosesa ye-architecture, ilungele ukusebenza ngokuqhubekayo kwendawo yoshishino.

5. Izakhono ezininzi zothungelwano ezihambelanayo

Inkxaso ye-ControlNet, i-DH +, i-Remote ye-I / O kunye nokunye kwiindidi ezininzi zendlela yonxibelelwano, izixhobo ezizenzekelayo zokudibanisa.

FAQ

Q1. Yeyiphi imodyuli?

U-Allen Bradley 1785 L40C ngu-Allen - Bradley PLC - 5/40 - c imodyuli yeprosesa eyandisiweyo, esetyenziselwa inkqubo yokulawula ye-PLC - i-5 yokulawula ingqiqo kunye nonxibelelwano lwenethiwekhi.

Q2. Nguwuphi umahluko phakathi kwe-1785 L40C kunye ne-1785 L40B?

Zombini zivela kwi-PLC - 5/40 iprosesa, umehluko omkhulu kukuba i-1785 - L40C yokwandisa umsebenzi wonxibelelwano we-ControlNet, kwaye ifaneleke ngakumbi kwizicelo zokulawula inethiwekhi ye-high-speed.

Q3. Yeyiphi isoftware enokusetyenziswa?

I-RSLogix 5 yayisetyenziselwa ukuhlelwa kweprogram, ukulayisha, kunye nokukhuphela.

Q4. Yeyiphi inkxaso yenethiwekhi yonxibelelwano?

Inkxaso ye-ControlNet, i-DH +, i-I / O ekude kunye ne-serial network interfaces.

Q5. Yintoni efanele iqwalaselwe xa utshintsha?

Qinisekisa ukuhambelana kwe-PLC-5 rack

Gcina inkqubo yoqobo

Jonga ubumbeko lwenowudi yenethiwekhi

Emva kokugqiba uvavanyo lonxibelelwano, lufake ekusebenzeni

Kutheni ukhethe thina

Emva kokuthengisa kunye neenkonzo

Nikela:

Inkxaso yokuqinisekisa imodeli yemveliso

PLC-5 inkqubo yokuhambelana ukubonisana

ControlNet/DH+ isikhokelo sonxibelelwano

Inkxaso yoqwalaselo lwe-RSLogix 5

Iingcebiso zokuxilongwa kweempazamo

Ukupakishwa kunye nokuthunyelwa

Inkqubo yokuPakisha:

Ukuqinisekisa ubume bemveliso

Ukupakishwa kwengxowa ye-Anti-static

Ukukhuselwa kwezinto ezichasene nokungcangcazela

Ukupakishwa kwebhokisi yekhadibhodi eyomeleziweyo

Uqinisekiso lokuthunyelwa kwefoto

Inkxaso: International Express; Uloyiko lomoya; Uthutho lwaselwandle

Inkqubo yokuqinisekisa:

Ukuhlolwa kwenkangeleko:

Jonga ileyibhile yemveliso, imodeli, inombolo yesiriyali, iqokobhe kunye nobume bojongano, kwaye uqinisekise ukuba akukho luhlenga-hlengiso okanye amanqaku angaqhelekanga.

Ukuqinisekisa imodeli:

Qinisekisa ukuba imodeli yesixhobo ngu-Allen Bradley 1785 L40C, kwaye uqwalaselo lwe-hardware luhambelana ne-PLC-5 / 40C yeprosesa yenkcazo.

Uvavanyo lwamandla:

Yifake kwi-rack ye-PLC-5, jonga isimo sokuqalisa se-CPU kunye nokuba izibane zesalathisi ziqhelekileyo.

Uvavanyo lonxibelelwano:

Qinisekisa ukuba uqhagamshelwano lwenethiwekhi luqhelekile ngokujonga umsebenzi wonxibelelwano lwesixhobo nge-ControlNet, DH+, okanye RSLogix 5.

Uvavanyo lwenkqubo:

Ukufundwa kweprogram, ukubhala kunye nokuqhuba iimvavanyo zenziwa ukuze kuqinisekiswe umsebenzi weprosesa.

Uvavanyo lozinzo:

Yenza uvavanyo ngokuqhubekayo ukuze uqinisekise ukuba imodyuli izinzile ekusebenzeni kwexesha elide.

Ityala lokwenyani kunye novavanyo lwabathengi

Ishishini lokwenza iphepha lalinokusilela okuphambili kolawulo lomgca we-PLC-5 wokuvelisa. Imodeli yokuqala ye-1785 L40C yayikubonelelo oluncinci kakhulu kwimarike, kwaye umgca wemveliso wawusemngciphekweni wokuvalwa. Sibonelele ngeemveliso ezilungileyo ezihlolwe ngokupheleleyo kwaye ziqhathiwe. Emva kokunikezelwa, sibambisene nenjineli yabathengi ukugqiba ukulayishwa kweprogram, i-ControlNet networking debugging, kwaye izixhobo zabuyiselwa ngempumelelo kwimveliso, ukuphepha ilahleko yemveliso yexesha elide.

"Izixhobo ezidala kunzima ukufumana i-1785 L40C ethembekileyo. Emva kokufumana iimpahla, unxibelelwano lwaluqhelekile, kwaye ingxelo yokuvavanya iphelile. Oku kwasombulula ingxaki ye-spare parts kumgca wokuvelisa." - Injineli yezixhobo kwishishini lokwenza iphepha.
