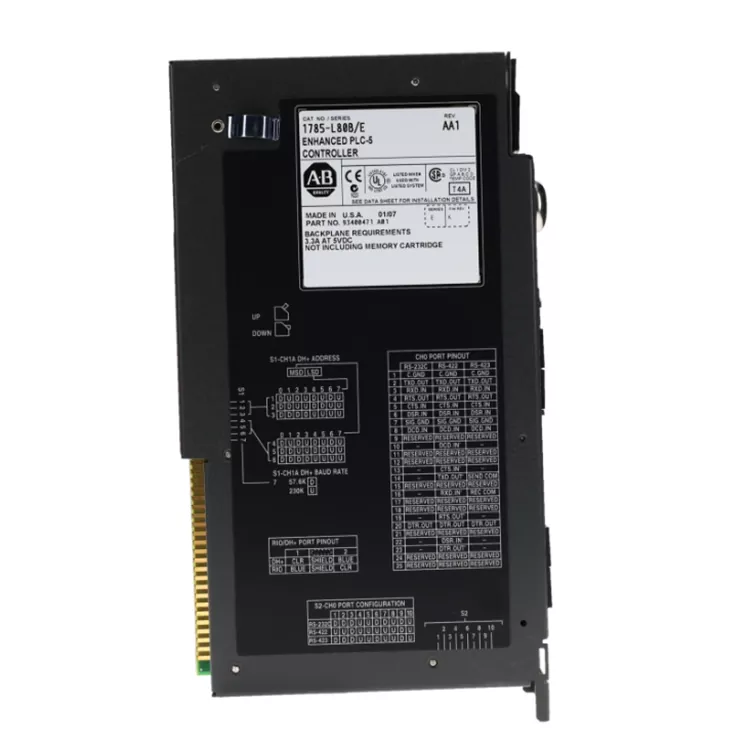

Allen Bradley 1785 L80B

Ukuzinza kwenkqubo yokulawula ngokupheleleyo kuxhomekeke kumandla weprosesa. I-Feimu Technology, umboneleli okumgangatho ophezulu onembali ende kushishino lolawulo lweshishini, ukwazi kakuhle ukubaluleka koyena mlawuli. Lo ka-Allen Bradley 1785 L80B unomthamo wenkumbulo enkulu, ene-100K ye-bytes yememori, kwaye inokwamkela ingqiqo enzima, ulawulo lwe-PID, iingxelo zedatha, kunye neminye imisebenzi. Inkqubo ingaba ixesha elide njengoko uthanda ngaphandle kwayo nayiphi na imiba.

Inempendulo ekhawulezayo, kunye ne-I / O yokuskena iphantsi njenge-3ms, ivumela impendulo yexesha langempela kwiimpawu zesayithi kwaye ingathinteli isigqi sokuvelisa.

Ineendlela ezininzi ze-neural, kunye ne-4 DH + / iziteshi ze-I / O ezikude, ukuya kwiikhabhinethi ze-93 ze-I / O zokucwangciswa okudibeneyo, kunye ne-3072 amanqaku okufaka kunye nemveliso enokuthi iqwalaselwe ngokuthanda.

Iza kunye ne-RS-232 ye-serial port ukuxhuma kwi-host computer. I-RAM exhaswa yibhetri iqinisekisa ukuba inkqubo ayilahlekanga kwimeko yokungaphumeleli kwamandla, kwaye i-EEPROM inikeza i-inshurensi emibini. Kwimizila emikhulu yokuvelisa njengaleyo ikwimizi-mveliso yeemoto, isinyithi, imichiza, kunye nonyango lwamanzi, i-PLC-5/80 ngokungathandabuzekiyo zizinto ezingundoqo. Ukukhetha iprosesa elungileyo kuya kuqinisekisa uzinzo lwenkqubo yonke.

Iinzuzo eziphambili kunye namanqaku okuthengisa imveliso

1. Ukuhambelana kwenkqubo ye-PLC-5

I-Allen Bradley 1785 L80B yenzelwe ngokukodwa iqonga lika-Allen Bradley PLC-5 kwaye linokusetyenziswa ngokuthe ngqo kuyilo lwe-PLC-5 olukhoyo lolawulo lwezakhiwo, olulungele ukugcinwa kweenkqubo ezizisebenzelayo zakudala. Izinto eziluncedo:

Akukho mfuneko yokutshintsha yonke inkqubo yolawulo;

Ukunciphisa iindleko zokuphucula izixhobo;

Ukunciphisa ixesha lokunciphisa imveliso.

2. Inkxaso yokugcinwa kwenkqubo yoshishino kubomi bomjikelo

Inani elikhulu lemigca yemveliso yoshishino isasebenzisa inkqubo yokulawula i-PLC-5.

Ngokufaka endaweni:

iprosesa yeCPU;

I/O imodyuli;

Imodyuli yonxibelelwano.

Isixhobo sokuqala sinokuqhubeka nokusebenza, kwaye imbuyekezo kutyalo-mali lwezixhobo lunokuphuculwa.

3. Inkonzo yokulinganisa imodeli yobuchwephesha

Ngomba onzima we-PLC-5 yeemodeli zemveliso, sibonelela:

Ukuqinisekiswa kwemodeli;

Uhlalutyo lokuhambelana kwenkqubo;

Isindululo sesisombululo esisesinye;

Inkxaso yamaxwebhu obugcisa.

Iinkcazo zobuGcisa

Iinkalo zesicelo

I-Allen Bradley 1785 L80B isetyenziswa ikakhulu kwi:

Ukwenziwa kweemoto

Kuba: ulawulo lomgca weNdibano; inkqubo yokuhambisa; ulawulo lweperipheral yeerobhothi.

Amandla ombane ombane

Kuba: Ukugcinwa kweenkqubo zolawulo; Ukubeka esweni ubume besixhobo.

Ishishini lePetrochemical

Kuba: Ulawulo lwenkqubo; Ulawulo lwezixhobo ezizenzekelayo.

Ukwenziwa kokupakishwa

Kuba: Ukulawulwa koomatshini bokupakisha; Ukusebenza ngokuzenzekelayo kwemigca yokuvelisa.Unyango lwamanzi

Isetyenziselwa: Ulawulo lwesikhululo sempompo; Inkqubo yokuhlola ezenzekelayo.

Ukuqinisekisa umgangatho

Inkqubo yokuhlolwa kwemveliso:

1. Ukuhlolwa kwembonakalo

Iqokobhe lemveliso; ulwazi lwelebhile; ubume bojongano.

2. Ukuqinisekiswa kwemodeli

Isiqinisekiso:

inombolo yeMveliso; Uguqulelo lwe-Hardware; Ukuhambelana kwenkqubo.

3. Uvavanyo lwamandla

Uvavanyo:

Imeko yokuqalisa i-CPU; Ukukhanya yimeko; Uzinzo lomsebenzi.

4. Uvavanyo lonxibelelwano

Ukuqinisekisa:

uqhagamshelwano lwenethiwekhi ye-PLC; Umsebenzi wonxibelelwano lwedatha.

5. Ingxelo yokuhanjiswa

Nikela:

Yenza ifoto yemveliso; iirekhodi zovavanyo; ukupakisha iifoto.

Kutheni ukhetha thina?

Ngaphezulu kweminyaka engama-20 yamava omatshini wokuzenzela

Besisebenzela i-PLC kunye ne-industrial automation parts spare parts ixesha elide kwaye siqhelene noku:

Allen Bradley PLC-5 series

ControlLogix series

Inkqubo ye-GE PLC

I-Siemens kunye ne-Schneider yeemveliso zolawulo lwamashishini

Inkxaso yoluhlu lwezinto ezityebileyo

Sinoluhlu olukhulu lweemveliso ezizisebenzelayo kwishishini:

Iimodeli eziqhelekileyo, iimodeli eziyekiweyo, iimodeli ezinqabileyo.

Nceda abathengi basombulule:

Umjikelo omde wokuthenga,

Umenzi wesixhobo sokuqala (OEM) ukuyeka,

Ukugcinwa kwezixhobo ezinzima,

Inkxaso yobuchwephesha yobuchwephesha.

Nikela:

Ukukhetha imveliso,

Isikhokelo sokufakela,

Uhlalutyo lwempazamo,

Inkxaso yokulungisa unxibelelwano.

FAQ

Q1. Yeyiphi isoftware enokusetyenziswa?

U-Allen Bradley 1785 L80B usebenzisa: RSLogix 5

Qhubeka:

Ukuhlelwa kwenkqubo yedayagram yeleli

Ukukhuphela / ukulayisha inkqubo,

Ukujongwa kwi-Intanethi,

Ukuxilongwa kweempazamo.

I-Q2 ixhasa ukusebenza kweshishini ixesha elide?

Unga.

I-PLC - i-5 series yenzelwe indawo yoshishino, ilungele ukusebenza ngokuqhubekayo kwexesha elide. Kodwa ekubeni umjikelo wobomi besixhobo ixesha elide, ingcebiso:

Rhoqo xhasa inkqubo,

Jonga imeko yonxibelelwano,

Gcina ifayile yoqwalaselo lwesixokelelwano

Ukulungisa iindawo ezisecaleni ezingundoqo.

Q3. Xa ufakelo, kufuneka ingqalelo?

Ngaphambi kofakelo:

Qinisekisa ukuba inkqubo inikwe amandla,

Jonga ukuhambelana kwesakhelo,

Qinisekisa uhlobo lwemodyuli.

Emva kofakelo:

Jonga kwakhona uxhumano,

Seta iiparamitha zonxibelelwano,

Khuphela inkqubo

Ukuqhutywa kovavanyo.

Q4. I-PLC - inkqubo ye-5 kufuneka iphuculwe?

Akunjalo. Kwi-PLC - inkqubo ye-5 isasebenza ngokuzinzile, buyisela imodyuli engundoqo ngokuqhelekileyo inokwandisa ubomi benkonzo yezixhobo.

I-Q5: ixhasa ukuthengwa kwebhetshi?

Inkxaso. Inokubonelela ngokubonelela ngobuninzi, iingxelo zovavanyo kunye neenkonzo zenkxaso yobugcisa.

Ukupakishwa kunye noThutho

Ukupakishwa:

Ukukhuselwa kwe-Anti-static

Ukupakishwa kwe-Shockproof

Iileyibhile zemodeli ezizimeleyo

Ukhuseleko lobungqina bokufuma

Ngaphambi kokuthunyelwa:

Iindlela zothutho: International Express; Uloyiko lomoya; Ukuthunyelwa kwenqanawa elwandle.
