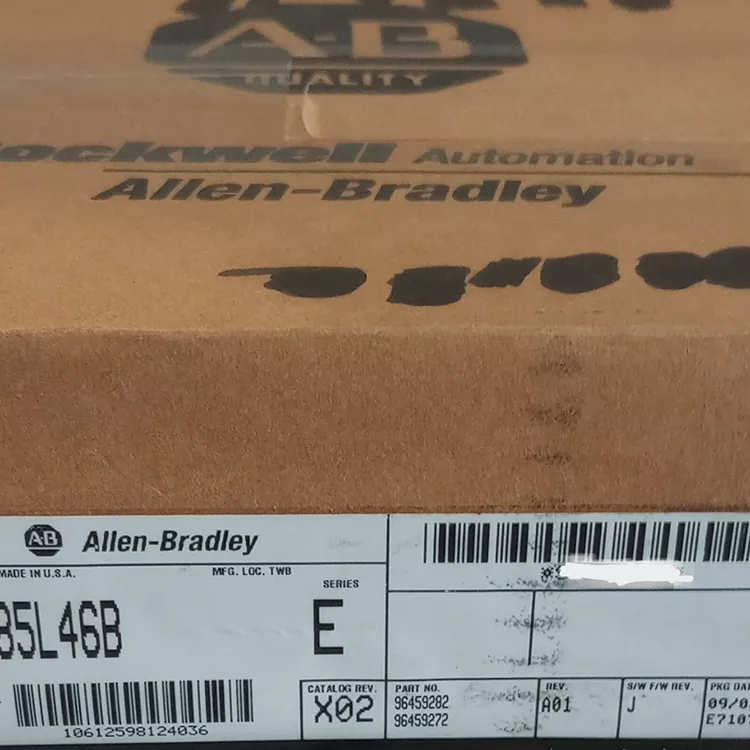

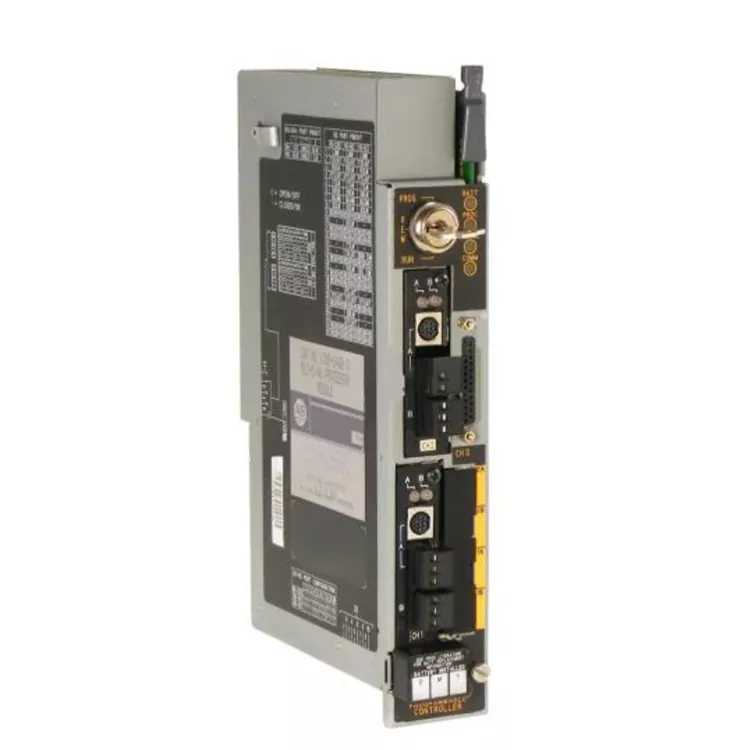

Allen Bradley 1785 L46B

I-Allen Bradley 1785 L46B, njenge-CPU ephambili ye-PLC 5 series, inokulawula yonke i-1771 I / O rack. Inememori eyaneleyo yokusingatha ingqiqo yeenkqubo zemveliso ephakathi kunye nenkulu kwaye isetyenziswe ngokubanzi kwiindawo zoshishino eziye zasebenza iminyaka emininzi. I-Feimu Technology, njengomthengisi wokuqala, ihlola i-modules engenayo i-modules layer by layer, iqhuba isethi epheleleyo yeemvavanyo ezifana namandla-onnxibelelwano, umthwalo ofanisiweyo kunye nokukopisha ixesha elide, ukuphelisa iingozi ezifihlakeleyo zokuguga kunye nokugcinwa kunye nokulungiswa kwamacandelo kwangaphambili, kwaye inokufakwa ngokuthe ngqo kwimveliso xa izandla zifunyenwe.

Iinkcukacha zobugcisa

Eyona nzuzo ingundoqo kunye nendawo yokuthengisa

Ukugcinwa kwenkqubo enkulu yomthamo + PLC-5 uyilo oluvuthiweyo + oluhambelana neenkqubo ezikhoyo zoshishino + ezilungele ukutshintshwa nokugcinwa

48 k Amagama inkumbulo yomsebenzisi

Xhasa i-DH + / I-I/O ekude

Faka isicelo kwi-PLC - 5/1771 inkqubo

Ilungele ukutshintshwa kweendawo ezisecaleni kwiinkqubo eziyekiweyo ze-PLC-5

Ingasetyenziselwa ukugcinwa kwezixhobo ezizenzekelayo kunye nenkqubo yokwandisa ubomi

Ukunciphisa iindleko zokuhlaziya okubangelwa kukuphucula inkqubo yokulawula yonke

Inkqubo yokuFakela

Qinisekisa imodeli kunye nenkqubo:

Qinisekisa i-Allen Bradley 1785 L46B nge-PLC ekhoyo - 5 isakhelo, imodyuli ye-1771 I/O kunye nenkqubo yonxibelelwano ehambelanayo.

Nqamula unikezelo lombane lwesixokelelwano:

Cima unikezelo lwamandla kwisakhelo se-PLC ngaphambi kofakelo ukunqanda umonakalo owenziwe yiplagi ephilayo kwaye uyisuse.

Jonga umqhubekekisi:

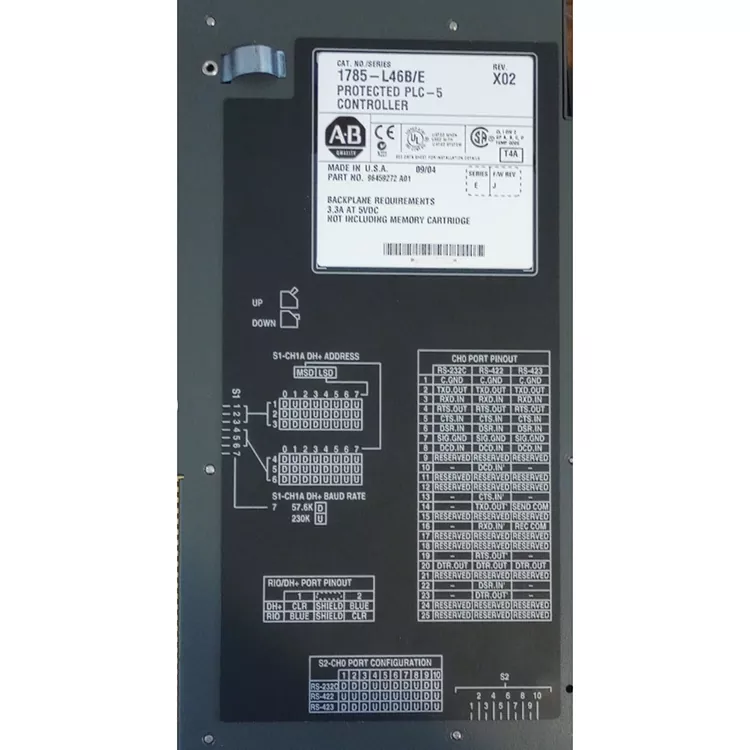

Jonga inkangeleko, i-interface, i-pin kunye ne-nameplate ukuqinisekisa ukuba akukho monakalo ucacileyo.

Faka inkqubo:

Ijolise kwiprosesa ye-PLC - i-5 frame slot ehambelanayo, qinisekisa i-mesh kunye ne-backplane isinxibelelanisi ngokupheleleyo, kunye nemodyuli esisigxina.

Imizila yoqhagamshelwano yoqhagamshelwano:

Xhuma i-DH + okanye i-Remote ye-I / O imigca yonxibelelwano ngokwenkqubo yoqwalaselo, kwaye ujonge ukuqina koqhagamshelwano.

Beka kubonelelo lombane:

Buyisela unikezelo lwamandla enkqubo ye-PLC kwaye ujonge isalathisi sesimo seprosesa ukuze uqinisekise ukuba akukho mpazamo ingaqhelekanga.

Ubumbeko lwesoftware kunye novavanyo:

I-RSLogix 5 isetyenziselwa ukuseka unxibelelwano kunye neprosesa, khangela ubume beprosesa, inkqubo yokuqhuba inkqubo kunye ne-I / O yokunxibelelana.

Inkqubo yokuqinisekisa:

Ukuvavanya i-digital I / O, i-I / O ekude kunye nemisebenzi yonxibelelwano nganye nganye, kwaye uqinisekise ukusebenza okuqhelekileyo kwenkqubo yokulawula kwaye uyibeke kwimveliso.

Ummandla weSicelo

Umgca wemveliso yeemoto

Izixhobo zokupakisha

Inkqubo yokucoca amanzi

Inkqubo yokuphatha izinto eziphathekayo

Izixhobo zeekhemikhali zePetroleum

Intsimbi kunye nentsimbi kunye nezixhobo zensimbi

Ukugcinwa kwenkqubo yolawulo ye-PLC-5 endala

Imeko: amanye amashishini okuvelisa aphesheya kwe-PLC - 5 ukugcinwa kwenkqubo

Inkqubo yolawulo yoqobo yomthengi ithatha i-PLC-5 yokwakha. Ngenxa yokungaphumeleli kweprosesa yokuqala, kufuneka sifumane iindawo ezitshintshileyo zemodeli efanayo. Thina ngokutsho komthengi ukubonelela nge-1785 - L46B i-nameplate yolwazi iqinisekisa uhlobo kunye noguqulelo, kunye nokuhlolwa kwembonakalo, uvavanyo lombane kunye nonxibelelwano emva kokuthunyelwa, olusetyenziselwa ukugcinwa kwenkqubo yokuqala.

Ubomi benkonzo

I-Allen Bradley 1785 L46B yeyemodeli endala ye-PLC-5 yomlawuli weshishini. Ubomi bayo bokwenene benkonzo buphenjelelwa yindawo yokusebenza, amandla-ngexesha, ubushushu, umswakama, umthwalo, kunye neemeko zokugcinwa, kwaye akunakulinganiswa nje ngenani elimiselweyo leminyaka.

Iimpawu zokuyila: Isebenzisa i-hardware ye-industrial-grade hardware kwaye ifanelekile ukusebenza ngokuqhubekayo kwexesha elide.

Ubomi obuyinyani: Isixhobo esinokugcinwa kakuhle kunye nokusingqongileyo okuzinzile sinokusebenza ixesha elide, kodwa ngenxa yokuba uchungechunge lwe-PLC-5 luyekiwe, ubomi bokwenyani buxhomekeke ngakumbi kwiqondo lokuguga lamacandelo kunye nokunikezelwa kweendawo ezisecaleni.

Amacandelo olondolozo oluphambili: iprosesa, unikezelo lwamandla, isinxibelelanisi se-backplane, ujongano lonxibelelwano kunye namacandelo anxulumene nememori.

Amanyathelo okwandisa ubomi benkonzo: gcina ikhabhinethi ingena umoya, ingenathuli, ingenabungqina bokufuma, kwaye ikhuselwe kubushushu obuphezulu kunye nokutshatyalaliswa kombane. Jonga unikezelo lwamandla, unxibelelwano, kunye nesimo sempazamo rhoqo.

FAQ

Q1. Kufuneka ndenze ntoni ukuba isixhobo asisebenzi ngokwesiqhelo emva kokukhanyisa umbane?

Okokuqala jonga i-PLC - 5 unikezelo lwamandla ombane kunye noqhagamshelo lwangasemva, kwaye emva koko ujonge ukukhanya kwesalathisi sombuso; Eyongezelelweyo ikhowudi yokungaphumeleli kweprosesa, imeko yenkqubo kunye namakhonkco onxibelelwano, usebenzisa i-RSLogix 5 yokuxilongwa kwi-intanethi xa kuyimfuneko.

Q2. Ngaba ndingathenga emva kokuyeka imveliso?

Kusenokubakho i-inventory, iinxalenye zokuqhaqha, iindawo ezihlaziyiweyo, njl., kwimarike, kodwa imeko yemveliso iyahluka kakhulu, ngoko ke ukuthengwa kufuneka kugxininise ekuqinisekiseni umthombo kunye novavanyo.

Q3. Zeziphi izinto ekufuneka zikhangelwe ukungahambi kakuhle konxibelelwano lweDH+?

Gxininisa ekujongeni ikhebula le-DH +, idilesi ye-node yonxibelelwano, ukucwangciswa kwe-terminal, isimo sesiteshi sonxibelelwano kunye nezinye izixhobo ze-node. Kwangaxeshanye, qinisekisa ukuba imeko yonxibelelwano yeprosesa iqhelekile.

Q4. Ngaba ezinye iiprosesa ze-PLC-5 zingasetyenziswa njengeendawo ezibambeleyo?

Awunako ukugweba ngembonakalo yodwa. Kufuneka uqinisekise ngokusekelwe kwi-PLC-5 yokucwangciswa kwenkqubo, ubuninzi be-I / O, indlela yokunxibelelana, umthamo weprogram kunye nochungechunge oluthile / uHlaziyo.

Q5. Yintoni ekufuneka ijongwe xa kuthengwa izinto ezisetyenzisiweyo/ezihlaziyiweyo?

Kuyacetyiswa ukuba ujonge i-nameplate ka-Allen Bradley 1785 L46B , uthotho, uhlaziyo, ujongano, inkangeleko, ubume bokusebenza, ubume bonxibelelwano kunye neziphumo zovavanyo lomsebenzi wokwenene.

Kutheni ukhethe thina

Ukujongana nokuthengwa kwezixhobo zolawulo lwemizi-mveliso yehlabathi jikelele, iFaimu Technology inejelo lokubonelela elizinzileyo nelinqabileyo. Ngokungqongqo asinikezeli ngeemveliso zomgunyathi okanye iindibano ezihlaziyiweyo. Ibhetshi nganye yeempahla iza neerekhodi zokuhlolwa komgangatho opheleleyo. Sixhasa ukuthunyelwa kwempahla yamazwe ngamazwe kwaye sinokusebenzisana namaxwebhu orhwebo lwangaphandle. Kwangaxeshanye, sibonelela ngesiseko sokubonisana kobugcisa bemveliso, siphendule ngokukhawuleza kwiimfuno zokulungisa ezingxamisekileyo zabathengi, kunye nokunciphisa ixesha lokunciphisa umgca wemveliso kunye nokunciphisa ilahleko yemveliso yefektri.
