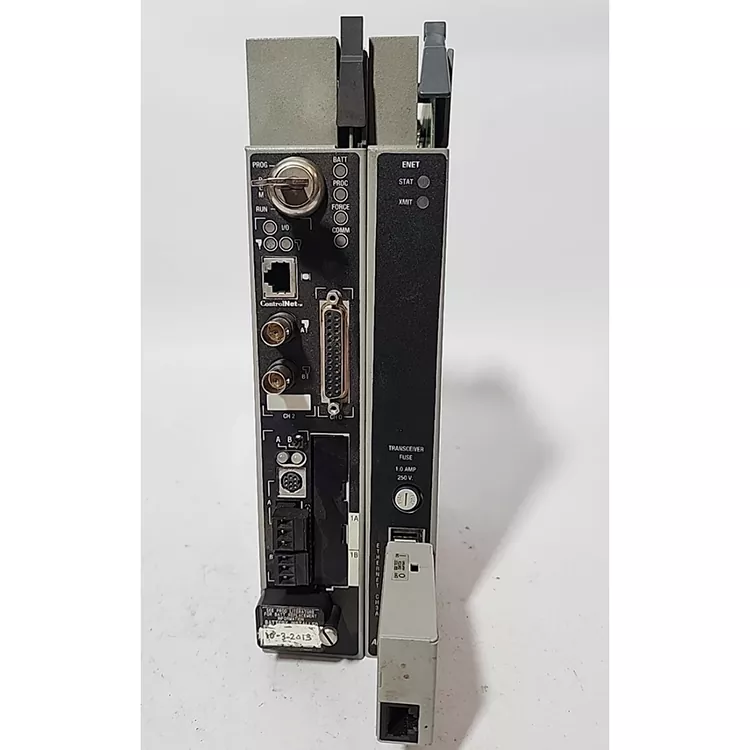

Allen Bradley 1785 L80C15

Umgca wemveliso omdala uphuculwe ukusuka kwi-DH + ukuya kwi-ControlNet. Eyona nxalenye yayiyingxaki yayikukuba inkqubo yayifuna ukubhalwa kwakhona kwaye isethi entsha yezixhobo kwafuneka ifakwe. I-Feimu Technology, njengomboneleli okumgangatho ophezulu onembali ende yokugxila kuphuculo lolawulo lwemizi-mveliso, ibazi kakuhle le ngxaki. Lo Allen Bradley 1785 L80C15, kunye ne-PLC-5 yoyilo, igcina isiseko sokuqala seprogram kwaye inokudlulisa ngokuthe ngqo ngaphandle kwesidingo sokubhala kwakhona; ine-ControlNet eyakhelwe ngaphakathi i-1.5 i-interface ye-high-speed interface kunye ne-0.5ms deterministic scan, kwaye inokusebenza kwi-setup ye-network edibeneyo kunye namanethiwekhi amadala kunye namatsha; nge-100K ye-RAM kunye ne-125 yokwandiswa kwe-chassis, ukusebenza okuphuculweyo kunokufikelela kwinqanaba eliphezulu.

Ukuguqulwa kwemigca emidala yemveliso kumashishini afana neemoto, i-metallurgy, kunye neekhemikhali, ukutshintsha nje iprosesa kuya kwenza umsebenzi.

Iinkcazo zobuGcisa

Izinto eziluncedo ezingundoqo kunye namanqaku okuthengisa

1. Ukusebenza okuphezulu kwe-PLC-5 amandla okulawula

I-Allen Bradley 1785 L80C15 yeye-PLC-5/80 series processor kwaye ifanelekile kwimisebenzi yokulawula enzima kunye nezicelo ezinkulu zokuzenzekelayo. Izinto eziluncedo:

Inkxaso yeenkqubo zolawulo olukhulu

Ifanelekile kulawulo lwentsebenziswano yezixhobo ezininzi

Ibonelela ngezakhono zokucwangcisa idatha ezinzileyo

2. Ukugcinwa kokuhambelana kwenkqubo ye-PLC-5

Kwizixhobo zokuvelisa ze-PLC-5 ezisasebenza:

Akukho mfuneko yokuphucula inkqubo yolawulo ngokubanzi

Gcina ingqiqo yolawulo lokuqala

Ukunciphisa iindleko zokulungisa izixhobo

Iyasebenza ku:

Ukugcinwa kwemigca emidala yemveliso

Ukutshintshwa kweemodeli eziyekiweyo

Ukwandiswa komjikelo wobomi bezixhobo zoshishino

3. Inkxaso yokulinganisa imodeli yobuchwephesha

Ngenxa yenani elikhulu leemodeli ze-PLC-5, ngaphambi kokuthenga, kuyafuneka ukuba uqinisekise:

Imodeli yeprosesa

PLC uhlobo rack

Indlela yonxibelelwano

Uqwalaselo lwe-I/O

Ukuhambelana kwenkqubo

Ukubonelela ngenkxaso yokukhethwa kweengcali ukunciphisa umngcipheko weempazamo zokuthenga.

FAQ

Q1.yintoni umahluko phakathi kwe-1785 L80C15 kunye ne-1785 L80B?

Zomibini zivela kwi-PLC - 5/80 iiprosesa zechungechunge, kodwa ukungafani okuthe ngqo okubandakanya inguqulo ye-hardware, ukulungelelaniswa konxibelelwano kunye nokusingqongileyo kwesicelo, kufuneka kuqinisekiswe ngokuhambelana nenkqubo.

Xa ukhetha, umntu kufuneka ajonge: imodeli yeprosesa yokuqala; uthungelwano lonxibelelwano; uqwalaselo lwenkqubo; ukuhambelana kwenkqubo.

Q2. Zeziphi iindlela zonxibelelwano ezixhaswayo? Eyona nkxaso iphambili PLC - 5system unxibelelwano, kuquka:

Uhola weDatha oDityanisiweyo (DH +)

I/O ekude

Inkxaso yokwenyani ixhomekeke kubume benkqubo.

Q3. Yeyiphi isoftware esetyenziselwa inkqubo?

Sebenzisa isoftware yeRSLogix 5 ukwenzela:

Ukuhlelwa kwenkqubo

Layisha/khuphela

Ukubekwa esweni kwi-Intanethi Ukuxilongwa kwempazamo

Q4. Ngaba kufuneka siyibhale kwakhona inkqubo emva kokutshintshwa?

Ngokuqhelekileyo, akukho mfuneko yokuphuhlisa inkqubo.

Ukuba kukho inkqubo yokugcina:

Khuphela inkqubo ye-PLC yokuqala,

Seta iiparamitha zonxibelelwano,

Jonga uqwalaselo lwe-I/O,

Yenza uvavanyo lokubaleka;

Emva koko inkqubo inokubuyiselwa.

Q5. Indlela yokufumanisa ukuba kukho into engalunganga?

Jonga i-CPU imo yesibane

Vavanya unxibelelwano lwe-PLC

Inkqubo yokuqinisekisa iyaqhutywa

Jonga impendulo ye-I/O

Inkqubo yokuhlola

Ukujonga inkangeleko:

Qinisekisa imodeli yemveliso, ileyibhile, iqokobhe, ujongano lugqityiwe, akukho monakalo ucacileyo.

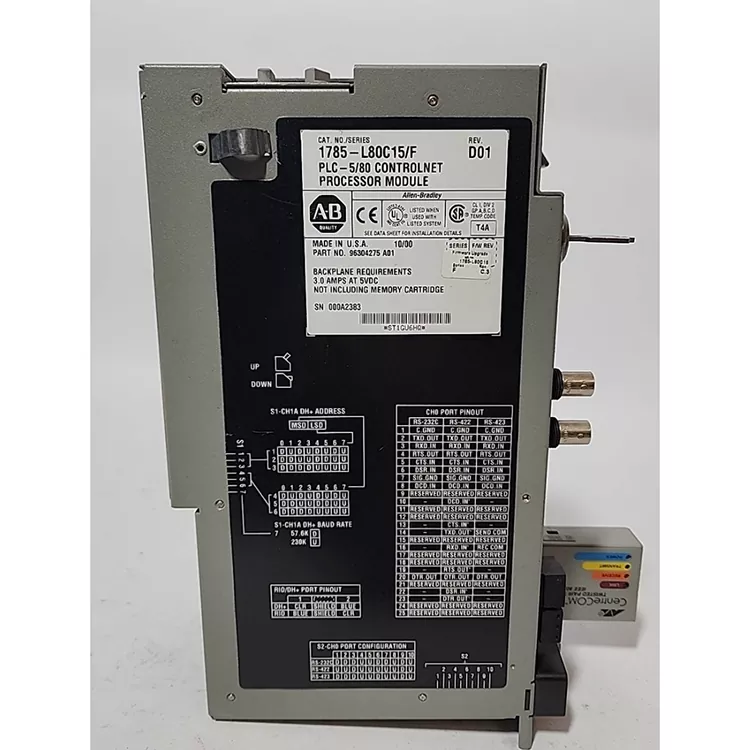

Ukuqinisekiswa komzekelo:

Jonga imodeli ka-Allen Bradley 1785 L80C15 , ulwazi lwehardware kunye nePLC - 5 inkqubo ehambelanayo.

Uvavanyo lombane:

Jonga imeko yamandla emodyuli, ubume be-CPU esebenzayo kunye nesibonisi sokukhanya kwesibonisi.

Uvavanyo lophawu:

Uvavanyo lokuqhuba, inkqubo yesicelo, ukuthetha, ukufunda nokubhala kunye nomsebenzi wonxibelelwano we-PLC.

Uvavanyo lonxibelelwano

Qinisekisa ukuba i-DH +, i-Remote I/O kunye nolunye uqhagamshelwano lonxibelelwano luqhelekile.

Ujongo lokuthumela ngenqanawe:

Rekhoda iziphumo zovavanyo, iifoto zemveliso kunye ne-anti-static, ukuthunyelwa kwepakethe eyothusayo.

Inkqubo yokuFakela

Inkqubo yokuqinisekisa:

Qinisekisa ukuba i-PLC-5 rack, imodyuli yamandla, inethiwekhi yonxibelelwano kunye nomdlalo wemodyuli.

Ukusebenza kwamandla:

Cima unikezelo lwamandla lwenkqubo yolawulo ukuqinisekisa indawo ekhuselekileyo yokufakela.

Ukuhlohla iModyuli:

Faka i-1785 L80C15 imodyuli yeprosesa ye-PLC - i-5 isakhelo esihambelana ne-slot, kunye noxhumo olusisigxina.

Umgca nonxibelelwano

Khangela uxhulumaniso lwasemva, qinisekisa i-DH + okanye i-Remote I/O imigca yonxibelelwano eqhagamshelwe ngokuchanekileyo.

Amandla eSistim avuliwe:

Layita amandla kwaye ujonge ukuba isalathisi sesimo seprosesa siqhelekile.

Ubumbeko lwesicelo kunye novavanyo:

Sebenzisa i-RSLogix 5 ukuxhuma kwiprosesa, ukukhuphela iinkqubo, kwaye ukhangele unxibelelwano kunye nemisebenzi yokulawula.

Qhuba uqinisekiso:

Qinisekisa ubume be-CPU esebenzayo, impendulo ye-I/O kunye nokusebenza kwesixhobo, kwaye ugqibezele ukufakela.

Isiqinisekiso seNkampani

Xa uphucula iprosesa eyekiweyo, zeziphi ezona ngxaki zixhaphakileyo? Inkampani iqhuba iziqinisekiso ezintathu kwi-Allen Bradley nganye 1785 L80C15 ngaphambi kokuthunyelwa ngalunye: uvavanyo lwexesha langempela lokuhambelana kweprogram endala, uvavanyo olupheleleyo lwe-ControlNet networking communication, kunye ne-72-iyure yovavanyo oluqhubekayo loxinzelelo loxinzelelo ukuze kuqinisekiswe ukuba inkqubo inokusebenza, inethiwekhi inokudibanisa, kwaye umsebenzi uzinzile.

Umthombo wangempela unokulandelwa, kwaye ukuba kukho ingxaki yomgangatho ngaphakathi kwexesha lewaranti, inokutshintshwa ngokuthe ngqo. Iinjineli zobuchwephesha zibonelela ngokutshintshelwa kwenkqubo yasimahla kunye nesikhokelo sothungelwano. Khetha umthengisi othembekileyo, kwaye ukuphuculwa komgca wemveliso kuqinisekisiwe.
