Allen Bradley 1785 L40E

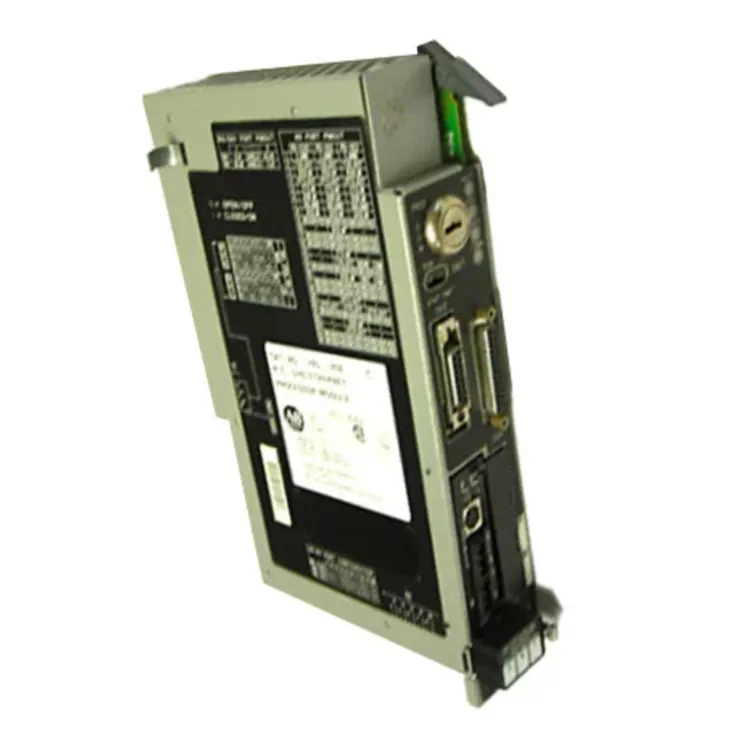

I-Allen Bradley 1785 L40E ixhotyiswe ngememori yeprogram ye-48K kwaye inojongano oluzimeleyo lonxibelelwano lwe-Ethernet. Iyahambelana ne-DH + kunye nenethiwekhi ye-IO ekude kwaye ixhasa ulawulo lwamanqaku omthamo omkhulu. Ngomnye weemodeli ezimbalwa eziphezulu kunye nechweba lomnatha kwi-PLC 5 series. Isetyenziswa ngokubanzi kwiinkqubo ezinkulu zolawulo oluzenzekelayo kumashishini afana nobunjineli bekhemikhali, izityalo zamandla, isinyithi, kunye neemoto. Njengababoneleli bemizi-mveliso abanqumla imida, i-Feimu Technology igxile kwimodyuli yokuvelisa ushicilelo ngaphandle kweklasi, ukuhlola, ukuvavanywa nokubonelela ngokuhambelana kwezixhobo zokhuseleko, unxibelelwano oluzinzile, ukusetyenziswa kwekhompyutha.

Inkqubo yokuFakela

Ukujonga amandla:

Vala ukunikezelwa kwamandla kwenkqubo ye-PLC kwaye uqinisekise ukuba i-rack kunye nomgca wonxibelelwano zikwimeko ekhuselekileyo.

Faka imodyuli yomqhubekekisi:

Faka i-Allen Bradley 1785 L40E PLC - 5 i-rack slot ehambelanayo, imodyuli esisigxina kwaye udibanise umva.

Imizila yoqhagamshelwano yoqhagamshelwano:

Ngokusekelwe kwimfuno yenkqubo yokudibanisa i-Ethernet kunye ne-DH + okanye i-Remote I / O i-interface yonxibelelwano.

Amandla kuVavanyo:

Vula unikezelo lwamandla, jonga ukukhanya kwesibonisi se-CPU, qinisekisa ukuba imodyuli eqhelekileyo yokuqalisa.

Ubumbeko lwesicelo:

Sebenzisa i-RSLogix 5 ukudibanisa iprosesa, khuphela inkqubo kwaye ukhangele i-I / O kunye neeparitha zonxibelelwano.

Yenza uvavanyo:

Ukuqinisekiswa konxibelelwano lwe-PLC kunye nemisebenzi yokulawula ukuphunyezwa kwenkqubo kunye nesayithi, qinisekisa ukusebenza okuqhelekileyo kwenkqubo.

FAQ

Q1. Yeyiphi idatha ekufuneka igcinwe phambi kokutshintshwa?

inkqubo yomsebenzisi we-PLC;

Iifayile zetafile yedatha;

I/O iiparamitha zoqwalaselo;

Useto lwenethiwekhi yonxibelelwano;

Iifayile zoqwalaselo lomprosesa.

Q2. Zeziphi iindlela zonxibelelwano ezixhaswayo?

Inkxaso ye-Ethernet, i-DH + (i-Data Highway Plus), i-Remote I / O, kunye ne-RS-232/422/423 yonxibelelwano lwe-serial. Iyakwazi ukudibanisa kwikhompyutheni ephezulu, i-I / O ekude kunye nezinye izixhobo ezizenzekelayo.

Q3. Yeyiphi inkqubo yesoftware esetyenziswayo?

Sebenzisa i-RSLogix 5 ukwenza, ukulayisha, ukukhuphela kunye nokubeka iliso kwinkqubo, kwaye usebenzise i-RSLinx yoqwalaselo lonxibelelwano.

Q4. Uyicombulula njani ingxaki xa unxibelelwano ne-PLC lusilela?

Jonga i-Ethernet/DH+ yonxibelelwano lwentambo yonxibelelwano;

Qinisekisa idilesi yendawo yenethiwekhi;

Jonga uqwalaselo lomqhubi we-RSLinx;

Qinisekisa ukuba ukukhanya kwesimo se-CPU siqhelekile;

Jonga imodyuli yonxibelelwano kunye noqwalaselo lweparameter yenethiwekhi.

Q5. Ukuphatha njani xa ukukhanya kwe-CPU kuvuliwe?

Jonga ikhowudi yempazamo yomqhubekekisi;

Qinisekisa ukuba kukho naziphi na iimpazamo kwinkqubo;

Jonga imeko yebhetri;

Zama ukulayisha kwakhona inkqubo esebenzayo;

Ukuba kuyimfuneko, yenza uvavanyo lokuxilonga lwe-CPU.

Iinkcazo zobuGcisa

Inzuzo engundoqo

1. Unxibelelwano lwe-Ethernet oludibeneyo

Ixhasa uqhagamshelo lwe-Ethernet yeshishini, iququzelela ukutshintshiselana kwedatha kunye neekhompyuter eziphezulu, iinkqubo zokubeka iliso, kunye nezinye izixhobo ezizenzekelayo.

2. Iyahambelana ne-PLC-5 yolawulo lwezakhiwo

Ingasetyenziselwa ngokuthe ngqo ukugcinwa kweenkqubo ze-PLC-5 ezikhoyo, ukunciphisa iindleko zokuphucula izixhobo.

3. Ikhono lokulawula i-I / O enamandla

Ixhasa ubungakanani obukhulu bedijithali kunye ne-analog ye-I / O yokwandiswa, efanelekileyo kwizicelo zolawulo olunzima.

4. Inkxaso yenethiwekhi ezininzi

Ihambelana ne-Ethernet, i-DH +, kunye neendlela zokunxibelelana ze-I / O ezikude, ukuphucula ukuguquguquka kokudibanisa inkqubo.

5. Yandisa umjikelo wobomi bezixhobo

Ifanelekile njengenxalenye yokutshintshwa kweenkqubo ze-PLC-5 ezindala, ezinceda ukugcina ukusebenza okuqhubekayo kwezixhobo zokuvelisa.

Iinkalo zesicelo

I-Allen Bradley 1785 L40E isetyenziswa ikakhulu kwi:

Ulawulo lomgca wemveliso oluzenzekelayo

Izixhobo zokwenza iimoto

Iinkqubo zoomatshini bokupakisha

Iinkqubo zokufumana idatha yefektri

Izixhobo zokulawula inkqubo

PLC-5 iiprojekthi zogcino lwenkqubo endala

Usetyenziso oluqhelekileyo:

Idibanisa inkqubo yokulawula ye-PLC kunye nezixhobo eziphezulu zokubeka iliso ngenethiwekhi ye-Ethernet ukufezekisa ukuhanjiswa kwedatha yemveliso kunye nokubeka iliso kwimeko yezixhobo.

Kutheni ukhetha thina?

Emva kokuthengisa kunye neenkonzo

Nikela:

Ukuqinisekiswa kokuhambelana kwemveliso

Isikhokelo sokufakela inkqubo ye-PLC-5

Inkxaso yoqwalaselo lonxibelelwano lwe-Ethernet

RSLogix 5 debugging isikhokelo

Inkxaso yohlalutyo lwempazamo

Izatifikethi kunye nokuqinisekiswa komgangatho

Inkqubo yokuvavanya imveliso: Ukuhlolwa okubonakalayo

Ukuqinisekiswa kwemodeli kunye ne-hardware version

Uvavanyo lokuqalisa amandla

Uvavanyo lobume bokusebenza kweCPU

Uvavanyo lonxibelelwano lwe-Ethernet/DH +

RSLogix 5 inkqubo yokufunda nokubhala uvavanyo

Uvavanyo lokuzinza kokusebenza kwexesha elide

Ubonelelo lonikezelo: Iirekhodi zokuhlolwa kwemveliso; Iifoto zomzimba; Iirekhodi zokuhlola ukupakishwa

Amatyala okwenene kunye novavanyo lwabathengi

Inkqubo yolawulo oluncedisayo yeplanti yamandla obushushu yamkele i-PLC-5 Ethernet yoyilo. Iyunithi yolawulo ephambili ka-Allen Bradley 1785 L40E obudala kwaye ayisebenzi kakuhle, kwaye kwakunzima ukufumana ababoneleli abathembekileyo kuyo yonke inethiwekhi. I-Feimud Technology ibonelele ngokuhlolwa okupheleleyo kweemveliso ezilungileyo zoqobo, ezazihambelana ngokugqibeleleyo nenkqubo yoqobo kunye noqwalaselo lwenethiwekhi, kwaye yasombulula ukusilela kwezixhobo ngexesha elinye, ukuqinisekisa ukuveliswa okukhuselekileyo kombane wombane.

Injineli ye-automation yeplanti yamandla: I-CPU endala enezibuko zenethiwekhi ye-L40E inqabile kakhulu. Xa kuthelekiswa nabanye abaninzi, kuphela unikezelo lweFeimud oluthembekileyo. Unxibelelwano kumatshini luzinzile, kwaye iingxelo zokuhlola zigqityiwe.
