Izixhobo zonxibelelwano ezifanelekileyo kwizicwangciso zemizi-mveliso. I-Allen Bradley 1784-PKTX yikhadi lonxibelelwano le-PCI yeekhompyuter zedesktop kunye nezixhobo zokulawula ishishini. Inokufakwa ngokuthe ngqo kwiikhompyuter zedesktop okanye izixhobo zolawulo lwamashishini, okwenza ikhomputha iseke unxibelelwano oluzinzileyo kunye nezixhobo zokusebenzela ze-PLC.
Nokuba yinethiwekhi yeDH+ eqhele ukusetyenziswa, i-RIO ekude ye-I/O, okanye iprothokholi zonxibelelwano oluqhelekileyo lwamashishini, eli khadi lothungelwano linokulungiswa ngokuzinzileyo kuzo zonke. Sisixhobo esibalulekileyo kwiinjineli zokucwangcisa kwisiza, ukulungisa iimpazamo, ukubeka iliso, kunye nokuqokelela idatha. Sigcina uluhlu olwaneleyo ukuqinisekisa ukuba akunyanzelekanga ukuba ulinde ngexesha lolungiso olungxamisekileyo okanye ukulungisa ingxaki yeprojekthi, kukuvumela ukuba uqalise kwakhona imveliso ngokukhawuleza.
Inzuzo ebalaseleyo ye-Allen Bradley 1784-PKTX yi-multi-interface yayo, iprotocol eninzi kunye nokuhambelana okuphezulu. Ngekhadi nje elinye, inokufikelela kwiimfuno ezahlukeneyo zonxibelelwano kwisiza, isusa imfuneko yokufaka amakhadi enethiwekhi ahlukeneyo ahlukeneyo kwi-chassis, ukwenza izixhobo zihlangane ngakumbi kunye nokunciphisa izinga lokungaphumeleli.
Ixhasa amanethiwekhi amashishini ahlukeneyo afana ne-DH + kunye ne-RIO (i-Remote I / O), kwaye inokulungiswa ngokukhawuleza ngokudibanisa ne-RSLinx Classic software. Inomlinganiselo ophantsi wokusetyenziswa kunye nozinzo olomeleleyo. Sibonelela kuphela ngomgangatho omtsha woqobo, silawula ngokungqongqo uMgangatho, ngaphandle kokulungiswa, ukulungiswa okanye iziphene ezifihliweyo. Nje ukuba ifakwe, inokuqhuba ngokuzinzileyo ngaphandle kweengxaki ezinjengokuphazamiseka konxibelelwano, ukulahleka kwepakethi okanye ukungaphumeleli koqhagamshelwano.

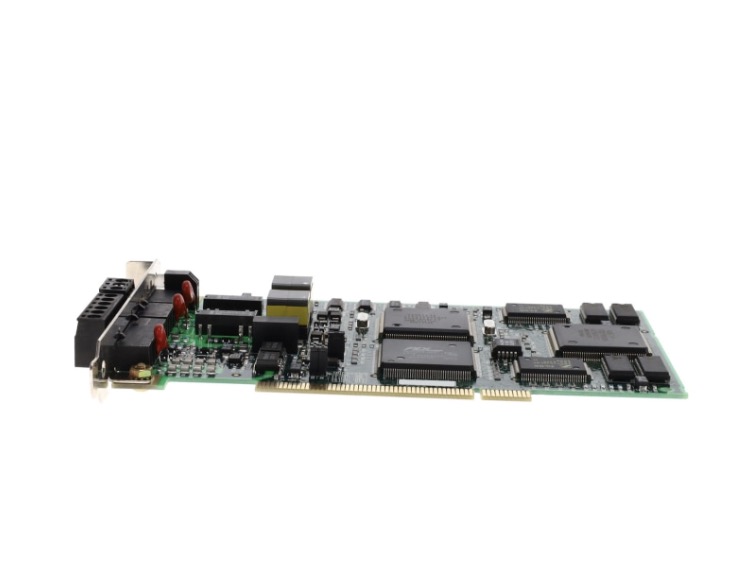

I-Allen Bradley 1784-PKTX yakhiwe ngesiseko sebhodi ye-fiberglass eshinyeneyo, enobunzima obuphezulu kunye nokumelana nokugoba. Olu luyilo lukhusela ngokufanelekileyo iisekethe zangaphakathi. Iminwe yegolide ekwibhodi inombala ongqindilili, oqinisekisa ukuhanjiswa olomeleleyo, ukuxhathisa kwi-oxidation, kunye nokuthintela ukusilela koqhagamshelwano. Zihlala zisebenza nangemva kokufaka ngokuphindaphindiweyo kunye nokususwa. Zonke ii-interfaces zixhotyiswe ngezakhiwo zokuqinisa isinyithi, zibenza zixhathise ukuxhuma ngokuphindaphindiweyo kunye nokukhupha kunye nokufanelekileyo kwiindawo zokusetyenziswa kwe-factory high-frequency.
Ipleyiti yomlindi ngumbala obomvu we-Rockwell, kunye nomsebenzi oqinileyo. Ukongeza umlindi wokuqinisa unokuyilungisa ngokuqinileyo kwiphaneli yangasemva ye-chassis, ukuthintela ukukhulula okanye ukuguquka ngenxa ye-vibration okanye i-wire tension. Ulwakhiwo lulonke luyilelwe ngokukodwa iifektri ezinothuli, ezingcangcazelayo, kunye neendawo ezihlala ziqhagamshelwana rhoqo. Ihlala izinzile kwaye inokwethenjelwa nangemva kokusebenza kwexesha elide kwaye inokulungelelaniswa ngokugqibeleleyo kwiikhabhinethi ezahlukeneyo zolawulo kunye neekhompyuter zoshishino kwindawo yeFactory.
I-Feimu Technology, njengoMboneleli onembali ende kwishishini lolawulo lwamashishini, unenkqubo epheleleyo yokugcina kunye nokuvavanya. U-Allen Bradley 1784-PKTX uyafumaneka kwisitokhwe kwaye uhanjiswe ngokuthe ngqo kuyo yonke le nkqubo. Iyakwazi ukuphendula ngokukhawuleza kwii-odolo zasekhaya nakwamanye amazwe.
Ixabiso liyabonakala kwaye lifanelekile. Ixabiso eliphantsi kwaye linokhuphiswano oluphezulu, livumela abathengi ukuba bafumane amakhadi othungelwano olukumgangatho ophezulu ngexabiso elifikelelekayo. Kumalungiselelo, samkela ukupakishwa kokhuselo olunamanqanaba amaninzi kubandakanya iingxowa ezichasene ne-static, amagwebu atyebileyo, kunye neebhokisi zekhadibhodi eziqinileyo. Ibonelela ngokhuseleko olupheleleyo ngokuchasene nokungcangcazela, i-anti-static, kunye nokugoba, iqinisekisa ukuba iimveliso zinokuhanjiswa zigqibelele nokuba zihamba ngolwandle okanye ngomoya.
Sineqela lobuchwephesha lobuchwephesha elinokubonelela ngesikhokelo kumatshini, ukufakwa komqhubi, ukucwangciswa konxibelelwano kunye nenye inkxaso. Nceda uqiniseke ukuba uthenge.
| Ipharamitha | Inkcazo |
|---|---|
| Umzekelo weMveliso | Allen Bradley 1784-PKTX |
| Bus Interface | I-PCI 32-bit (i-5V slot iyafuneka) |
| IiNethiwekhi ezixhaswayo | I-DH +, i-I / O ekude (RIO), i-DH-485 |
| Ujongano Lwenyama | DB-9 okanye RJ45 (kuxhomekeke kwikhadi lentombi) |
| Uqwalaselo lweSoftwe | RSLinx Classic |
| Ireyithi yokuTshintshela ye-DH+ | 57.6 kbps |
| Ixabiso lokuTshintshela i-RIO | 57.6 / 115.2 / 230.4 kbps |
| Iiprosesa ezihambelanayo | PLC-5, SLC 5/04, MicroLogix 1500 (DH+ uhlobo) |
| Ukuhambelana kweSoftware | RSLogix 5, RSLogix 500 |
| Ukutya umbane | 5V DC, 500mA eqhelekileyo |
| Ukuthotyelwa kwePCI | PCI 2.2 okanye kamva |
| Ubushushu bokusebenza | 0°C ukuya kuma-55°C |
| Ubushushu boGcino | -40°C ukuya kuma-85°C |
| Iziqinisekiso | UL, CUL, CE |
I-1784-PKTX ixhasa iinkqubo ezintathu zenethiwekhi. Iprotocol nganye isetyenziswa kwizicelo ezahlukeneyo.
| Uthungelwano | Isantya | IiNodi ezinkulu | Izixhobo eziqhelekileyo |
|---|---|---|---|
| DH+ (Datha Highway Plus) | 57.6 kbps | 64 iindawo | PLC-5, SLC 5/04, PanelView |
| I-RIO (I-I/O ekude) | 57.6 / 115.2 / 230.4 kbps | 32 iindawo | 1771 iirack ezikude, PLC-5 scanners |
| I-DH-485 | 19.2 kbps | 32 iindawo | SLC 5/03, MicroLogix 1200/1500 |
Isetyenziswa nini nganye:
I-1784-PKTX ifuna zombini ufakelo lwe-hardware kunye noqwalaselo lomqhubi. Landela la manyathelo ukuseta ngempumelelo.
Amanyathelo ofakelo lweHardware:
Amanyathelo ofakelo lomqhubi:
Amanyathelo aqhelekileyo okusombulula ingxaki:
I-1784-PKTX inezibonakaliso ze-LED kwi-bracket yangasemva. Ezi zibonelela ngolwazi lobume bothungelwano.
| I-LED | Ubume | Intsingiselo | Isenzo |
|---|---|---|---|
| PWR | Luhlaza (kwi) | Ikhadi linamandla. Ibhasi yePCI ibonelela ngamandla ombane. | Akukho ntshukumo ifunekayo. |
| PWR | Cimile | Akukho mandla kwikhadi. | Jonga slot PCI. Jonga amandla ekhompyuter. |
| LINK | Luhlaza (kwi) | Ikhonkco lothungelwano liyasebenza. Ikhebula iqhagamshelwe. | Akukho ntshukumo ifunekayo. |
| LINK | Cimile | Akukho linki yenethiwekhi. Ikhebula ayiqhagamshelwanga okanye akukho msebenzi wenethiwekhi. | Jonga uqhagamshelo lwentambo. Jonga isixhobo kwelinye icala. |
| TX/RX | Ukudanyaza | Ugqithiso lwedatha luyasebenza. | Akukho ntshukumo ifunekayo. Ukusebenza okuqhelekileyo. |
| Impazamo | Bomvu | Impazamo yekhadi okanye impazamo yonxibelelwano. | Jonga ubumbeko lomqhubi. Jonga intambo. Jonga idilesi yendawo. |
Allen Bradley 1784-PKTX amakhadi aqhele ukwenziwa umgunyathi. Sebenzisa olu vavanyo ukuqinisekisa ubunyani.
I-Feimu Technology ayithumeli amakhadi angavavanywanga. I-1784-PKTX nganye ihamba ngale nkqubo yokuqinisekisa ilandelayo ngaphambi kokushiya indawo yethu yokugcina.
Indlela yokuqwalasela umqhubi we-1784-PKTX kwi-RSLinx?
Qala i-RSLinx Classic, yiya kuNxibelelwano> Qwalasela imenyu yabaqhubi, khetha uhlobo lomqhubi kuluhlu lokuhla lweentlobo zomqhubi okhoyo, emva koko usete "Idilesi yeBhodi". Ungakhangela i-DH+ eqhagamshelweyo okanye i-DH-485 yesixhobo sothungelwano ngoNxibelelwano > RSWho. Inkxaso yobugcisa inokufumaneka ngathi.
Yintoni eyona njongo?
Ifakwe kwi-slot ye-PCI eqhelekileyo ye-5V yekhompyutheni yobuqu (i-PC), isetyenziselwa ukudibanisa i-PC kuthungelwano lwamashishini lwakudala lwe-Allen-Bradley ukuphumeza ukufunyanwa kwedatha, ukulayishwa kweprogram / ukukhuphela, ukubeka iliso kwi-intanethi, kunye nokuxilongwa kwempazamo.
Zeziphi iiprothokholi ezithile zonxibelelwano kunye nezixhobo ezixhaswayo?
Iiprothokholi zenethiwekhi:
Data Highway Plus (DH +), Remote I / O (RIO), DH-485.
Izixhobo eziqhelekileyo:
I-PLC-5 iprosesa, i-SLC 5/04 iprosesa, i-MicroLogix 1500 (uhlobo lwe-DH +), i-PanelView classic touch screen, njl.
Ukuhambelana kwesoftware:
Ngokuqwalasela umqhubi nge-RSLinx Classic software, inokusebenza ngokubambisana neprogram yeprogram efana ne-RSLogix 5, RSLogix 500.
