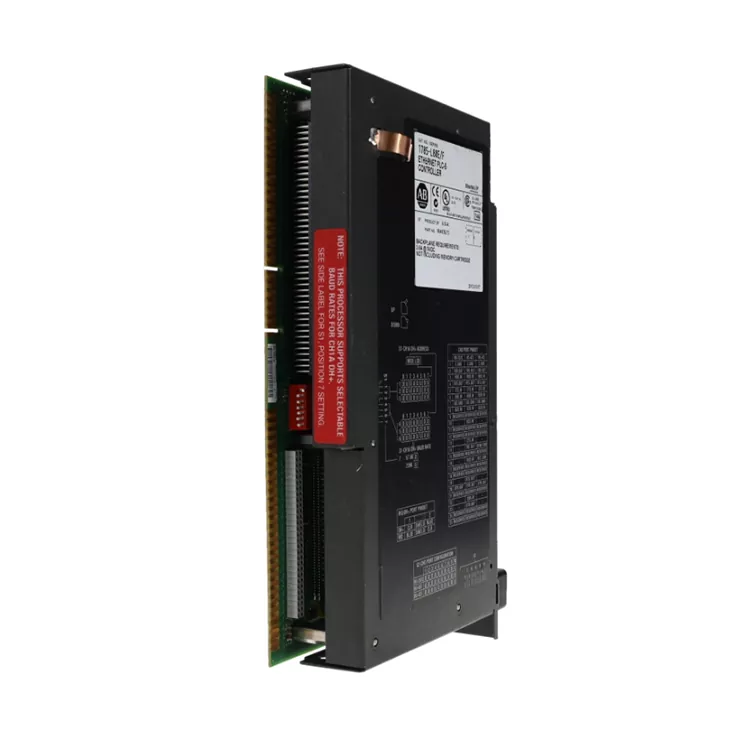

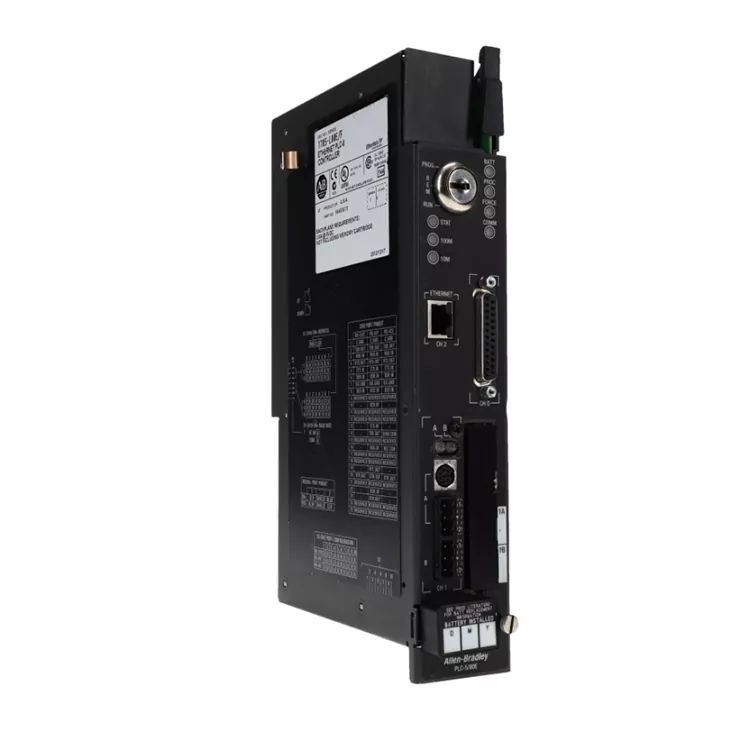

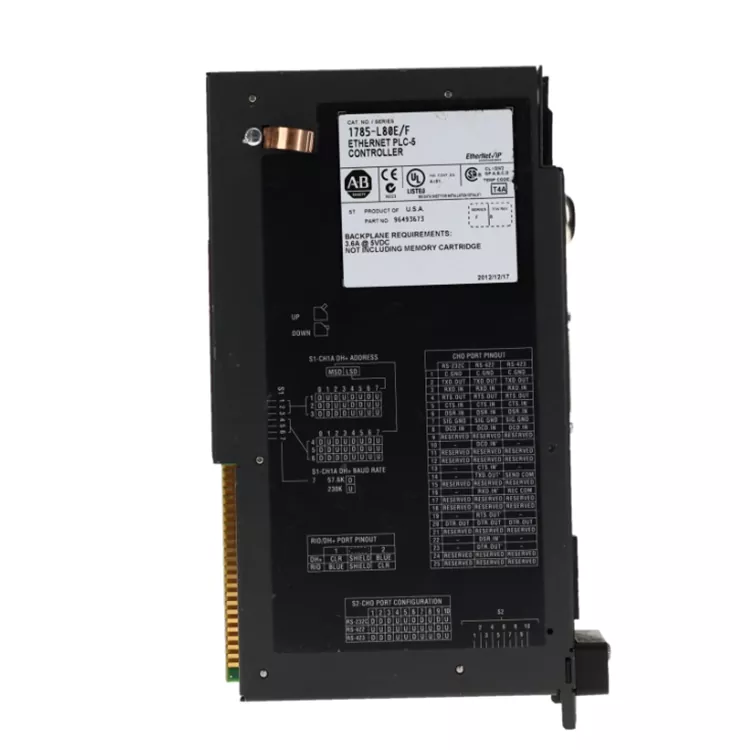

Allen Bradley 1785 L80E

Izixhobo ezidala kufuneka zidityaniswe nenkqubo yolwazi. Owona mba uyingxaki kukungahambelani konxibelelwano. I-Feimu Technology, njengomboneleli okumgangatho ophezulu onamava abanzi kuphuculo lwenethiwekhi yolawulo lwemizi-mveliso, ibonelela ngale Allen Bradley 1785 L80E ngojongano lwe-Ethernet. Iyakwazi ukudibanisa ngokuthe ngqo kwinethiwekhi yendawo yefektri ngokufaka intambo yenethiwekhi, ukuphelisa imfuno yesango lokuqokelela idatha kwikhompyutheni ephezulu kunye nenkqubo ye-MES.

Udweliso lwenkqubo olukude kunye nokulungiswa kweempazamo kunokwenziwa kwiofisi ngaphandle kokuya kwindawo. Ii-interfaces ezimbini ze-DH +/RIO zigcinwe, kwaye i-rack ye-I / O endala ingaqhubeka isetyenziswa. Kutshintsho lolwazi lwemigca yemveliso kumashishini afana neemoto, ukutya, kunye nokupakishwa, ukutshintsha nje iprosesa kunokusombulula ingxaki.

Iinzuzo eziphambili kunye namanqaku okuthengisa:

1. Ikhono lonxibelelwano lwe-Ethernet oludibeneyo

Xa kuthelekiswa neeprosesa ze-PLC-5 zesiqhelo, i-Allen Bradley 1785 L80E ixhasa unxibelelwano lwe-Ethernet, iyenza kube lula ukuqhagamshela:

Uthungelwano lwemizi-mveliso

Iinkqubo zokubeka iliso eziphezulu

Izixhobo zokucwangcisa

Iinkqubo zokufunyanwa kwedatha

2. Ifanelekile kwiinkqubo zolawulo olukhulu

Uthotho lwe-PLC-5/80E lufanelekile:

Imigca yemveliso emikhulu

Ulawulo lonxibelelwano lwezixhobo ezininzi

Ulawulo lwenkqubo yoshishino oluntsonkothileyo

Iyakwazi ukuhlangabezana neemfuno eziphezulu zokusetyenzwa kwedatha.

3. Ukwandisa umjikelo wobomi we-PLC-5

Kwizixhobo ze-PLC-5 zisasebenza:

Ukugcina inkqubo yolawulo lokuqala

Ukunciphisa iindleko zokulungiswa kwenkqubo

Ukunciphisa umngcipheko wexesha lokuphumla

Ifanelekile njengeendawo zokulondolozwa kweenkqubo ezizisebenzelayo eziphelelwe lixesha.

4. Ukufunyanwa kobuchwephesha kunye nenkxaso yobugcisa

Inkxaso yokuhanjiswa kwangaphambili ibandakanya:

Ukuqinisekiswa kwemodeli Ukuhlolwa okubonakalayo

Uvavanyo lwamandla

Uvavanyo lomsebenzi weCPU

Uvavanyo lonxibelelwano lwe-Ethernet

Uvavanyo lokufunda nokubhala inkqubo

Iinkcazo zobuGcisa

Iinkalo zesicelo

Ukwenziwa kosetyenziso oluzenzekelayo:

Ulawulo lomgca wemveliso oluzenzekelayo

Ulawulo lwe-interlock lwezixhobo

Ukufunyanwa kwedatha

Usetyenziso lweshishini lweemoto:

Ulawulo lomgca weNdibano

Inkqubo yokuhambisa

Ulawulo lwezixhobo zokuvelisa

Usetyenziso lweshishini lamandla:

Inkqubo yokubeka iliso

Isikhululo solawulo oluzenzekelayo

Lungiselela izicelo zeshishini:

Ulawulo lwemveliso oluqhubekayo

Ulawulo lwepharamitha yenkqubo

FAQ

Q1. Yeyiphi isoftware esetyenziselwe ukudweliswa kwenkqubo?

U-Allen Bradley 1785 L80E usebenzise isoftwe ye-RSLogix 5 ukwenzela:

Ukuhlelwa kwenkqubo

Khuphela/layisha

Ukubekwa esweni kwi-Intanethi Ukuxilongwa kwempazamo

Q2. Ngaba ukuguqula iprosesa kufuna utshintsho lwenkqubo?

Ngokuqhelekileyo, akukho mfuneko yokuphuhlisa kwakhona inkqubo yokulawula, kodwa iiparitha zonxibelelwano kufuneka zihlengahlengiswe ngokuhambelana nokucwangciswa kwenethiwekhi yendawo, kwaye imeko yokusebenza kwenkqubo kufuneka iphinde iqinisekiswe.

Q3. Ukuqinisekisa njani ukuba iprosesa iqhelekile?

Uvavanyo lokubonelela ngombane

Ukukhangela ubume beCPU

Uvavanyo lonxibelelwano lwe-Ethernet

Uvavanyo lokufunda nokubhala inkqubo

Qinisekisa ukusebenza kwemodyuli.

Q4. Ngaba oku kukulungele ukugcinwa kweenkqubo ze-PLC ezindala?

Ifanelekile. Imodyuli inokunceda amashishini aqhubeke nokusebenzisa inkqubo yokulawula ye-PLC-5, ukunciphisa ixabiso elipheleleyo lokuphucula kunye nokwandisa umjikelo wobomi bezixhobo.

Inkqubo yokuhlola

Ukujonga inkangeleko:

Qinisekisa iqokobhe lemodyuli, ileyibhile, kunye nobume bojongano.

Ukuqinisekiswa komzekelo:

Jonga imodeli ye-1785 L80E kunye nolwazi lwe-hardware.

Uvavanyo lombane:

Jonga isiqalo se-CPU kunye nesalathisi sesimo.

Uvavanyo lophawu:

Inkqubo yokuqinisekisa iyaqhuba, umsebenzi wokulungisa idatha.

Uvavanyo lonxibelelwano

Vavanya i-Ethernet, i-DH + umsebenzi wonxibelelwano.

Ukuhlolwa kokupakisha:

Hambisa emva kokubonelela ngeerekhodi zovavanyo kunye neefoto zemveliso.

Ubomi benkonzo ye

Imodyuli yeprosesa ye-Allen Bradley 1785 L80E PLC-5/80E yenzelwe ushishino lwexesha elide, kwaye ubomi benkonzo obuyinyani buhlala buxhomekeke kwindawo yokusebenza, ukugcinwa, kunye nomthwalo wenkqubo.

Ubomi benkonzo yoyilo: malunga ne-10 ~ 15 iminyaka

Gcina imo engqongileyo elungileyo: ukubaleka ngokuzinzileyo iminyaka eli-15 ukuya kuma-20 nangaphezulu

Izinto eziphambili ezichaphazela ubomi benkonzo:

Iingcebiso zokwandisa ubomi benkonzo:

Gcina umoya kunye nobushushu bekhabhinethi yolawulo buzinzile

Gcina inkqubo ye-PLC rhoqo

Jonga unikezelo lwamandla kunye nonxibelelwano

Uluhlu lwezinto ezisetyenzisiweyo ezingundoqo

Rhoqo jonga ubume bokusebenza beemodyuli

Isiqinisekiso seNkampani

Thenga iprosesa ye-Ethernet yemveliso, idatha kwezona zinto zoyika kakhulu ukubuyisela ukuze kungabikho ukuzinza. Inkampani nganye i-1785 L80E iphuma kwindawo yokugcina impahla emva kwemilinganiselo emithathu: unxibelelwano lwe-Ethernet ukuqinisekiswa okupheleleyo, i-DH + kunye ne-Ethernet uvavanyo lwe-interworking network kabini, iiyure ze-72 zekopi yokusebenza eqhubekayo, ukuqinisekisa ukuba i-port yenethiwekhi, ukuzinza kwedatha, musa ukulahla.

Umthombo wangempela unokulandelwa, kwaye ukuba kukho ingxaki yomgangatho ngaphakathi kwexesha lewaranti, inokutshintshwa ngokuthe ngqo. Iinjineli zobuchwephesha zibonelela ngokucwangciswa kwenethiwekhi yasimahla kunye nesikhokelo sothungelwano. Khetha umthengisi othembekileyo, kwaye ulwazi lwemigca yemveliso yakudala luqinisekisiwe.
