Ngaba u-Allen Bradley 2711P-T6C20D uyiphucula njani iNtsebenzo ye-HMI yoShishino kunye nokusebenza ngokufanelekileyo koMsebenzi?

Isishwankathelo seNqaku

Iinkqubo zanamhlanje ezizenzekelayo zoshishino zifuna i-interfaces ethembekileyo yabantu (i-HMIs) enokubonelela ngokubonakalayo okucacileyo, ukuphendula ngokukhawuleza, kunye nonxibelelwano oluzinzileyo phakathi kwabaqhubi kunye nezixhobo zokulawula. IAllen Bradley 2711P-T6C20DItheminali yePanelView Plus 6 yenzelwe ukuxhasa ukubekwa esweni komatshini kunye nolawulo olululo kwiimeko zoshishino. Eli nqaku licacisa indlela esi sisombululo se-HMI sibanceda ngayo abavelisi ukuba boyise imiceli mngeni yokusebenza eqhelekileyo, baphucule imveliso, kwaye bagcine iinkqubo ezizisebenzelayo ezithembekileyo.

Isiqulatho

• 1. Intshayelelo ka-Allen Bradley 2711P-T6C20D
• 2. Imingeni ye-HMI yoShishino oluqhelekileyo kunye nezisombululo
• 3. Iimpawu eziphambili ezenza u-Allen Bradley 2711P-T6C20D asebenze
• 4. Izicelo zoShishino zika-Allen Bradley 2711P-T6C20D
• 5. Indlela yokwandisa ukusebenza ngexesha loFakelo kunye nokusebenza
• 6. Iingcebiso zoLondolozo lokuthembeka kwexesha elide
• 7. Imibuzo Ebuzwa Rhoqo

Intshayelelo ka-Allen Bradley 2711P-T6C20D

I-Automation ye-Industrial ixhomekeke kutshintshiselwano oluchanekileyo phakathi koomatshini, abalawuli kunye nabaqhubi. Xa izixhobo zokuvelisa ziba nzima ngakumbi, abaqhubi bafuna i-interface enembile evumela ukuba babeke iliso kwimeko yomatshini, balungise iiparamitha, kwaye baphendule ngokukhawuleza kwiimeko ezingaqhelekanga.

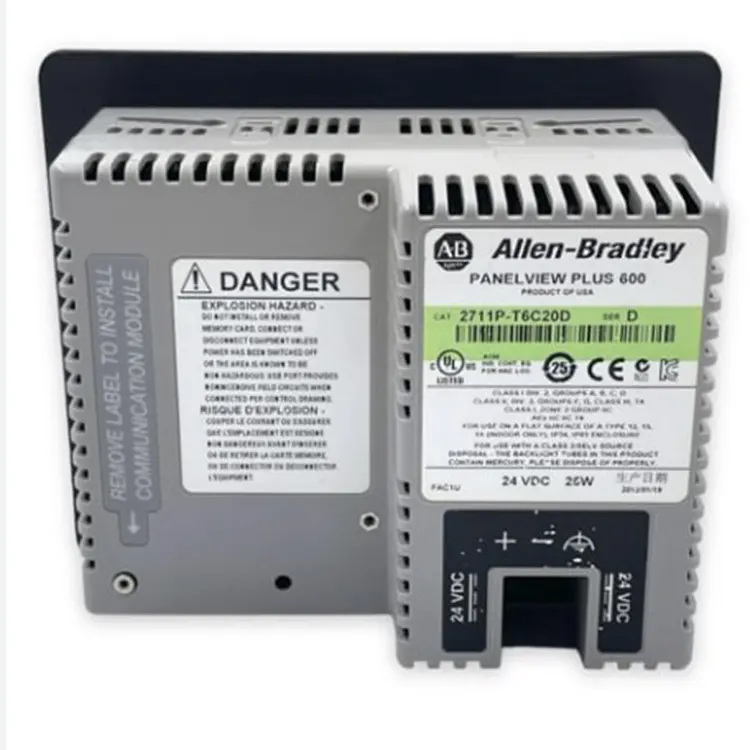

I-Allen Bradley 2711P-T6C20D yiPanelView Plus 6 600 series HMI terminal ephuhliselwe ukubonwa kwezoshishino kunye nokulawula izicelo. Inika i-compact touchscreen interface kunye nekhono lokubonisa umbala, ukuguquguquka konxibelelwano, kunye nokuhambelana neenkqubo zokulawula ishishini. Isixhobo sisetyenziswa ngokubanzi kwimigca yokuvelisa, kumashishini enkqubo, izixhobo zokupakisha, kunye neenkqubo zokuvelisa ezizenzekelayo.

Ngokweenkcazo zobugcisa zePanelView Plus 6 series, i-2711P-T6C20D ibonisa umbala we-5.7-intshi esebenzayo-matrix TFT ukubonisa, ukusebenza kwesikrini sokuchukumisa, i-Ethernet kunye ne-RS-232 iinketho zonxibelelwano, kunye nokufakwa kwamandla e-DC. Ezi mpawu zivumela abaqhubi ukuba basebenzisane kunye neenkqubo ezizenzekelayo ngokufanelekileyo ngelixa begcina unxibelelwano oluzinzileyo lwezoshishino.

I-Feimu ibonelela ngezisombululo ezizisebenzelayo zeshishini kwaye inceda abathengi ukuba bakhethe i-PLC efanelekileyo, i-HMI, kunye nezinto ezizenzekelayo ngokweemfuno ezahlukeneyo zesicelo.

Imingeni ye-HMI yoShishino oluqhelekileyo kunye nezisombululo

Iifektri ezininzi zifumana iingxaki ezifanayo xa zikhetha okanye ziphucula izixhobo zeHMI. Ukungaboni kakuhle, ukuphendula ngokukhawuleza, kunye nokungazinzi konxibelelwano kunokuchaphazela ngokuthe ngqo ukusebenza kwemveliso.

I-Allen Bradley 2711P-T6C20D inceda ekusombululeni le mingeni ngokudityaniswa koyilo oluthembekileyo lwehardware kunye nemisebenzi eyenziwayo yoshishino.

• Umngeni woku-1: Kunzima ukubeka iliso koomatshini
  Abaqhubi bafuna ulwazi lwexesha lokwenyani malunga nobume besixhobo. Ngaphandle kojongano olucacileyo, ukuchonga iingxaki kunokuthatha ixesha elingakumbi kwaye kwandise ixesha lokuphumla.
• Isisombululo:
  Umboniso we-TFT wombala ubonelela ngolwazi olucacileyo lomzobo, ovumela abaqhubi ukuba baqonde ngokukhawuleza iimeko zomatshini kunye neeparitha zokusebenza.
• Umngeni wesi-2: Iinkqubo zokusebenza ezintsonkothileyo
  Iindlela zolawulo lwemveli zinokufuna amanyathelo amaninzi okwenziwa ngesandla, ukwandisa amathuba okuba neempazamo zokusebenza.
• Isisombululo:
  Ujongano lwescreen esichukumisayo lwenza lula ukusebenzisana komatshini kwaye lubonelela ngendlela elula yokulawula imisebenzi yokuzenzekelayo.
• Umngeni wesi-3: Imiba yokuhambelana nonxibelelwano
  Izixhobo ezahlukeneyo zemizi-mveliso zihlala zifuna iindlela zonxibelelwano eziguquguqukayo.
• Isisombululo:
  I-Allen Bradley 2711P-T6C20D isekela i-interfaces yonxibelelwano lwezoshishino kuquka i-Ethernet kunye ne-RS-232, inceda ukudibanisa kunye neenethiwekhi ezizenzekelayo ezikhoyo.

Iimpawu eziphambili Ezenza u-Allen Bradley 2711P-T6C20D asebenze

Ukukhetha i-HMI yoshishino kufuna ukuqwalaselwa ngononophelo kokubonisa ukusebenza, amandla onxibelelwano, ukuqina, kunye nokuhambelana kwesoftware. I-Allen Bradley 2711P-T6C20D ibonelela ngeenzuzo ezininzi kubasebenzisi bemizi-mveliso.

1. ISiboniso soMbala esicacileyo sokuBonelwa ngcono

Omnye weyona misebenzi ibalulekileyo ye-HMI kukunikela ulwazi ngokucacileyo. I-2711P-T6C20D isebenzisa umboniso we-TFT osebenzayo-matrix ovumela abaqhubi ukuba bajonge isimo somatshini, i-alamu, ixabiso lenkqubo, kunye nemiyalelo yokusebenza ngokufanelekileyo.

Ukubonwa okungcono kunciphisa ixesha lokusombulula ingxaki kuba abaqhubi banokuchonga iimeko zezixhobo ngokukhawuleza. Kumashishini apho umzuzu ngamnye wexesha lokuphumla uchaphazela iindleko zemveliso, ukubonisa ulwazi olusebenzayo luba luxabiso kakhulu.

2. Ukusebenza kwescreen seTouchscreen

Uyilo lwescreen esichukumisayo lubonelela ngendlela elula nethe ngqo yokunxibelelana. Abasebenzisi banokuhlengahlengisa useto, bajonge iimenyu, kwaye bafikelele kulwazi lomatshini ngaphandle kwezixhobo ezongezelelweyo zokufaka.

Itekhnoloji yokuthintela isikrini ifanelekile kwiindawo zoshishino kuba inokusebenza ngokuthembekileyo kwiimeko ezahlukeneyo zokusebenza. :contentReference[oaicite:2]{index=2}

3. I-Flexible Industrial Communication

Iifektri zanamhlanje zihlala zinezixhobo ezininzi ezizenzekelayo, kubandakanya ii-PLC, izinzwa, iidrive, kunye nabalawuli. Ukuhambelana konxibelelwano kubalulekile ekwakheni inkqubo yolawulo esebenzayo.

I-Allen Bradley 2711P-T6C20D isekela i-Ethernet kunye nonxibelelwano lwe-serial, inceda ukudibanisa i-HMI kunye nezixhobo zokuzenzekelayo zoshishino kunye nokuphucula ukuhlanganiswa kwenkqubo. :contentReference[oaicite:3]{index=3}

4. Uyilo oluCwangcisiweyo loFakelo lokuGcina iSithuba

Iiphaneli zolawulo lwefektri zihlala zinendawo enyiniweyo yokufakela. I-HMI edibeneyo ivumela abavelisi ukuba bagcine imisebenzi yokulawula esebenzayo ngaphandle kokufuna iikhabhinethi zezixhobo ezinkulu.

Ifomathi ye-series ye-600 ibonelela ngokulinganisela phakathi kokubonakala kwesikrini kunye nokulungelelaniswa kofakelo, okwenza kube lula kwizicelo zoomatshini ezahlukeneyo.

Usetyenziso lwezoShishino luka-Allen Bradley 2711P-T6C20D

Ukuguquguquka kwe-Allen Bradley 2711P-T6C20D kwenza ukuba ifaneleke kumacandelo amaninzi amashishini.

• Izixhobo zokuvelisa
  Isetyenziselwa ukubeka iliso koomatshini bokuvelisa, ukulungelelanisa iiparamitha zokusebenza, kunye nokubonisa isimo somatshini.
• Iinkqubo zokuPakisha
  Inceda abaqhubi balawule iinkqubo zokupakisha, ukubeka iliso kwisantya semveliso, nokulawula ii-alam.
• Inkqubo Automation
  Ibonelela ngemisebenzi yokujonga ubushushu, uxinzelelo, ukuhamba, kunye nezinye izinto eziguquguqukayo zenkqubo.
• Iinkqubo zokuphatha izinto eziphathekayo
  Ixhasa ulawulo lwezixhobo kunye nokuphucula ukusebenza kakuhle kwiinkqubo zothutho ezizenzekelayo.

Indlela yokwandisa ukusebenza ngexesha loFakelo kunye nokusebenza

Ufakelo olufanelekileyo lubalulekile ekufezekiseni ukusebenza kwe-HMI ezinzileyo. Abasebenzisi kufuneka baqwalasele izinto ezininzi ngaphambi kokudibanisa i-Allen Bradley 2711P-T6C20D kwi-automation system.

• Qinisekisa iimfuno zamandla kwaye uqinisekise unikezelo lombane oluzinzileyo lweDC.
• Sebenzisa iintambo zonxibelelwano ezifanelekileyo kwaye ulandele imigangatho yocingo lweshishini.
• Khusela isixhobo kwintshukumo egqithisileyo, ukufuma, kunye nezingcolisi.
• Qwalasela useto lwesoftware ngokuchanekileyo phambi kokudibanisa i-terminal kwisixhobo sokuvelisa.
• Qeqesha abaqhubi ukuba basebenzise imisebenzi yojongano ngokufanelekileyo.

Inkqubo yokufakela ecwangcisiweyo inciphisa ukungaphumeleli okungalindelekanga kwaye iphucula ubomi benkonzo yezixhobo ezizenzekelayo.

Iingcebiso zoLondolozo lokuthembeka kwexesha elide

Ukugcinwa rhoqo kunceda ukugcina ii-HMI zemizi-mveliso zisebenza ngokufanelekileyo. Iinkqubo ezicetyiswayo ziquka:

• Coca umphezulu wescreen esichukumisayo rhoqo ukugcina ukuchaneka kokusebenza.
• Jonga unxibelelwano lonxibelelwano ngamaxesha athile.
• Gcina iifayile zesicelo seHMI ukuthintela ukulahleka kwedatha.
• Ukubeka iliso kwinkqubo yokusebenza kunye nedilesi yemiyalezo yesilumkiso ngokukhawuleza.
• Gcina okusingqongileyo ngaphakathi kweemeko zokusebenza ezicetyiswayo.

Ukugcinwa kothintelo kuvumela iifektri ukuba ziphephe ixesha elingeyomfuneko kwaye zigcine imisebenzi eqhubekayo yokuvelisa.

Imibuzo ebuzwa qho

UAllen Bradley 2711P-T6C20D usetyenziselwa ntoni?

U-Allen Bradley 2711P-T6C20D yi-terminal ye-HMI ye-industrial esetyenziselwa ukubeka iliso kumatshini, ulawulo lwabaqhubi, kunye nokubonwa kwiinkqubo zokuzenzekelayo.

Loluphi uhlobo lwesiboniso olunaso i-2711P-T6C20D?

I-terminal isebenzisa i-5.7-intshi yombala osebenzayo-matrix we-TFT umboniso olungiselelwe usetyenziso lokubonwa kwemizi-mveliso. :contentReference[oaicite:4]{index=4}

Ngaba u-Allen Bradley 2711P-T6C20D unxibelelana neenkqubo zePLC?

Ewe. I-terminal isekela iindlela zokunxibelelana kwezoshishino ezifana ne-Ethernet kunye ne-RS-232, evumela ukuhlanganiswa kunye neenkqubo zokulawula ezihambelanayo.

Kutheni ukhetha iFeimu yeemveliso ezizenzekelayo zika-Allen Bradley?

I-Feimu igxile ekuboneleleni ngamacandelo athembekileyo omatshini kunye neenkonzo zenkxaso yobungcali. Abathengi banokufumana iingcebiso ezifanelekileyo zemveliso ngokusekelwe kwiimfuno zabo zesicelo.

Ukuqukumbela

I-Allen Bradley 2711P-T6C20D inikezela ngesisombululo esisebenzayo kubavelisi abafuna ukuphucula ukusebenzisana komatshini, ukusebenza kakuhle, kunye nokuthembeka kokuzenzekelayo. Ngombala wayo wesikrini esichukumisayo, ukukwazi ukunxibelelana okuguquguqukayo, kunye noyilo olujolise kwimizi-mveliso, le terminal ye-HMI inceda amashishini enze iinkqubo zokulawula ezisebenzayo nezithembekileyo.

Ingaba ukuphucula izixhobo ezikhoyo okanye ukuphuhlisa iiprojekthi ezizenzekelayo ezizenzekelayo, ukukhetha i-HMI efanelekileyo kubalulekile ekufezekiseni ukusebenza okuzinzileyo kunye nemveliso yexesha elide.Feimuibonelela ngezisombululo ezizisebenzelayo zobuchwephesha kunye noncedo lobugcisa ukunceda abathengi bakhe iinkqubo ezisebenzayo zolawulo lwemizi-mveliso.Qhagamshelana nathinamhlanje ukufumana inkxaso elungiselelwe iimfuno zakho ezizenzekelayo.
