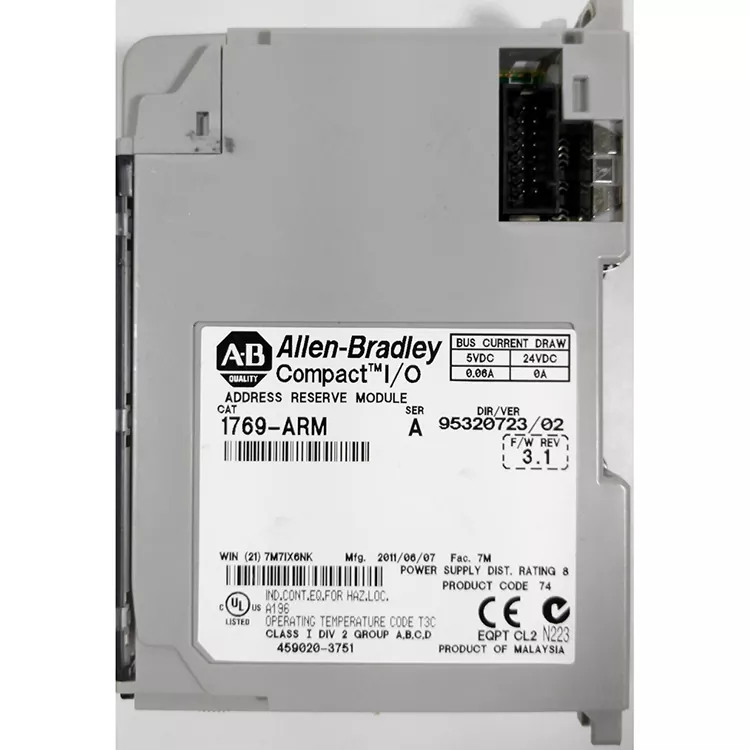

I-Allen Bradley 1769 ARM isetyenziselwa ukutshixa idilesi ye-I/O yendawo yokubeka, iqinisekisa ukuba ubumbeko lwenkqubo aludingi kuguqulwa xa kutshintshwa okanye kusandiswa ihardware. Isetyenziswa ngokubanzi kunyango lwamanzi aphesheya, ukupakishwa, kunye nezixhobo zokuvelisa kunye ne-inventory. Njengomboneleli oqeqeshiweyo kwiimarike zaphesheya, i-Feimu Technology yenza ukuchongwa kwenqwelo-moya kunye novavanyo loqhagamshelwano kuzo zonke iimveliso ezingenayo, ijonga ukuguga kwabantu, ihlaziywe kwaye ilungiswe iimpahla, kwaye iimpahla zinokufakelwa ngqo kwaye zisetyenziswe, ezihlangabezana neemfuno zokutshintshwa ngokukhawuleza kweefektri zaphesheya kweelwandle.

Iinzuzo eziphambili

Gcina idilesi ye-I / O indawo: kwiimodyuli ze-I / O zenyani azifakwanga okwethutyana ukugcina idilesi yenkqubo.

Ukwandiswa kwenkqubo elula: emva kwexesha ukunyusa imodyuli ye-I / O, inokunciphisa iidilesi iziphumo zokwabiwa kwakhona.

Ukugcinwa lula: ilungele indawo yoshishino yemodyuli esuswe okwethutyana okanye yatshintshwa.

Ukuphucula ukuhambelana: inkqubo ekhoyo yokulawula inceda ukugcina isakhiwo sedilesi ye-I / O.

Ulwakhiwo lwangaphakathi

Njenge-adaptha ye-DeviceNet, i-Allen Bradley 1769 ADN iquka ubukhulu becala ujongano lonxibelelwano, iisekethe zolawulo lokucubungula, ujongano lwebhasi ye-I/O, unikezelo lwamandla kunye neesekethe zokukhusela. Zonke iinxalenye zisebenza kunye ukugqiba utshintshiselwano lwedatha phakathi kwenethiwekhi ye-DeviceNet kunye nenkqubo ye-1769 Compact I / O.

Inkqubo yomsebenzi:

Inethiwekhi yeDeviceNet → ujongano lonxibelelwano → Iprothokholi/isekethe yolawulo → 1769 I/O ibhasi → I/O imodyuli → Isixhobo sendawo

Iiparamitha ezibalulekileyo

FAQ

Q1. Ngaba inokutshintshwa ngokuthe ngqo kwimodyuli ye-I/O eqhelekileyo?

Hayi, ayinakuthatyathelwa indawo ngokulula. Umsebenzi we-Allen Bradley 1769 ARM kukugcina iidilesi, okwahlukileyo kwimisebenzi yeemodyuli zedijithali kunye ne-analog I/O.

Q2. Inkqubo ye-PLC inokusebenza?

Awukwazi. Akuyona i-CPU, kodwa isetyenziselwa ulawulo lwedilesi ye-I/O kunye noqwalaselo lwenkqubo yemodyuli encedisayo.

Q3. Ngokwenene I/O channel?

Hayi, umsebenzi wayo oyintloko kukugcina indawo yedilesi kwaye ayiboneleli ngedijithali okanye i-analog I / O.

Q4. Xa kufuneka usebenzise?

Le modyuli ingasetyenziselwa xa inkqubo ifuna ukugcina okwethutyana indawo yedilesi ye-1769 I / O okanye izicwangciso zokongeza iimodyuli zangempela ze-I / O kamva.

Q5. Ngaba ufuna ukuqwalasela i-I/O emva kofakelo?

Kufuneka imiselwe ngokweemfuno zenkqubo ethile yeCompactLogix kunye nokucwangciswa komlawuli, inokuchonga ngokuchanekileyo kwaye iqinisekise imodyuli yomlawuli kwisakhiwo senkqubo.

Inkqubo yokuhlola

1. Ukujonga inkangeleko → Jonga ukuba ingaba iqokobhe, ujongano, izikrufu kunye neelebhile zikwimeko entle.

2. Khangela imodeli → Qinisekisa ukuba imodeli yeplate yegama, uthotho kunye nolunye ulwazi luyahambelana nomyalelo.

3. Uvavanyo lwamandla → Jonga ukukhanya kwesalathisi kunye nemodyuli esebenzayo.

4. Uvavanyo lonxibelelwano → Fikelela kwinethiwekhi yeDeviceNet ukuze uqinisekise ukuba unxibelelwano kunye ne-I/O yotshintshiselwano lwedatha yinto eqhelekileyo.

5. Ukuqinisekiswa kweSoftware → Sebenzisa isoftware yeRockwell ukujonga ukuchongwa kunye nemeko yempazamo yesixhobo.

6. Rekhoda iziphumo → Thatha iifoto zezinto eziphathekayo, i-nameplate kunye nenkqubo yokuvavanya, yenza irekhodi yokuhlola kwaye upakishe iimpahla zokuhanjiswa.

Iinkalo zesicelo

Umgca wokuvelisa ngokuzenzekelayo: ubeke ecaleni kwindawo yokwandisa i-I / O yexesha elizayo, ilungele kamva ukwandisa i-sensor kunye ne-actuators.

Izixhobo zokupakisha: izixhobo ezikwinqanaba loyilo lwedilesi ye-I / O egciniweyo, emva kwexesha ukunciphisa ukuphuculwa kwe-hardware kwimpembelelo yeprogram yokulawula.

Inkqubo yokuhanjiswa kwezinto: Gcina izithuba zemodyuli ukongezwa okulandelayo kwamanqaku okubona, iziguquli zefrikhwensi, okanye ii-activators.

Ukuphuculwa kwezixhobo zoomatshini: Susa iimodyuli ezindala okanye ukungabikho kwemodyuli yokutshintsha okwethutyana, kwaye ugcine idilesi ye-I / O yasekuqaleni.

Iinkqubo ezinkulu zolawulo lweCompactLogix: Ukusetyenziswa kwesakhiwo esisemgangathweni se-I/O ukuququzelela ukwandiswa nokugcinwa kwezixhobo.

Amatyala abathengi kunye novavanyo

Umenzi wezixhobo zokucocwa kwamanzi phesheya kolwandle, imodyuli ye-ARM ye-1769 elungiselelwe yifektri yokuqala yonakele, kwaye iidilesi ze-I / O zatshintshwa emva kokususwa, okubangela ukuba izixhobo zihlale zilumkisa. Bathenge imodyuli yokuqala evavanyiweyo kunye nokulinganisa kwi-Feimu Technology, bagqiba ukuhanjiswa komda, kwaye imephu ye-I / O yabuyiselwa, iphelisa i-alamu yezixhobo.

Umthengi: Le modyuli yokugcina idilesi kunzima ukuyithenga. Iimpahla ziye zavavanywa ngokupheleleyo kwaye azifuni ukuguqulwa kwenkqubo ukusombulula iimpazamo zethu zemephu ye-I/O.

Kutheni ukhethe thina

Gxininisa kubonelelo lwehlabathi jikelele lweendawo ezinqabileyo ze-Rockwell Compact I/O uthotho, lawula ngokungqongqo imithombo yobonelelo, kwaye uthintele iimveliso zomgunyathi kunye nezihlaziyiweyo ukuba zingaphumi. Into nganye iza nerekhodi yovavanyo kwaye ixhasa i-multi-channel logistics international. Inokudityaniswa kunye nesethi epheleleyo yamaxwebhu amasiko orhwebo lwangaphandle. Uqhelene neemeko zokulondolozwa kwezixhobo zaphesheya, inokubonelela ngeempendulo zobugcisa ezisisiseko ukunceda abathengi baphesheya ngokukhawuleza ukusombulula iimpazamo ezingaqhelekanga ze-slot kunye nokunciphisa ixesha lokuphumla kwezixhobo.

Inkqubo yokuFakela

1. Uqinisekiso lweNkqubo: Qinisekisa ukuba u-Allen Bradley 1769 ARM uyahambelana nenkqubo yeCompactLogix 1769 I/O.

2. Amandla enkqubo avaliwe: cima amandla omlawuli kunye nenkqubo ye-I / O.

3. Ukugqiba indawo yokufakela: ngokwesicwangciso sedilesi ye-I / O yasekuqaleni, iya kuba yi-1769 - i-ARM efakwe kwindawo echaziweyo.

4. Ufakelo lwemodyuli: kwisiqhagamshelanisi sebhasi ye-1769, imodyuli yokutyhala kunye nokutshixa amaziko amiselweyo.

5. Khangela uxhulumaniso, qinisekisa ukuba imodyuli kunye neemodyuli ezikufutshane ze-1769 zixhunyiwe ngokuqinileyo.

6. Amandla kwinkqubo: Buyisela ukunikezelwa kwamandla kwaye ukhangele umlawuli kunye ne-I / O isimo.

7. Ukuqinisekiswa koqwalaselo: Sebenzisa i-software ye-Rockwell ehambelanayo ukujonga isakhiwo se-I / O kunye nokucwangciswa kwedilesi ukuqinisekisa ukusebenza okuqhelekileyo kwenkqubo.

Ubomi benkonzo

U-Allen Bradley 1769 ARM yeyeCompactLogix 1769 uthotho lweemodyuli zolawulo lwemizi-mveliso, ikakhulu esetyenziselwa ukugcinwa kwedilesi ye-I/O, kwaye iyilelwe ukusebenza ixesha elide kwiindawo ezizisebenzelayo zoshishino. Ubomi bayo bokwenene benkonzo buchatshazelwa ziimeko zokusebenza, iimeko zokufakela, kunye neemeko zokugcinwa.

Ubomi bokuyila: usebenzisa uyilo lwe-electronics-grade-grade, ilungele ukusebenza ngokuqhubekayo kwenkqubo yokulawula ngokuzenzekelayo.

Umjikelo wenkonzo eqhelekileyo: Ngaphantsi kwemeko yobushushu obuzinzileyo, ukufuma kunye nokusingqongileyo kombane, inokuxhasa ukusebenza okuqhubekayo iminyaka emininzi.

Izinto ezichaphazela ubomi:

Ikhabhinethi yokulawula ukushisa kwangaphakathi kunye neemeko zokutshatyalaliswa kobushushu

Ubume berhasi enothuli, efumileyo nenomhlwa

Uzinzo lokubonelela ngombane kunye nokutshitshiswa kombane

Imodyuli yokufaka nokugcina
