Ngaphezulu kweminyaka engama-20 yamava kwicandelo lezixhobo zoshishino, sibonelela ngamacandelo athembekileyo ngokukodwa kubathengi abagcina iinkqubo zakudala. Nangona abalawuli abatsha abaninzi baye bavela namhlanje, i-Allen Bradley 1785-L86B ihlala iyisixhobo esingundoqo kumashishini amakhulu, ngokukodwa asetyenziselwa ukulawula imigca yokuvelisa eyinkimbinkimbi kunye nokusebenza ngokufanelekileyo kwezixhobo ezinkulu.
Ngenxa yokusebenza kwayo okunamandla, unxibelelwano, kunye ne-I / O amandla, inokufikelela kulawulo lwe-PID, ulawulo olulandelelanayo, kunye ne-interlock yokhuseleko lokulawula iivalve, iimpompo, kunye neemoto kwiinkqubo eziqhubekayo zokuvelisa ezifana nezo ze-petrochemical, amandla, kunye namashishini onyango lwamanzi. Kwimigca emikhulu yemveliso efana nokuveliswa kweemoto, ukupakishwa kokutya, kunye nokuhlelwa kwezinto, inokulungelelanisa inkqubo yenani elikhulu lezinzwa, ii-activators, kunye neerobhothi. Ekubekeni iliso, ukusetyenziswa kwamandla, kunye nokukhuselwa kwempazamo kwisakhiwo esizenzekelayo, uthutho lukaloliwe, kunye nokuveliswa kwamandla omoya.

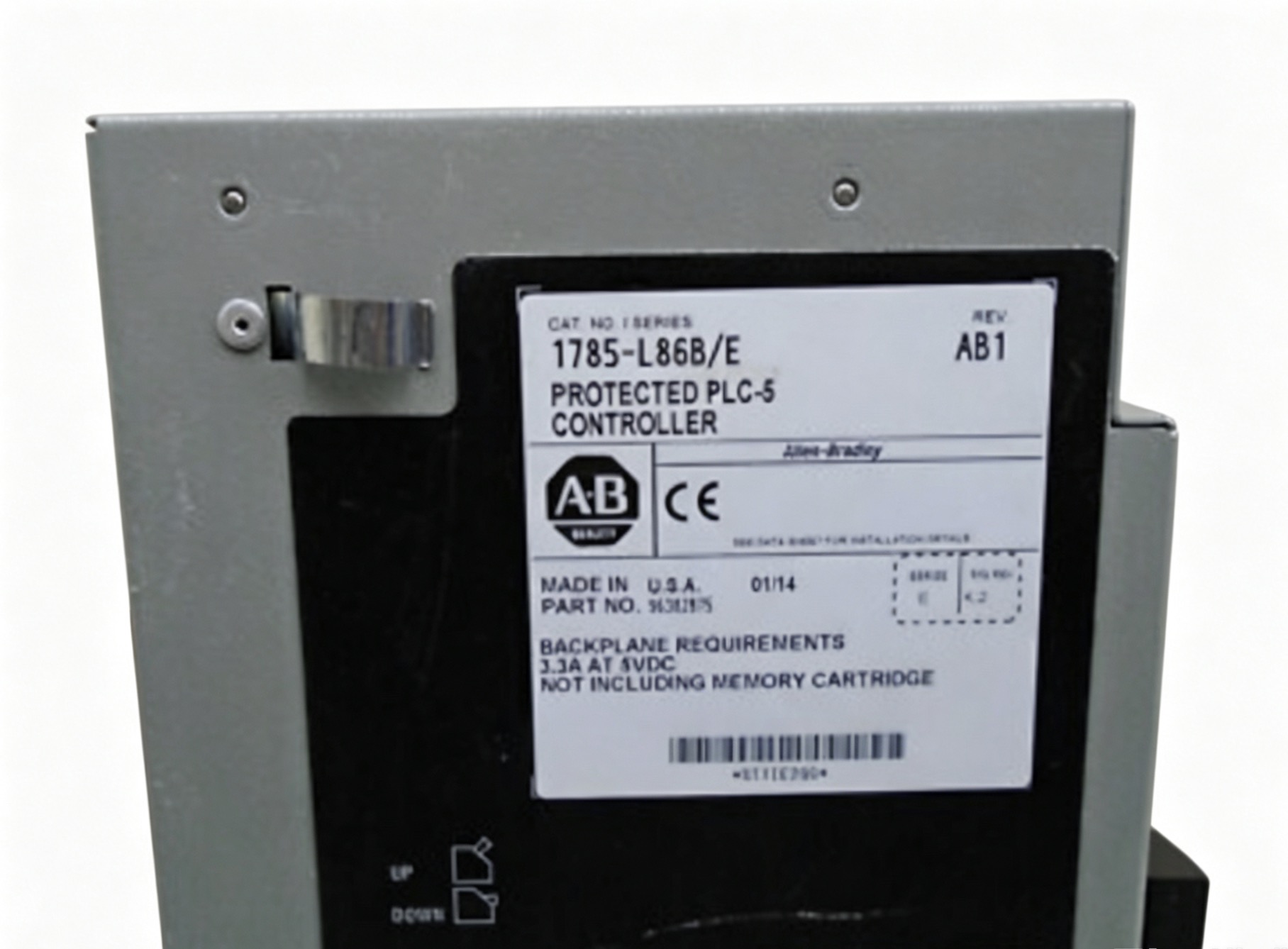

I-Allen Bradley 1785-L86B ibonakalisa i-casing yentsimbi eshinyeneyo kunye nonxibelelwano oluninzi ngaphambili. Ivakala kakhulu esandleni kwaye inokwakheka okuqinileyo, okwahluke ngokupheleleyo kwisixhobo seplastiki esikhaphukhaphu sangoku. Ayinabuphi na ubuncinci. Kwiphaneli yangaphambili, kukho uluhlu lwezibane zesimo esincinci kodwa ezicacileyo, ezinemibala eyahlukileyo ebomvu, etyheli, kunye nohlaza, enokwazisa ngokuthe ngqo imeko yangoku yokusebenza kwesixhobo, okwenza kube lula ukuba abasebenzi babambe ngokukhawuleza imeko yesixhobo.
Ukutshintshela kwayo okuphambili kuthatha ubume obuqinileyo bomatshini, kunye nomsebenzi onzima kunye nowokwenyani. Iyonke ibonakala inokwakheka okuqinileyo kwe-retro, kodwa kuyo yonke indawo ibonakalisa ubunono beemveliso zemizi-mveliso. Ngokujonga nje, kunokubonwa ukuba sisixhobo esomeleleyo esinokumelana nemekobume yemizi-mveliso enzima. I-Allen Bradley ebonelelwa sithi zonke ziimveliso ezintsha kraca. Silawula ngokungqongqo umgangatho kwaye sisuse zonke iintlobo zeengozi ezifihliweyo zezinto ezihlaziyiweyo ukuqinisekisa ukusebenza okuzinzileyo kwexesha elide.
Ukucwangciswa kweparameter ye-Allen Bradley 1785-L86B ihambelana ngokupheleleyo neenkqubo zakudala zamashishini amakhulu. Imemori yomsebenzisi ifikelela kwi-100K bytes, enokuthi ifake iinkqubo zokulawula eziyinkimbinkimbi kwaye akukho mfuneko yokukhathazeka malunga nokugcinwa kweprogram eyaneleyo; umthamo we-I / O unokufikelela kumanqaku angama-2048, uxhasa nayiphi na inhlanganisela, kwaye unokulawula iimodyuli ezininzi ze-I / O ngaxeshanye, ukuhlangabezana neemfuno zokulawula imigca emikhulu yokuvelisa kunye nezixhobo ezininzi.
Izixhobo zixhotyiswe nge-1 RS-232/423/485 i-serial port, i-1 DH + port kunye ne-1 i-port ye-I / O ekude. Inokudityaniswa kakuhle nezinye izixhobo ngothungelwano lonxibelelwano; isantya sokuskena sikhawuleza ngokugqithisileyo, malunga nemiyalelo ye-1-2K inokucutshungulwa ngemillisecond nganye, isebenza ngokufanelekileyo ngaphandle kwe-lag; umgangatho wokushisa osebenzayo ngu-0 ° C ukuya kwi-60 ° C, ubuninzi be-backplane yangoku yi-2.8A (5V DC), ifanelekile kwiimeko zesayithi eziyinkimbinkimbi, kunye nesofthiwe yeprogram isekela i-RSLogix 5, ehambelana nemikhwa yokusebenza yenkqubo endala.
Inzuzo ephambili ye-Allen Bradley 1785-L86B ukuzinza kwayo okugqithisileyo. Inomthamo omkhulu wememori kunye nesantya esikhawulezayo sokusebenza kwengqondo. Nokuba ujongana nesixa esikhulu sokusetyenzwa kwedatha kunye nengqiqo yolawulo oluntsonkothileyo, isaqhuba kakuhle ngaphandle kobushushu obugqithisileyo kunye nokucotha. Ngelo xesha, kwakubhekwa njengemveliso ephezulu kwinqanaba elifanayo.
Ngokungafaniyo nezixhobo eziqhelekileyo, xa sele ilayitiwe, inokusebenza ngokuqhubekayo iminyaka eliqela ngaphandle kokucinywa. Ayinakuba neengxaki ezifana nokuwa kwenkqubo okanye izikrini eziluhlaza njengekhompyuter. Ifanelana ngokugqibeleleyo iimeko apho izixhobo kufuneka zisebenze ngokuqhubekayo ixesha elide, njengezityalo zokunyanga amanzi kunye neefektri ezinkulu. Kwakhona lolona khetho lulungileyo lokugcina iinkqubo zakudala. Ngaphandle kokuchitha ixabiso elikhulu ukubuyisela inkqubo yonke, inokuqinisekisa imveliso ezinzileyo.
I-Feimu Technology, njengomthengisi oqeqeshiweyo, inendawo yokugcina impahla ekrelekrele. U-Allen Bradley 1785-L86B zonke zikwi-Stock kwaye ziyafumaneka ukuze zibonelelwe ngokukhawuleza. Sinokusabela ngokukhawuleza kwiimfuno ezingxamisekileyo zabathengi ngaphandle kwexesha elide lokulinda. Iimveliso zethu zinexabiso elifanelekileyo kwaye zibonelela ngexabiso eliphezulu lemali. Siphelisa amakhonkco aphakathi kwaye sinikezela abathengi ngabalawuli abatsha abakumgangatho ophezulu kumaxabiso akhuphisanayo, ukunciphisa iindleko zokugcinwa kweenkqubo ezidlulileyo.
Ngokubhekiselele kwi-Logistics, samkela ukupakishwa kokhuseleko lwe-multi-layer esekelwe kwiimpawu ezichanekileyo zabalawuli ukukhusela ngokufanelekileyo umonakalo kwiingozi ngexesha lokuthutha kunye nokuqinisekisa ukuba iimveliso zihanjiswa ngokufanelekileyo. Ngelo xesha, sineqela lezobugcisa eliye labandakanyeka ngokunzulu kwimveliso ye-Allen Bradley. Sinokubonelela ngeeyure ze-24 zokubonisana kunye nenkxaso emva kokuthengisa. Yonke imveliso ekhutshiweyo kwifektri iphantsi kovavanyo olungqongqo lwamandla ukuqinisekisa ukuba izixhobo eziziswe kubathengi zinokusetyenziswa ngokuqhelekileyo, nto leyo eyenza inkqubo yokuthenga ingabinaxhala kwaye nokusetyenziswa kwayo kuqinisekise ngakumbi.
I-Allen Bradley 1785-L86B iyiprosesa ephezulu yenkqubo ye-PLC-5/86. Inika amagama angama-100K wememori yomsebenzisi kwaye ixhasa ukuya kuthi ga kwi-2048 amanqaku e-I / O kwiinkqubo ezinkulu zelifa.
| Ipharamitha | Inkcazo |
|---|---|
| Umzekelo weMveliso | Allen Bradley 1785-L86B |
| Series Product | PLC-5/86 |
| Inkumbulo yomsebenzisi | 100K amagama (malunga ne-200K bytes) |
| Amanqaku aphezulu e-I/O | 2048 amanqaku (nayiphi na indibaniselwano) |
| Amazibuko oNxibelelwano | 1 x RS-232/423/485, 1 x DH+, 1 x Ukude I/O |
| Ixesha lokuskena | 1-2ms nganye imiyalelo 1K |
| Umzobo ongemva wangoku | 2.8A kwi-5V DC ubuninzi |
| Ukuchithwa kwamandla | 8W ubuninzi |
| Ubungakanani bemodyuli | Imodyuli eneendawo ezimbini |
| Ubushushu bokusebenza | 0°C ukuya kuma-60°C |
| Ubushushu boGcino | -40°C ukuya kuma-85°C |
| Ubuntu bezizalwane | 5% ukuya kwi-95% (engacondensing) |
| Inkqubo yeSoftware | I-RSLogix 5 |
| Iziqinisekiso | UL, CUL, CE |
Usapho lwe-PLC-5 luneemodeli ezininzi eziphezulu. Olu thelekiso lukunceda ukhethe umqhubekekisi ochanekileyo wendlela yakho.
| Umzekelo | Inkumbulo | I/O Umthamo | Ubungakanani bemodyuli | Engcono Kwi |
|---|---|---|---|---|
| 1785-L20B | 16K amagama | 1024 I/O | I-slot enye | Iinkqubo ezincinci |
| 1785-L40B | 32K amagama | 2048 I/O | I-slot enye | Iinkqubo eziphakathi |
| 1785-L60B | 64K amagama | 4096 I/O | I-slot ezimbini | Iinkqubo ezinkulu |
| 1785-L80B | 100K amagama | 4096 I/O | I-slot ezimbini | Iinkqubo ezinkulu kakhulu |
| 1785-L86B | 100K amagama | 2048 I/O | I-slot ezimbini | Iinkqubo ezinkulu ezinengqiqo ebanzi |
Umahluko ophambili we-1785-L86B:I-L86B inikezela nge-100K amagama ememori kodwa ixhasa amanqaku angama-2048 I / O. Oku kulungele iinkqubo ezineenkqubo ezinkulu kodwa i-I/O ephakathi ibala.
I-1785-L86B inikeza amagama angama-100K wememori yomsebenzisi. Ulawulo olufanelekileyo lwememori luqinisekisa ukuba iprosesa iqhuba ngokufanelekileyo.
Uqikelelo losetyenziso lwenkumbulo:
Iindlela eziqhelekileyo zokugcina imemori:
Xa kuqwalaselwa iprosesa enkulu:
I-1785-L86B inee-LED ezininzi kwiphaneli yangaphambili. Ezi zibonelela ngobume bemeko ngokukhawuleza ngaphandle kwe-terminal yenkqubo.
| I-LED | Ubume | Intsingiselo | Isenzo |
|---|---|---|---|
| PWR | Luhlaza | Iprosesa inikwe amandla kwaye isebenza ngokuqhelekileyo. | Akukho ntshukumo ifunekayo. |
| PWR | Cimile | Akukho mandla okuqhubela phambili. | Jonga amandla e-chassis. Jonga ufakelo lwemodyuli. |
| BALEKA | Luhlaza | Iprosesa ikwimo ye-RUN. | Akukho ntshukumo ifunekayo. |
| BALEKA | Cimile | Iprosesa ikwimo yeNKQUBO. | Tshintshela kwimowudi ye-RUN ukusuka kwi-RSLogix 5. |
| BALEKA | Ukudanyaza | Iprosesa kwimowudi yePROGRAM enemikhosi eyenziweyo. | Jonga amandla. Yenza okanye uvale njengoko kufuneka. |
| Impazamo | Bomvu | Impazamo yeprosesa. I-Hardware okanye impazamo yesoftware. | Jonga ikhowudi yempazamo kwi-RSLogix 5. Sula impazamo okanye amandla omjikelezo. |
| BAT | Bomvu | Umbane webhetri uphantsi. | Tshintsha ibhetri kwiveki enye. |
| DH+ | Luhlaza | Unxibelelwano lwe-DH+ luyasebenza. | Akukho ntshukumo ifunekayo. |
| DH+ | Cimile | Akukho DH + unxibelelwano. | Jonga intambo. Jonga isilungisi. Jonga idilesi yendawo. |
I-Allen Bradley 1785-L86B iprosesa zizinto zelifa lexabiso eliphezulu. Zihlala zenziwe ngomgunyathi. Sebenzisa olu vavanyo ukuqinisekisa ubunyani.
Ukuba iprosesa ibonisa i-FAULT LED ebomvu emva kokulayisha inkqubo, krokrela umgunyathi. Qhagamshelana neFeimu Technology ngeefoto zokuqinisekisa.
I-Feimu Technology yaqala eJiangmen, eGuangdong ngo-2005. Sinikezela ngezixhobo zokuqala zika-Allen Bradley, Siemens, GE, kunye ne-Schneider kubathengi kumazwe angaphezu kwama-30.
