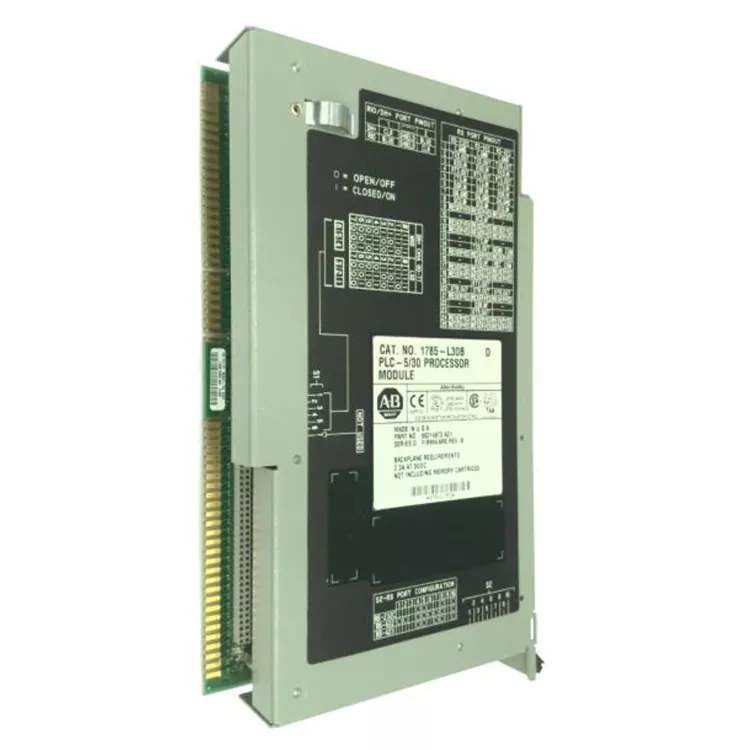

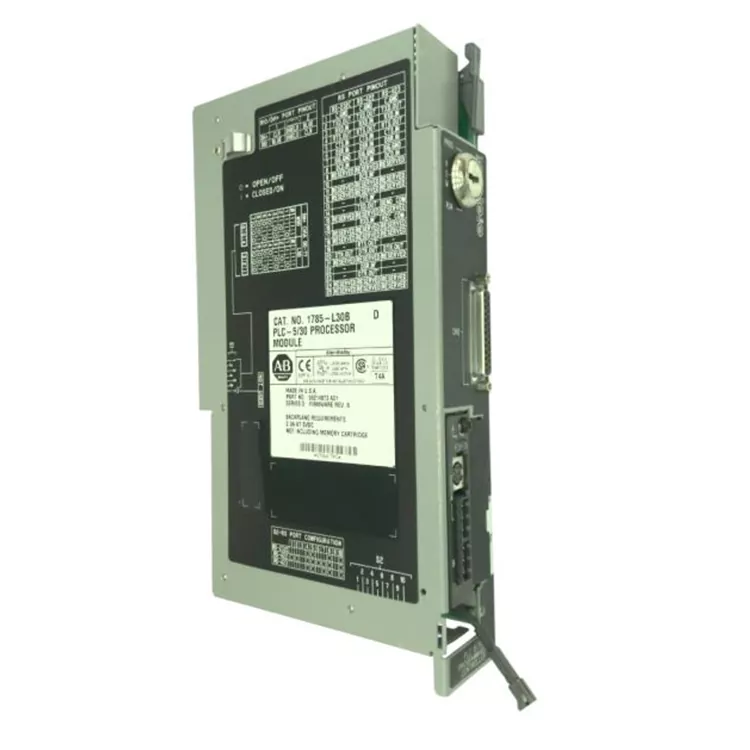

Allen Bradley 1785 L30B

U-Allen Bradley 1785 L30B ungakwazi ukuqhuba ukuya kuthi ga kwi-29 yeerack ze-I/O zasekhaya nezikude, ezigquma imisebenzi yokuqiqa yasekuhlaleni kunye nokusebenzisana kwedatha phakathi kweesayithi ezikude. Ifaneleke kakhulu kwiindawo ezineendawo ezisasazekileyo ezifana nemigca yokuvelisa izinto zokwakha, iinkqubo zokuthutha izinto eziphathekayo, kunye nemisebenzi yenkqubo encinci. Imodeli eyekiweyo ithanda ukuba neempazamo ezifihlakeleyo ezinje ngokuvuza kwebhetri kunye noqhagamshelwano olubi kumazibuko onxibelelwano. Njengomthengisi othembekileyo, i-Feimu Technology iya kuqhuba uhlolo olukhethekileyo ngexesha lokugcinwa kwempahla ukuvavanya ukuzinza kwe-RIO, i-DH + yonxibelelwano lwe-double-port, kwaye iqinisekise ukuba umsebenzi wokugcina imemori ulungile. Iimodyuli ezinemingcipheko enokuvuza yokuvuza ziya kupheliswa. I-hardware ayifuni ukuguqula isakhiwo sokuqala se-rack, kwaye iinkqubo ze-logic zangaphambili zinokulayishwa ngokuthe ngqo kwaye ziqhube ngaphandle kwesidingo sokuphinda kuqwalaselwe inethiwekhi.

Ubomi benkonzo

U-Allen Bradley 1785 L30B yeye-PLC-5 yosapho olukhulileyo lwabalungiseleli bemizi-mveliso, kwaye abavelisi abadli ngokuchaza "ubude bobomi" obumiselweyo bemodyuli. Ubomi benkonzo obuyinyani buxhomekeke ikakhulu kwindawo yokusebenza, amandla ngexesha, ubushushu, ukufuma kunye neemeko zokugcinwa.

Indawo eqhelekileyo yemizi-mveliso: inokuqhubeka ngokuqhubekayo ixesha elide.

Izinto ezichaphazela ubomi: ubushushu obuphezulu, ukufuma, uthuli, ukungcangcazela, ukuguquguquka kwamandla, njl.

Isitshixo sogcino: Jonga unikezelo lwamandla, ubume beCPU, ujongano lonxibelelwano kunye nobume bebhetri rhoqo.

Isincomo seendawo ezisecaleni: Njengoko i-PLC-5 iyeyeqonga lolawulo lwesizukulwana esidala, kuyacetyiswa ukuba ulungiselele iprosesa esecaleni kwangaphambili ukunciphisa umngcipheko wexesha lokuphumla kwezixhobo.

Iinkcazo zobuGcisa

Ulwakhiwo lwangaphakathi

Amalungu angaphakathi ka-Allen Bradley 1785 L30B kakhulu aquka:

Isekethe yeprosesa ye-CPU: Iqhuba iinkqubo zolawulo lwe-PLC.

Isekethe yememori: Igcina iinkqubo zabasebenzisi kunye nedatha.

Isekethe yonxibelelwano: ukujongana neDH + kunye neRemote I/O yotshintshiselwano lwedatha.

I-backplane interface: Qhagamshela isakhelo se-PLC-5 ukugqiba unikezelo lwamandla kunye nokuhanjiswa kwedatha.

Isiphaluka sesalathisi sesimo: bonisa iprosesa esebenzayo kunye nemeko yempazamo.

Ubudlelwane bolwakhiwo: CPU → inkumbulo → ulawulo/unxibelelwano lwesekethe → ujongano lwe-backplane → inkqubo yePLC-5.

Eyona nzuzo ingundoqo kunye nendawo yokuthengisa

I-PLC evuthiweyo-5 uyilo lolawulo lwezakhiwo:

Iprosesa ye-PLC-5/30, ebonakaliswe yizicelo zexesha elide zezoshishino, ifanelekile kwimisebenzi ezinzileyo yokulawula ngokuzenzekelayo.

32 k Amagama inkumbulo yomsebenzisi:

Iyakwazi ukuhlangabezana neemfuno zeprogram yokulawula ye-PLC ephakathi kunye nokugcinwa kwedatha.

Inkxaso kunye ne-DH + I/O ekude:

Kukulungele ukudibanisa i-I / O ekude kunye nezinye izixhobo zoshishino kwi-PLC-5 inkqubo.

Ifanelekile ukugcinwa kwenkqubo endala:

Ingasetyenziselwa ukutshintsha iprosesa yenkqubo ekhoyo yolawulo ye-PLC-5 kunye nokunciphisa iimfuno zenguqu yenkqubo ngokubanzi.

Yandisa umjikelo wobomi besixhobo:

Ukugcinwa kwenkqubo yolawulo eyintsusa ngokutshintshwa kweendawo ezisecaleni ukuze kuncitshiswe ixesha lokuphumla kwezixhobo kunye nokuphucula iindleko.

FAQ

Q1. Yintoni ekufuneka yenziwe ukuba i-CPU iyasilela ukungena kwimeko yokusebenza eqhelekileyo?

Jonga unikezelo lwamandla lwe-rack ye-PLC, ukufakwa kweprosesa, izibane zesibonisi sesimo, ubume benkqubo kunye nemeko yebhetri, kunye nokuxilongwa ngokusekwe kwimeko yempazamo.

Q2. Uyicombulula njani ingxaki ye-DH+ yonxibelelwano?

Jonga iintambo zonxibelelwano, uqhagamshelo lwetheminali, iidilesi zeendawo zokuhlala, ubumbeko lwenethiwekhi kunye nomqhubi wonxibelelwano weRSLinx.

Q3. Yintoni ekufuneka iqatshelwe ngaphambi kokutshintshwa?

Gcina iprogram ye-PLC, itafile yedatha, uqwalaselo lwe-I / O kunye neeparitha zonxibelelwano kuqala, kwaye uqinisekise imodeli yeprosesa, iSeries and Revision.

Q4. Ukuqinisekisa njani ukuba umsebenzi wemodyuli uqhelekile?

A: Yenza uvavanyo lwamandla, uvavanyo lokusebenza lwe-CPU, uvavanyo lonxibelelwano lwe-DH +, ukufundwa kweprogram kunye novavanyo lokubhala kunye novavanyo oluqhubekayo lokusebenza ngokulandelelana.

Q5. Yeyiphi isoftware ekufuneka isetyenziselwe inkqubo?

Sebenzisa i-RSLogix 5 ukwenza inkqubo, ukulayisha, ukukhuphela kunye nokubeka iliso kwi-intanethi.

Kutheni ukhethe thina

I-Feimu Technology ngumboneleli oqeqeshiweyo osebenza ngokukhethekileyo ekuveliseni amacandelo olawulo lwemizi-mveliso yaseRockwell. Inendawo yayo yokugcina impahla, kwaye i-CPU yoluhlu lwe-PLC 5 kuwo onke amabanga inoluhlu lwezinto ezibonakalayo. Ayixhomeki ekuzalisweni kwangaphandle kwesitokhwe. Yonke imifanekiso ekwiwebhusayithi ithathwe kwiifoto zangaphakathi zokwenyani zenkampani, kubandakanywa ezona ndawo zigciniweyo zokugcina iimpahla, ukuvela kweemodyuli ezineengile ezininzi, imiboniso yokusebenza kwizikhululo zokuhlola, kunye neekopi eziskeniweyo zeziqinisekiso zeshishini. Iyala ngokungqongqo ukusebenzisa imathiriyeli eyenziwe ngabenzi begeneric ekhutshiweyo kwi-intanethi. Ubume bemveliso bufana nqwa nokubonwayo.

Kwii-CPU ezindala ezifana no-Allen Bradley 1785 L30B ezineemfuno eziphezulu zozinzo lwenethiwekhi ye-RIO, siqhuba ngokukodwa iimvavanyo zokulinganisa ze-I/O kwi-intanethi. Sigcina iifoto zangempela zeemodyuli, iilogi zokuvavanya zonxibelelwano lwenethiwekhi, kunye neerekhodi zokusebenza kokuguga kwexesha elide. Iseti yonke yezinto zokubona inokunikezelwa kubathengi ukuba baphonononge. Sibambelela ekungahlaziyini okanye ekulungiseni iilebhile, kwaye sichaza ngokucacileyo inkangeleko yokwenyani kunye nombala wemodyuli nganye. Abachwephesha baqhelana neentlungu zentlungu yezixhobo ezidala ze-PLC 5 inkqubo, bancedisa ekujongeni ukulinganisa i-rack kunye ne-I / O indawo ekude ngaphambi kokubeka ii-odolo, ukuxhasa ukuhlolwa kwevidiyo yeempahla kwii-odolo eziphuthumayo, kwaye ulungiselele ngokukhawuleza ukuhanjiswa. Uncedo oluvela kwimodeli yekhompyuter yokuqinisekisa kunye nokuthumela ingxaki, ukunciphisa ukuthenga imveliso endala kumngcipheko womgodi.
