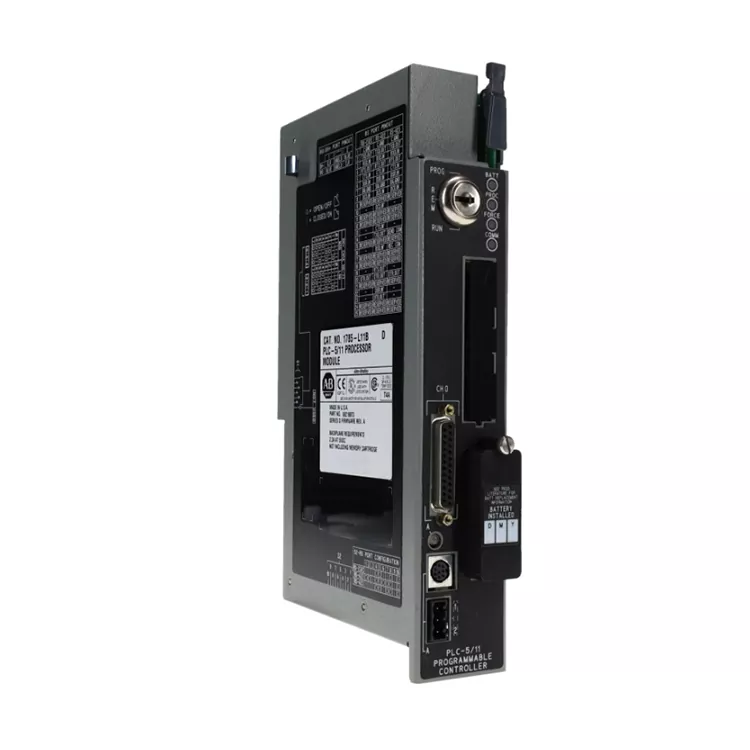

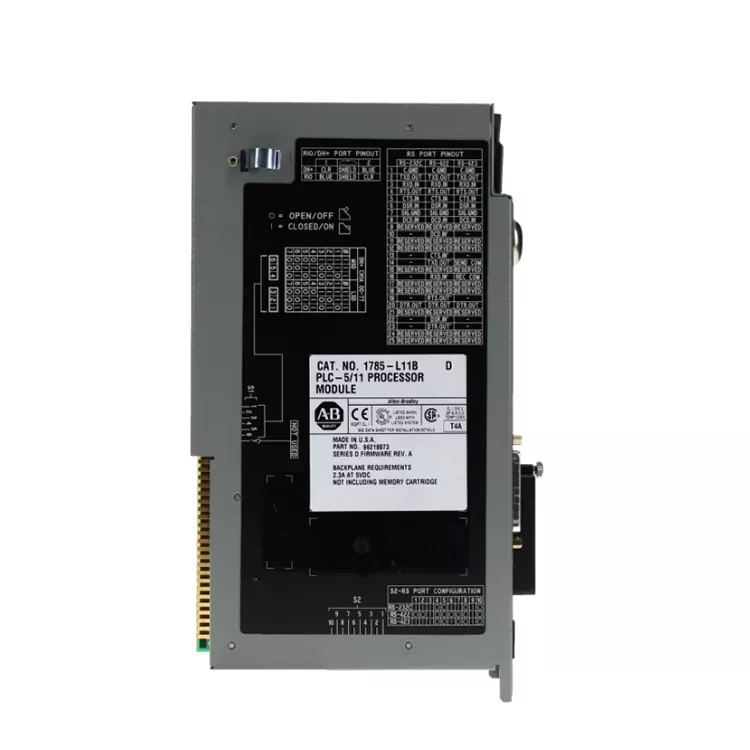

Allen Bradley 1785 L11B

Ayizizo zonke iinkqubo zolawulo ezifuna amakhulu okanye amawaka amanqaku. Kwiindawo ezincinci zokusebenza, iimodeli zenqanaba lokungena ziyakwanela. I-Feimu Technology, umboneleli othembekileyo onembali ende kushishino lolawulo lwemizi-mveliso, ibonelela ngale Allen Bradley 1785 L11B incinci ngokobukhulu kodwa ixhotyiswe ngokupheleleyo.

Inememori ye-8K enokuthi ikwazi ukufumana ingqiqo eqhelekileyo, iingongoma ze-512 ze-I / O zokugubungela izixhobo ezincinci; I-1 DH + / i-remote ye-I / O yokwandiswa, kunye ne-1 ye-serial port yokuxhuma kwikhompyutheni yokusingatha; i-backup yebhetri + I-EEPROM i-inshurensi kabini ukukhusela ukulahleka kwenkqubo kwimeko yokusilela kwamandla. Ifanelekile kumatshini wokupakisha, imigca yokuhambisa, kunye nesixhobo somatshini omnye kwiimeko zokulawula ezincinci, zanele kwaye zinendleko.

Iinzuzo eziphambili kunye namanqaku okuthengisa:

1. I-PLC-5 ekhulile kwaye izinzile yolawulo lwe-architecture

I-Allen Bradley 1785 L11B ithatha uyilo lweqonga lwe-PLC-5 lwakudala, oluqinisekisiweyo kwindawo yoshishino ixesha elide, kwaye linolawulo oluzinzileyo noluthembekileyo.

I-advanteji:

Ubume bemizi-mveliso buguquguquka kakhulu

Inkqubo isebenza ngokuzinzileyo

Iindleko zokulungisa eziphantsi

2. Ifanelekile kwizixhobo ezincinci kunye neziphakathi

Ilungele ukusetyenziswa kwi:

Ulawulo lwesixhobo esinye

Umgca wemveliso omncinci

Inkqubo yokuzenzekela koomatshini

Iprojekthi yokulungiswa kwezixhobo zemizi-mveliso

3. Ukwandisa umjikelo wobomi benkqubo ye-PLC endala

Kuba isaqhuba iPLC - 5 inkqubo:

Akukho mfuneko yokutshintsha yonke inkqubo yolawulo

Uyilo lwesicelo sokuqala

Ukunciphisa iindleko zokuphuculwa kwezixhobo

Ukunciphisa ixesha lokuphumla

Iinkcazo zobuGcisa

Iinkalo zesicelo

Usetyenziso lwezixhobo zoomatshini:

Izixhobo zokuhlanganisa ezizenzekelayo

Oomatshini bokupakisha

Ulawulo lwezixhobo zokusetyenzwa

Ukwenziwa kwezicelo zomgca wemveliso:

Inkqubo yokuhambisa

Ulawulo lwe-interlock lwezixhobo

Ulawulo lwenkqubo ezenzekelayo

Usetyenziso lolawulo lweziseko ezingundoqo:

Ulawulo lwesikhululo sempompo

Inkqubo yokulawula inkqubo elula

Inkqubo yokuhlola

Ukuhlolwa kwenkangeleko:

Qinisekisa ukugqibelela kweelebhile zemodeli, izivalo, kunye nojongano.

Ukuqinisekisa imodeli:

Qinisekisa ukuhambelana kwemodeli ka-Allen Bradley 1785 L11B kunye nenkqubo yePLC-5.

Uvavanyo lwamandla:

Jonga isimo sokuqalisa se-CPU kunye nezalathi ze-LED.

Uvavanyo lomsebenzi:

Qinisekisa ukusebenza kwenkqubo kunye nesimo sokusebenza kweprosesa.

Uvavanyo lonxibelelwano

Jonga uqhagamshelwano lwenethiwekhi ye-PLC.

Ukupakishwa kunye nokuhanjiswa:

Rekhoda iziphumo zovavanyo kwaye wenze i-anti-static kunye nokupakisha ukothuka.

FAQ

Q1. Sebenzisa eyiphi isoftware?

Ukusebenzisa i-RSLogix 5 software:

Umhleli wenkqubo

Ukulayishwa kunye nokukhutshelwa

Ukubeka iliso kwi-Intanethi

Ukuxilongwa kwempazamo

Q2. Yiyiphi imo yenkxaso yonxibelelwano?

Ngokusekelwe kwinkxaso yokumisela inkqubo: DH + unxibelelwano, unxibelelwano lwe-I / O olukude;

Isetyenziswe kutshintshiselwano lwedatha ye-PLC kunye nezixhobo zangaphandle.

Q3. Ngaba ufuna ukubhala inkqubo emva kokutshintshwa?

Ngokuqhelekileyo ayifuni. Ukuba sele une-backup yeprogram ye-PLC yoqobo, khuphela nje inkqubo kwiprosesa entsha kwaye uqinisekise unxibelelwano kunye noqwalaselo lwe-I/O.

Q4. Indlela yokugweba ukuba ukuqhuba eqhelekileyo?

Isalathisi sesimo se-CPU

Imeko yonxibelelwano ye-PLC

Inkqubo yokuqhuba imeko

I/O impendulo

Q5. Zeziphi iimpazamo eziqhelekileyo?

Inkqubo yokufakela

Qinisekisa ukucwangciswa kwe-PLC-5 rack kunye nenkqubo

Cima unikezelo lombane lwesixhobo

Faka i-1785 L11B kwi-slot ehambelanayo ye-rack

Jonga unxibelelwano lwe-backplane

Qhagamshela imigca yonxibelelwano

Vula kwaye ujonge ubume beCPU

Khuphela inkqubo usebenzisa i-RSLogix 5 kwaye uvavanye ukusebenza kwayo

Kutheni ukhethe thina

Ukufumana iinxalenye eziyekiweyo, kufuneka ufumane umthengisi othembekileyo. I-Feimu Technology yasekwa eJiangmen, kwiPhondo laseGuangdong ngo-2005 kwaye ibandakanyeke ngokunzulu kushishino lolawulo lwemizi-mveliso ngaphezu kweminyaka engama-20.

Inoluhlu lwe-5,000 ye-SKU esebenzayo kwisitokhwe, kubandakanywa neemodeli zakudala eziyekiweyo ezifana no-Allen Bradley 1785 L11B; Ngaphambi kokuba iprosesa nganye ithunyelwe, ijongwa kathathu: ukuvavanywa kwememori, ukuqinisekiswa konxibelelwano, kunye novavanyo loxinzelelo lomsebenzi ukuqinisekisa ukuba iyasebenziseka ekuhanjisweni; I-100% isiqinisekiso semveliso yokwenyani, kunye namajelo asemthethweni anokulandeleka; Uncedo lwangaphambili lokuthengisa lwasimahla lokuqinisekisa imodeli kunye nokuqinisekisa ukuhambelana, kunye nempendulo yeeyure ezingama-24 ngexesha lenkonzo emva kokuthengisa.

2000 square metres warehouse ezikrelekrele, oda uzinzo unikezelo ngokukhawuleza. Thenga iinxalenye zemveliso yolawulo lwamashishini, fumana itekhnoloji yomthi ophaphazelayo iqinisekisiwe ngakumbi.
