I-TheAllen Bradley 1769 IQ32 yi-32-point high-density DC yemodyuli yokufaka idijithali. Ilungele ingqokelela yokutshintsha okusondele kunye nemiqondiso yesixhobo sombane kwizicelo ezinkulu, kwaye isetyenziswa kakhulu kwimigca yendibano yemoto yaphesheya kolwandle, uthutho lwemathiriyeli, kunye nemigca yokuvelisa ngokuzenzekela.I-Feimu Technology ibandakanyeke nzulu kwinkalo yolawulo lweshishini langaphandle kwaye ingumthengisi othembekileyo wehlabathi jikelele.
Zonke iimodyuli ezingenayo zijongwa ngokulandelelana kweempawu zetshaneli kunye novavanyo lwebhasi ye-intanethi. Zonke iimveliso ezingalunganga ezinomonakalo wetshaneli, ukuguga okufihlakeleyo, okanye ukulungiswa kwakhona zihlolwe ngokungqongqo. Akukho mfuneko yokulungisa okongeziweyo ekufikeni, kwaye zinokufakelwa ngokuthe ngqo kwaye zitshintshwe, zikhawulelane ngokupheleleyo neemfuno zokusetyenziswa kweefektri zaphesheya kolwandle kulondolozo olungxamisekileyo kunye nokuphinda kuqalise imveliso ngokukhawuleza.
I-32-point-high-density input: Imodyuli enye inokuqokelela izibonakaliso ezininzi kwisayithi, ukunciphisa inani leemodyuli kunye nendawo yokufaka.
Gcina indawo yekhabhinethi yokulawula: Ifanelekile kwizixhobo ezizenzekelayo kunye nenani elikhulu lamanqaku e-I / O.
Ukusebenza okuzinzileyo kunye nokuthembekileyo: uyilo lwebakala loshishino, olulungele indawo yokusebenza eqhubekayo ixesha elide.
Ukuhambelana kwenkqubo yeCompactLogix: Inokuhlanganiswa ngokuthe ngqo kwi-architecture ye-1769 I / O.
Ukugcinwa okulula: Isakhiwo semodyuli, ukuququzelela ukutshintshwa kunye nokwandiswa.
Kwisiza i-24V DC isignali yegalelo → ujongano lwesiphelo sesiphelo → ukhuselo/ukucoca isekethe → isekethe yombane wefoto yombane → iyunithi yokubona ubume begalelo → imodyuli yokusetyenzwa kwedatha → 1769 ujongano lwebhasi → Isilawuli seCompactLogix
|
Ipharamitha |
Inkcazo |
|
Umzekelo |
1769 IQ32 |
|
Uthotho |
CompactLogix 1769 |
|
Uhlobo lweMveliso |
Imodyuli yoNgeniso yeDigital DC |
|
Uhlobo Longeniso |
Ungeniso lweDijithali ye-DC |
|
Inani lamagalelo |
32 Amanqaku |
|
Ilinganiswe kwi-Voltage ye-Input |
24V DC |
|
Uluhlu lweVoltage esebenzayo |
10 ~ 30V DC |
|
Igalelo langoku |
Malunga. 4.3 mA kwi-24V DC |
|
Ixesha lokulibaziseka lokuFaka |
Malunga. 8 mz (KUVULIWE/KUVALIWE) |
|
Isolation Voltage |
I-75V DC (Ukwahlukaniswa ngokuqhubekayo) |
|
I/O Inkqubo |
1769 Compact I/O |
|
Ukutya umbane |
Malunga. I-115 mA kwi-5.1V DC |
|
Indlela yokuFakela |
I-DIN kaloliwe okanye i-Panel Mount |
|
Indlela yoNxibelelwano |
Ukutyhubela 1769 Compact I/O Bus |
Xa ababoneleli abaninzi kwimarike besenza kuphela imbonakalo elula yokuhlela, i-Feimu Technology, njengomthengisi wehlabathi we-AB eyekiweyo ii-spare parts, iseke imigangatho yovavanyo olulodwa lweemodyuli zoxinaniso oluphezulu ezifana no-Allen Bradley 1769 IQ32.
Siphelisa iinxalenye ezihlaziyiweyo nezilungisiweyo ezinamatshaneli agugayo okanye iindawo ezingasebenzi kakuhle. Ngaphambi kokuba imodyuli nganye ishiye indawo yokugcina impahla, sigqibezela ukuqinisekiswa kwebhasi ye-backplane, kwaye siqhube uvavanyo lwe-32-channel point-by-point-on-on-on-on-on-on-on-on-on-on-on-on-on-on-on-on-on-on-horns ukukhusela rhoqo iingozi zesayithi ezifana nokulahleka komqondiso kunye namanqaku angaphenduliyo. Sikwabonelela ngeerekhodi zovavanyo ezipheleleyo kunye nempahla. Iyahambelana neenkqubo zokuthengwa kwempahla phesheya, ixhasa amajelo amaninzi othutho lwamazwe ngamazwe, kwaye inokubonelela ngeseti epheleleyo yamaxwebhu okubhengeza amasiko.
Siye sazinzisa ukugcinwa kwenkqubo yeCompact I/O ephelelwe lixesha kwaye sinokubonelela ngezalathiso ezisisiseko zobugcisa ukunceda abathengi bajongane ngokukhawuleza nokusilela kophawu lwedijithali, ukunciphisa ilahleko engacwangciswanga yexesha lokuphumla ukuya kwinqanaba elikhulu.

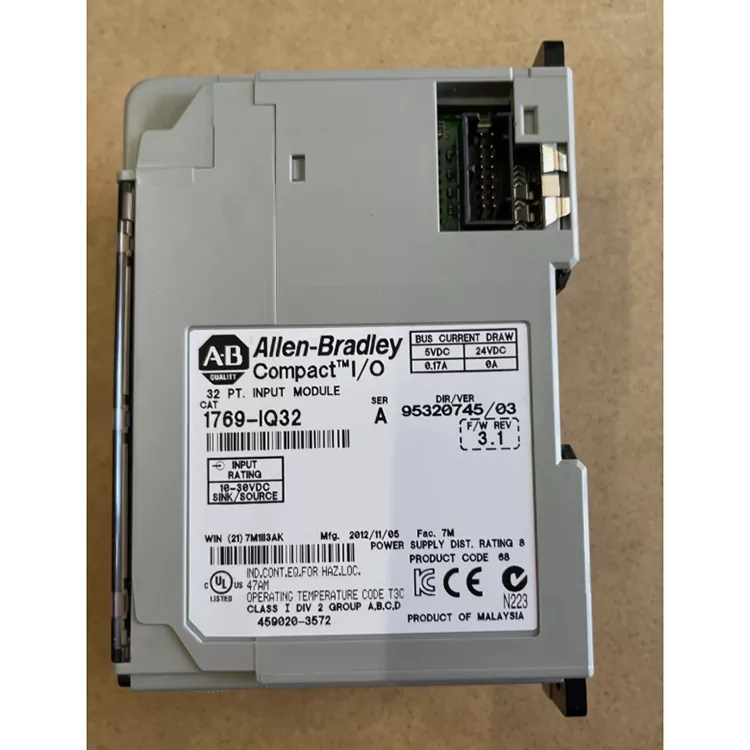

Ukujonga ileyibhile:
Qinisekisa ukuba imodeli ye-1769 IQ32, ukuchongwa kuka-Allen Bradley, inombolo ye-serial, inombolo yemveliso kunye nolwazi lwebhetshi lucacile kwaye luphelele. Idatha esemthethweni ibonisa ukuba imodeli yi-32-point 24V DC imodyuli yokufaka idijithali, enokusetyenziswa njengesiseko sokujonga ipharamitha.

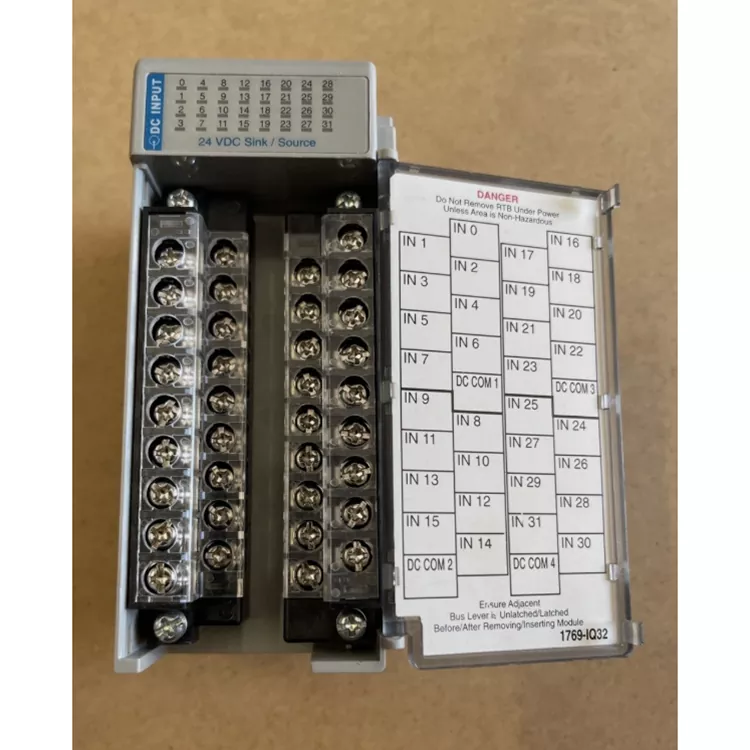

Ukuhlolwa kwenkangeleko:
Jonga ukuba ingaba indlu ka-Allen Bradley 1769 IQ32 , isigqubuthelo setheminali, izikhonkwane nezikrufu zikwimeko entle, kwaye akukho zikhondo zokuqhaqha, ukulungiswa, ukuchithwa okanye ukunxitywa okucacileyo.
Ujongano lojongano:
Jonga unxibelelwano lwebhasi ye-1769, i-terminal iqhelekile, akukho oxidation, deformation okanye umonakalo.
Iparamitha ekufuneka ijongwe:
Iqinisekisiwe: igalelo lamanqaku angama-32; 24 v DC uhlobo lwegalelo; Uluhlu lwegalelo lumalunga ne-10 ~ 30 v DC; Ubungakanani bembonakalo kunye noyilo lwetheminali luhambelana nedatha esemthethweni.
Uvavanyo lwekhompyuter:
Kufakelo lwenkqubo yeCompactLogix, inokuchonga imodyuli yePLC eqinisekisayo, kwaye inqaku ngenqaku lovavanyo lokufaka impendulo yesignali yinto eqhelekileyo.
Ukugcinwa kwedatha
Gcina iifoto zemveliso, iifoto zeleyibhile, iirekhodi zovavanyo kunye nolwazi lwefektri ukuze ulandele.
