Allen Bradley 1769 IF4I

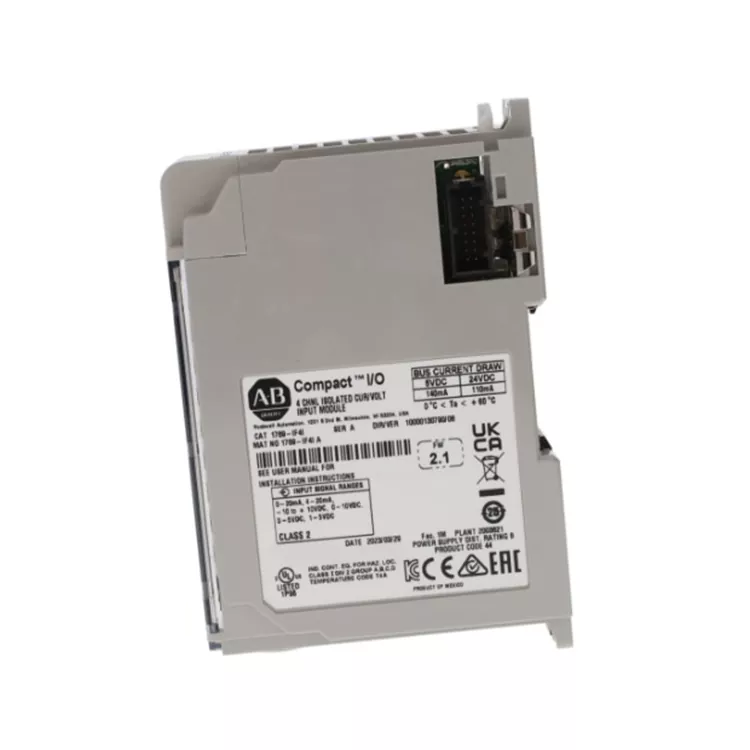

U-Allen Bradley 1769 IF4I yimodyuli ye-4-channel yangoku yohlobo lwe-analog efumana i-4-20mA sensor signals. Isetyenziselwa ikakhulu ukuqokelela inqanaba lolwelo, uxinzelelo, kunye nemiqondiso yokuhamba, kwaye isasazwe ngokubanzi kunyango lwamanzi aphesheya, iikhemikhali, kunye nezixhobo ezizisebenzelayo zelifa. I-Feimu Technology, njengomthengisi ochwepheshile ojolise kwiimarike zaphesheya kolwandle, iqhuba iimvavanyo zokuchaneka kwesampulu kwitshaneli nganye yemodyuli, yenza ubhaqo ngebhasi ekwi-intanethi, ikhuphela ngaphandle iimveliso ezingalunganga ngokuqhutywa kwetshaneli kunye nezo zifuna ukulungiswa okanye ukulungiswa, kwaye yenza ukuba ukutshintshwa ngokuthe ngqo xa ufika ukuhlangabezana neemfuno zolungiso olungxamisekileyo lwaphesheya kweelwandle.

Inkqubo yokuhlohla:

1. Ukuqinisekiswa kwenkqubo

Qinisekisa ukuhambelana kuka-Allen Bradley 1769 IF4I nenkqubo yolawulo yeCompactLogix 1769 kunye neemfuno zoqwalaselo lwe-I/O.

2. Nciphisa unikezelo lombane

Vala unikezelo lwamandla, i-PLC kunye ne-I / O inkqubo yokuphepha ukutshatyalaliswa kwezixhobo zokufakelwa kombane.

3. Qinisekisa indawo yokufakela

Ngokucwangcisa inkqubo yokulawula, imodyuli ifakwe kwindawo kwiqela lemodyuli ye-1769 I / O.

4. Imodyuli ifakiwe

Ukulungelelanisa i-1769 i-connector yebhasi, faka imodyuli kwimodyuli esecaleni kwaye utshixe i-buckle ukuqinisekisa ukuba uxhumano lukhuselekile.

5. Iingcingo zomqondiso

Qhagamshela indawo ngokwenkcazo ye-terminal 4 ~ 20 ma / 0 ~ 20 ma isignali yangoku, iqinisekisile ukuba i-polarity kunye ne-shielding grounding ichanekile.

6. Ubumbeko lwesoftware

Yongeza i-1769 IF4I kwi-RSLogix 5000 / Studio 5000 kwaye usete uluhlu lwegalelo, iiparamitha zetshaneli, kunye neSetingi zokucoca.

7. Amandla enkqubo

Buyisela unikezelo lwamandla, jonga izibane zesibonisi semodyuli kunye nolwazi lokuxilonga umlawuli.

8. Ukukhangela umqondiso

Ixabiso lokufunda igalelo eliqhelekileyo uphawu lwangoku, qinisekisa ukuba i-PLC iyahambelana negalelo langempela, ukugqiba ukulungisa ingxaki.

Iingenelo ezingundoqo

Ukufunyanwa kwe-analog echanekileyo ephezulu: inkxaso ye-industrial esetyenziswa ngokuqhelekileyo i-4 ~ 20mA imiqondiso yangoku, ukuphucula ukuzinza kokulinganisa.

Iziteshi ezi-4 ezizimeleyo ezizimeleyo: ukuhlangabezana neemfuno zezixhobo ezininzi kunye nokubeka iliso kwiparamitha eninzi ngexesha elinye.

Ikhono elinamandla lokuchasana nokuphazamiseka: lilungele indawo enzima yombane kwindawo yoshishino.

Uqwalaselo oluguquguqukayo: Ukuxhasa uluhlu oluhlukeneyo lwegalelo Izicwangciso ukuququzelela ukuhlanganiswa kwenkqubo.

Uxhumo olungenamthungo lweCompactLogix: lufakwe ngokuthe ngqo kwiinkqubo ze-1769 I / O, ukunciphisa ubunzima be-wiring.

Iiparamitha eziphambili

Kutheni ukhethe thina

I-Feimu Technology ibonelela ngeendawo ezinqabileyo zolawulo lwamashishini eziye zayekiswa nguRockwell kwimarike yehlabathi. Ikhetha ngokungqongqo imithombo yonikezelo ka-Allen Bradley 1769 IF4I iimodyuli zangoku ze-analog yobuninzi, isusa iimodyuli ezihlaziyiweyo kunye nezilungisiweyo ezinesampulu yokuncipha okanye iziphene zetshaneli. Ngaphambi kokuba imodyuli nganye ithunyelwe, zonke iitshekhi zokuchaneka kwetshaneli kunye neemvavanyo zokuzinza kwe-backplane zigqityiwe ukunqanda iimpazamo ezifihliweyo ezinjengokufunda ukuhamba kunye nokuqokelela okungaqhelekanga. Iirekhodi zovavanyo ezipheleleyo zinikezelwe. Ixhasa izisombululo ezahlukeneyo zolungiselelo lwamazwe ngamazwe kwaye inokubonelela ngeseti epheleleyo yamaxwebhu amasiko orhwebo lwangaphandle. Uqhelene nobunzima bokugcinwa kwezixhobo zakudala zeCompact I/O phesheya kolwandle, inokunika uncedo olusisiseko lobugcisa ukujongana neengxaki ezikwisiza ezinxulumene nokuqokelelwa kobuninzi be-analog kunye nokunciphisa ilahleko yemveliso ebangelwa kukungacwangciswanga kwexesha lokuphumla.

FAQ

Q1. Zeziphi izixhobo ezinokuqhagamshelwa?

Abathumeli boxinzelelo;

Iimitha zokuhamba;

Izinzwa zenqanaba;

Abathumeli bobushushu;

Izixhobo zokubona ishishini kunye nezinye izixhobo ezikhupha iimpawu zangoku.

Q2. Ziziphi izizathu zokufunda okungaqhelekanga kweempawu ze-4-20mA?

Ukubuyela umva uxhulumaniso lomgca womqondiso;

Ukunikezelwa kwamandla okungaqhelekanga kwinzwa;

Ubumbeko olungalunganga loluhlu lwegalelo;

Iitheminali zoqhagamshelo ezikhululekile;

Ukuphazamiseka kombane.

Q3. Uphathwa njani ukuba i-PLC ayinakuqaphela?

Khangela ukuba imodyuli ifakwe kakuhle;

Qinisekisa ukuba uqhagamshelo lwebhasi ye-1769 luqhelekileyo;

Jonga i-Studio 5000 / RSLogix 5000 uqwalaselo;

Jonga ulwazi lwempazamo yomlawuli.

Q4. Indlela yokuphucula ukuchaneka komlinganiselo?

Sebenzisa umthombo wesignali we-4-20mA ozinzileyo;

Seta ngokuchanekileyo uluhlu lwegalelo;

Sebenzisa iintambo ezikhuselekileyo;

Yenza umsebenzi olungileyo kwisiseko sendawo;

Lungisa iiparamitha zokucoca ngokweemfuno ezikwisiza.

Q5. Ngaba umbane owahlukileyo uyafuneka?

Imodyuli inikwe amandla yiCompactLogix 1769 system backplane. Iimpawu ze-analog kwisayithi kufuneka zibonelelwe ngezixhobo zangaphandle.

Iinkalo zesicelo

1. Inkqubo yokulawula inkqubo

Ukuqokelelwa koxinzelelo, ukuhamba, kunye neempawu zenqanaba;

Ukubeka iliso ngexesha lokwenyani kwinkqubo yokuvelisa.

2. Umgca weMveliso oSebenzayo

Ukuqokelelwa kwemiqondiso yempendulo yoluvo;

Isetyenziselwa ukukhangela ubume besixhobo kunye nolawulo oluvaliweyo.

3. Unyango lwamanzi kunye noShishino lwaMandla

Ukubeka iliso kuxinzelelo, ukuhamba, kunye neeparamitha zombane;

Ukuphunyezwa kolawulo oluzenzekelayo.

4. Izixhobo zoomatshini

Ukuqokelelwa kweempawu zeqondo lokushisa kunye noxinzelelo lwe-transducer;

Isetyenziselwa uhlalutyo lwemeko yokusebenza kwesixhobo.

5. IProjekthi yoLungiso lwemizi-mveliso

Ukutshintshwa kweemodyuli zakudala ze-analog;

Ukuphuculwa kwesakhono sokufumana idatha yenkqubo yeCompactLogix.

Amatyala oMthengi kunye noPhononongo

Umzi-mveliso wamanzi waphesheya weekhemikhali u-Allen Bradley 1769 IF4I isampuli zemodyuli zibonise ukutenxa, ufundo olungaqinisekanga lokuhamba kunye nenqanaba ledatha, kunye nokungakwazi ukwenza inkqubo yolawulo ngokwesiqhelo. Umthengi uthenge imodyuli yokuqala efanelekileyo kwiFaimu Technology, yagqiba ukuhanjiswa komda kunye nokutshintshwa. Iisampulu yetshaneli nganye ibuyele ekuchanekeni nasekuzinzeni, kwaye izixhobo zaphinda zaqalisa imveliso eqhelekileyo.

Uphononongo lwabathengi: Kunzima kakhulu ukufumana imodyuli yobungakanani be-analog esemgangathweni yangoku. Emva kokuyifumana, siyifake ngokuthe ngqo kwaye sayisebenzisa, eyasinceda ukuba sisombulule ingxaki yesampula yedatha engachanekanga.
