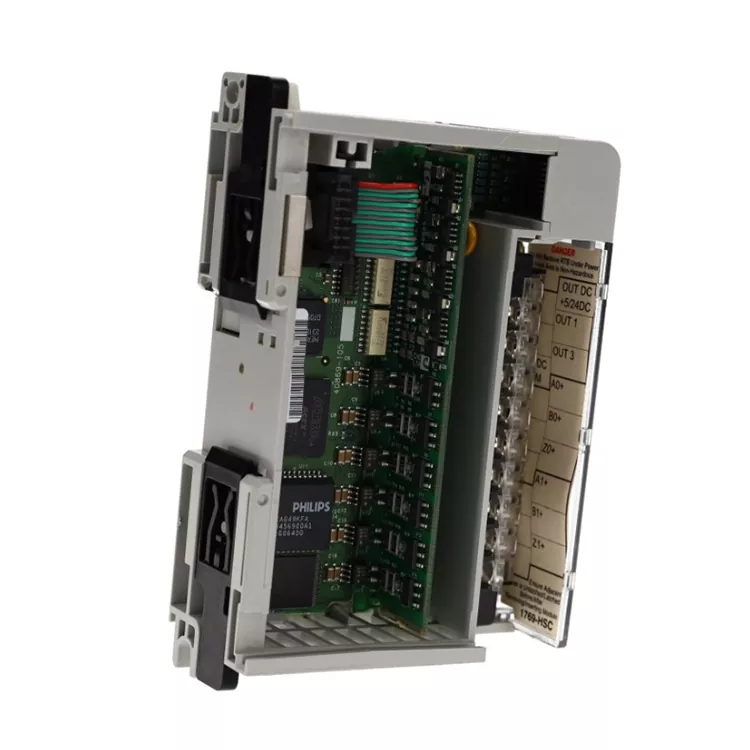

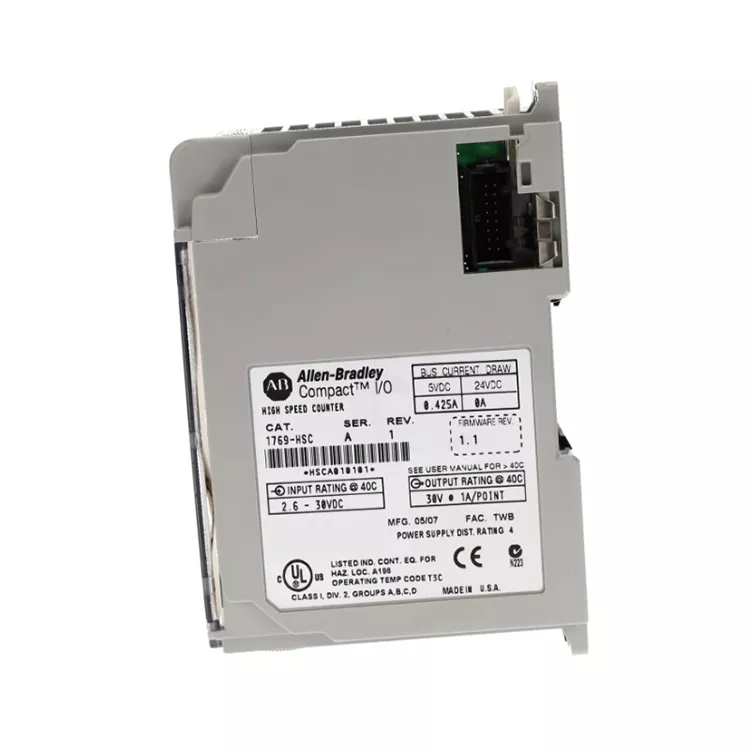

Allen Bradley 1769 HSC

U-Allen Bradley 1769 HSC i-encoder ye-interface kunye ne-pulse sensor zisetyenziselwa ukufikelela umlinganiselo wesantya, umlinganiselo wobude kunye nokulawula indawo. Zisetyenziswa ngokubanzi kwipakethe yaphesheya, ukusetyenzwa kwemathiriyeli, kunye nokuhambisa uhlobo lwezixhobo ezizenzekelayo zolawulo lwe-inventri. I-Feimu Technology, njengomthengisi ochwepheshile ojolise kwiimarike zaphesheya kolwandle, igqibezele ukufunyanwa kwepulse kunye novavanyo olupheleleyo lwebhasi yenqwelo moya kwimodyuli yokugcina. Iphelisa ukuguga kunye nokuhlaziywa kweempahla zemijelo yokufaka, kwaye iimpahla ezingenayo zingafakelwa ngokuthe ngqo kwaye zitshintshwe ukuze zihlangabezane neemfuno zokulungisa ngokukhawuleza kwiifektri zaphesheya.

Ulwakhiwo lwangaphakathi

U-Allen Bradley 1769 HSC yimodyuli yekhawunta yesantya esiphezulu yothotho lweCompactLogix 1769. Yamkela uyilo lwesakhiwo sokufumana umqondiso wesantya esiphezulu + ukusetyenzwa kwedatha + i-1769 yonxibelelwano lwebhasi ngaphakathi, kwaye isetyenziselwa ukugqiba ukufumana umqondiso we-pulse, ukubala ukubala, kunye notshintshiselwano lwedatha yomlawuli.

1. I-High-speed input interface circuit

2. Iyunithi yokubala ngesantya esiphezulu

3. Microprocessor / control logic unit

4. Ukugcinwa kwedatha kunye neyunithi ye-cache

5. 1769 ujongano lwebhasi

6. Ulawulo lwamandla kunye nesekethe yokukhusela

Ukuhamba kokwenziwa kwedatha

I-encoder / izixhobo ze-pulse → ujongano longeniso olukwisantya esiphezulu → Iyunithi yokulungisa ukubala → Icache yedatha kunye nokuxilongwa → 1769 ujongano lwebhasi → Isilawuli seCompactLogix

Inzuzo engundoqo

Ikhono lokubala ngesantya esiphezulu: Ukukwazi ukucubungula izibonakaliso ze-pulse ze-high-speed, ezifanelekileyo kwizixhobo zokuvelisa ngesantya esiphezulu.

Ukufumana idatha yexesha langempela: Ukunciphisa ukulibaziseka kokuskena kwe-PLC, kuphucula ukubala kunye nokuchaneka kokuchongwa kwendawo.

Inkxaso yosetyenziso lwe-encoder: Inokudityaniswa kwii-encoders ezongezelelweyo ukufikelela kwisantya kunye nokubeka impendulo.

Ukunciphisa umthwalo we-CPU: Imodyuli igqiba ngokuzimeleyo imisebenzi yokubala ngesantya esiphezulu, iphucula isantya sokuphendula inkqubo.

Ukulungelelaniswa kweCompactLogix: Inokufakwa ngokuthe ngqo kwinkqubo ye-1769 ye-I / O, ilula ukuyila inkqubo.

Iiparamitha ezibalulekileyo

Inkqubo yoFakelo

1.System Confirmation → Qinisekisa ukuba uAllen Bradley 1769 HSC ihambelana neCompactLogix 1769 system control kwaye umlawuli uyayixhasa le modyuli.

2.Dibanisa amandla → Cima i-PLC, imodyuli yamandla kunye ne-I / O inkqubo yokuphepha umonakalo obangelwa ukufakela okuphilayo.

3.Ukumisela indawo yokufakela, ngokusekelwe kwisicwangciso se-I / O yenkqubo, faka i-1769 HSC kwiimodyuli ze-1769 ze-I / O zendawo echaziweyo.

I-4.Ukufakwa kwemodyuli kunye nokulungelelaniswa kwe-1769 isixhumi sebhasi, imodyuli kwiimodyuli ezikufutshane, ukuvala i-clasp yekhadi lemodyuli, qinisekisa ukuba uxhumano lomatshini luqinile.

5.Iingcingo zommandla → Qhagamshela imiqondiso yokufaka enje ngee-encoder kunye ne-pulse sensors ngokohlobo lwesixhobo, kwaye uqinisekise ukuba umbane, umgca wesiginali kunye nomgca wekhaka ziqhagamshelwe ngokuchanekileyo.

6.Ukucwangciswa kwesofthiwe -> kwi-RSLogix yongeza i-1769-5000 / i-Studio 5000 imodyuli ye-HSC, setha imo yegalelo kunye neeparitha zokubala kunye noqwalaselo lonxibelelwano.

7.Uvavanyo lokubuyisela ukunikezelwa kwamandla, inkqubo inikwe amandla kwi-diagnostic information check module state indicator kunye nomlawuli.

8.Uqinisekiso lomsebenzi → Imiqondiso yokufaka i-pulse kwaye uqinisekise ukuba ixabiso lokubala, impendulo yendawo, kunye nonxibelelwano lwedatha luqhelekile.

Kutheni ukhethe thina

ITekhnoloji yeFeimu ibonelela ngokuyekwa kweRockwell kunye neendawo ezinqabileyo zolawulo lwemizi-mveliso kwihlabathi liphela. Kwiimodyuli zokubala ngesantya esiphezulu njenge-1769 HSC, ilawula ngokungqongqo ukubonelela kwaye ngokuqinisekileyo ayibandakanyi iimodyuli ezihlaziyiweyo okanye ezilungisiweyo.

Isiqwenga ngasinye sokuphuma sigqitywe ngaphambi kokuba imodyuli yokufumana umqondiso we-pulse, umlinganiselo webhasi ye-intanethi ye-backplane, ugweme ukuguga kwesiteshi, ukubala i-pulse kunye nezinye iimpazamo eziphindaphindiweyo, kunye neerekhodi zokuvavanya ezihambelanayo.

Sixhasa izisombululo ezahlukeneyo zolungiselelo lwezizwe ngezizwe kwaye sinokubonelela ngeseti epheleleyo yamaxwebhu esibhengezo sezithethe kurhwebo lwangaphandle.

Siyazi kakuhle iindawo ezibuhlungu zokugcinwa kwezixhobo ze-Compact I / O zakudala phesheya kwaye zinokubonelela ngoncedo olusisiseko lobugcisa ukunceda abathengi ngokukhawuleza ukusingatha iimpazamo kwisayithi ezinxulumene nokulinganisa isantya kunye nokubala, ukunciphisa ixesha lokunciphisa izixhobo kunye nokunciphisa ilahleko yemveliso kangangoko kunokwenzeka.

FAQ

Q1. Isetyenziswa ikakhulu kweziphi iintlobo zokubona umqondiso?

Isetyenziswa ikakhulu kwi-encoder pulses, i-proximity switch pulses, imiqondiso yokulinganisa isantya, kunye nezinye i-high-speed digital pulse signal acquisition.

Q2. Yintoni umahluko phakathi kwemodyuli eqhelekileyo yobungakanani bedijithali?

Imodyuli yedijithali eqhelekileyo ixhomekeke kwi-PLC yokuskena imiqondiso yomjikelezo wokuskena, kwaye i-1769-HSC inamandla okusebenza okuzimela ngokubala okuhamba ngesantya esiphezulu, inokusabela ngokukhawuleza kwiinguqu ze-pulse ze-high-speed, ukuphucula ukubala ukuchaneka.

Q3. Inkxaso yesicelo sekhowudi?

Inkxaso. Imodyuli ingasetyenziselwa ukufunyanwa kwesignali ye-encoder eyongeziweyo, ukuzaliseka kokubona indawo, ukulinganisa isantya kunye nokulawula ukunyakaza kwemisebenzi yokuncedisa.

Q4. Yintoni enokuba ngunobangela wobalo olungaqhelekanga?

Ubuninzi bomqondiso wegalelo budlula uluhlu lwesakhono semodyuli;

Impazamo yoqhagamshelwano lweKhowudi;

Impazamo yoqwalaselo lwepateni yegalelo;

Ukukhusela umhlaba okukhokelela ekuphazamisekeni komqondiso;

Iiparamitha zoqwalaselo ze-I/O azihambelani.

Q5. Kuthekani ukuba i-PLC ayinakubonwa emva kofakelo?

Imodyuli ifakwe ngokufanelekileyo kwibhasi ye-1769 I / O;

Nokuba imodeli yemodyuli yongezwa kwisilawuli se-I/O kuqwalaselo;

Nokuba unxibelelwano lwebhasi luqinile;

Nokuba uguqulelo lomlawuli kunye nokuhambelana kwemodyuli kuyahlangabezana neemfuno.

Ityala lomthengi kunye novavanyo

Umzi-mveliso we-Allen Bradley wokulungisa izixhobo phesheya kolwandle ubenemodyuli ka-Allen Bradley 1769 HSC ukusilela, kwaye ukubalwa kwesixhobo kwakusoloko kungachanekanga, okubangela ukuba kubekho ii-alam rhoqo kumgca wemveliso. Iimodyuli zangaphambili ezifanelwe yi-Feimu Technology zathengwa, kwaye emva kokutshintshwa kwezinto ezinqamlekileyo, ukufunyanwa kwe-pulse kubuyele ngokuqhelekileyo, kwaye izixhobo azizange zibe naluphi na ukuphazamiseka kokubala.

Uvavanyo lwabathengi: kunzima ukufumana ngoko kwimodyuli yokubala ngesantya esiphezulu, ukufika kwempahla ngokuthe ngqo, kunokusinceda ukusombulula izixhobo zokubala azivumelekanga ukuba zibe yinkathazo enkulu.
