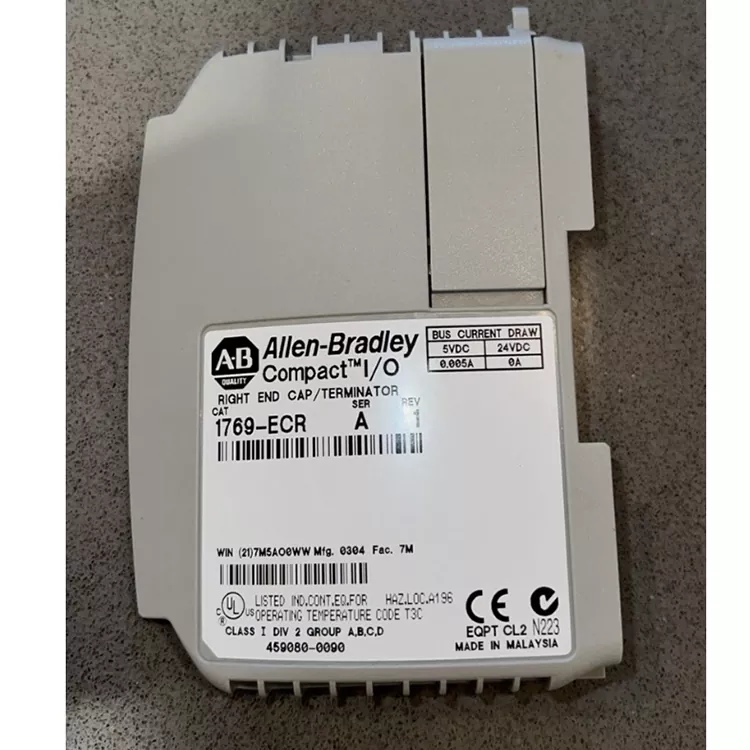

Allen Bradley 1769 ECR

I-Allen Bradley 1769 ECR ikwicala lasekunene lemodyuli ka-1769 I/O kwaye isetyenziselwa ukugqibezela isikhululo sebhasi yeFlexBus ehambelanayo, iqinisekisa imfezeko yeempawu zenqwelomoya. Isetyenziswa ngokubanzi kwimveliso yaphesheya, unyango lwamanzi, kunye nokupakishwa kwezixhobo ezizisebenzelayo. Njengomthengisi ochwepheshile ojolise kwiimarike zaphesheya kolwandle, i-Feimu Technology igqibe ukuchongwa kwenqwelo-moya engasemva kunye nokuqaphela uqhagamshelo lwebhasi kuzo zonke iimveliso ezingenayo. Ikhusela iimpahla kunye nabafowunelwa abadala okanye abonakeleyo kunye nabahlaziyiweyo. Zakuba zifunyenwe, ezi mveliso zinokudityaniswa ngokuthe ngqo kwaye zisetyenziswe kumzi-mveliso, zihlangabezana neemfuno zokulungiswa ngokukhawuleza kunye nokutshintshwa kwemizi-mveliso yaphesheya.

Iiparamitha eziphambili

Inkqubo yoFakelo

1. Ukuqinisekiswa kwenkqubo kunye no-Allen Bradley 1769 ECR kunye neCompactLogix 1769 Compact I/O inkqubo ehambelanayo.

2. Susa umbane wokuvala umlawuli wamandla kunye ne-I / O inkqubo, ugweme ukusebenza kwamandla.

3. Qinisekisa indawo yokufakela kwaye ufake i-ECR 1769 kulo lonke i-1769 eyona nto ilungileyo ekupheleni kweqela le-module ye-I / O.

4. Uqhagamshelo lwemodyuli - i-1769 isiqhagamshelo sebhasi, iya kutyhala kwaye itshixe imodyuli esisigxina yokuphela kwekhava.

5. Khangela i-install state ukuqinisekisa i-cover kunye neyokugqibela iimodyuli ze-I / O ezixhunyiwe ngokusondeleyo, i-card buckle lock iqhelekile.

6. Ukubuyisela ukunikezelwa kwamandla, inkqubo inikwe amandla kwi-check CompactLogix isilawuli kunye ne-I / O state.

7. Ukuqinisekiswa komsebenzi wokuqinisekisa ukuba uchonga umlawuli we-I / O ulungelelaniswe ngokufanelekileyo, inkqubo yonxibelelwano kunye nesimo sokusebenza esiqhelekileyo.

Indima engundoqo

Ngo-1769 I/O ukhuseleko lwesikhululo sebhasi: ifakelwe kwinkqubo eyona nto ilungileyo, gqibezela uqhagamshelo lwe-bus terminal.

Qinisekisa uzinzo lonxibelelwano: ukuthintela ukungahambi kakuhle konxibelelwano lwebhasi yeCompact I/O okubangelwa kukuvuleka ekugqibeleni.

Lula ulwandiso lwenkqubo: ifanelekile kwimodyuli yofakelo lwenkqubo yeCompactLogix.

Ukugcinwa okulula: isakhiwo esilula, ukufakwa ngokukhawuleza kunye nokutshintshwa.

FAQ

Q1. Ingaba ungene kwiimodyuli ze-I/O?

Akunjalo. U-Allen Bradley 1769 ECR awuboneleli ngedijithali, i-analog okanye umsebenzi wonxibelelwano, isetyenziselwa kuphela ukukhusela isistim kunye nesikhululo sebhasi.

Q2. Ukuba akukho kufakelo, kunokuba nawuphi umphumo?

I-1769 I / O ibhasi ayinakukwazi ukulungisa ukupheliswa, kunokubangela ukuba umlawuli angakwazi ukuchonga uqwalaselo lwe-I / O, ngaphandle konxibelelwano okanye ukusilela kwenkqubo.

Q3. Xa ufaka, ngaba ufuna uqwalaselo lwesoftware?

Awudingi ukwahlula ubumbeko lwesoftware. Iyingxenye ye-terminal ye-hardware, inkqubo igqibezela ngokuzenzekelayo uqhagamshelo lwebhasi emva kofakelo oluchanekileyo.

Q4. Ngaba inokufakwa ngelixa ivuliwe?

Ayikhuthazwa. Faka okanye ususe yangaphambili kufuneka uvale unikezelo lwamandla enkqubo, uthintele imodyuli yomonakalo okanye inkqubo yolawulo anomalies.

Q5. Umntu unokugqiba njani ukuba ukufakela kuqhelekile?

Khangela ukuba imodyuli ifakwe ngokuqinileyo, ukuba iziqhagamshelo zibandakanyeke ngokupheleleyo, kwaye uqinisekise ukuba inkqubo ye-I / O ayinayo impazamo ngokuxilongwa komlawuli weCompactLogix.

Kutheni ukhethe thina

Sijolisa kubonelelo lwehlabathi jikelele lwamacandelo anqabileyo e-Rockwell Compact I/O uthotho, silawula ngokungqongqo imithombo yobonelelo, kwaye sithintele iimveliso zomgunyathi kunye nezihlaziyiweyo ukuba zingaphumi. Into nganye iza nerekhodi yovavanyo kwaye ixhasa amajelo amaninzi olungiselelo lwamazwe ngamazwe. Inokudityaniswa neseti epheleleyo yamaxwebhu amasiko orhwebo lwangaphandle. Siqhelene neemeko zokugcinwa kwezixhobo zaphesheya kwaye sinokubonelela ngeempendulo ezisisiseko zobugcisa ukunceda abathengi baphesheya ngokukhawuleza baphathe iingxelo zempazamo zesikhululo sebhasi kunye nokunciphisa ixesha lokuphumla kwezixhobo.

Iinkalo zesicelo

Imigca yokuvelisa i-industrial automation

Ukupakisha izixhobo zoomatshini

Iinkqubo zokulawula izixhobo zoomatshini

Iinkqubo zokuhanjiswa kwezinto

Iiprojekthi zokulungiswa nokugcinwa kwemizi-mveliso

Amatyala abathengi kunye novavanyo

Umzi-mveliso waphesheya kweelwandle ubenomonakalo ogqibeleleyo wokhuseleko kwiqela le-I/O, kwaye inkqubo iqhubekile nokuxela iimpazamo ezingasemva. Indawo ye-I/O ayikwazanga ukuqaphela. I-Fumei Technology yathenga i-ECR yokuqala ye-1769 kwaye yagqiba ukufakela ngokuhambisa imida. Unxibelelwano lwe-backboard lwabuyela kwisiqhelo, kwaye impazamo yapheliswa ngokuthe ngqo.

UmThengi: Kunzima ukuthenga amaqweqwe oqobo athembekileyo kwimarike. Ukuzifumana ngokungqalileyo kusenza sikwazi ukuzisebenzisa. Oku kwasinceda ukuba sisombulule ingxaki enzima yengxelo yempazamo ye-I/O ye-backboard.

Indlela yokumisela ubunyani emva kokufunyanwa

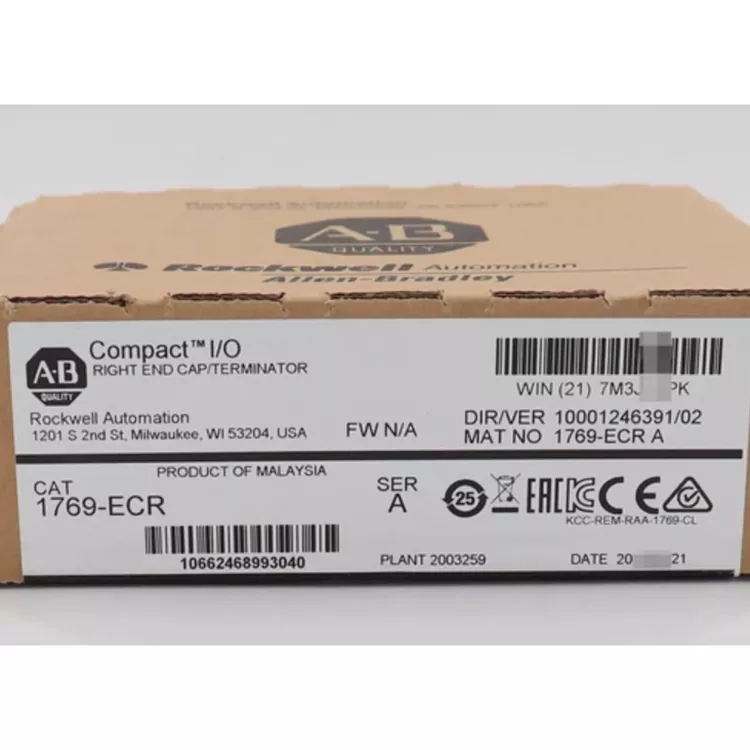

1. Jonga iilebhile zemveliso

Qinisekisa ukuchongwa kwemodeli njengo-Allen Bradley 1769 ECR.

Jonga ilogo ye-Allen Bradley/Rockwell Automation, iifonti, umgangatho woshicilelo lwelebhile.

Khangela ulwazi lwemodeli luhambelana nomyalelo wokuthenga.

2. Jonga inkqubo yokubonakala

Jonga umbala weqokobhe lemodyuli, udini, iqhosha kunye neenkcukacha zokungunda.

Khangela nakuphi na ukutshiza kwakhona, ukugqunywa kwelebhile, ukuqhaqha okanye ukukhanda amanqaku.

Imveliso yokwenyani idla ngokuba nomsebenzi oqhelekileyo, akukho zibhulu zicacileyo, i-deformation okanye i-splicing marks.

3. Jonga ulwakhiwo loqhagamshelo

Jonga ukuba iitheminali zoqhagamshelo zebhasi ye-1769 zigqityiwe.

Qinisekisa ukuba akukho ukugoba, i-oxidation kunye nokukhutshwa kwepini yokuxhuma.

Jonga ukuba i-clasp mechanism iqhelekile.

4. Ukuqinisekisa ukuhambelana kofakelo

Faka i-1769 ECR kwindawo efanelekileyo ye-CompactLogix 1769 I / O inkqubo.

Khangela ukuba imodyuli iqhagamshelwe ngokuqinileyo kumnqongo we-I/O omeleneyo.

Qinisekisa ukuba ulwakhiwo lwesixokelelwano lufakwe ngokuchanekileyo.

5. Qinisekisa ukusebenza kwenkqubo

Jonga imeko yomlawuli weCompactLogix emva kombane.

Qinisekisa ukuba akukho zivusi zingaqhelekanga kuqwalaselo lwe-I/O.
