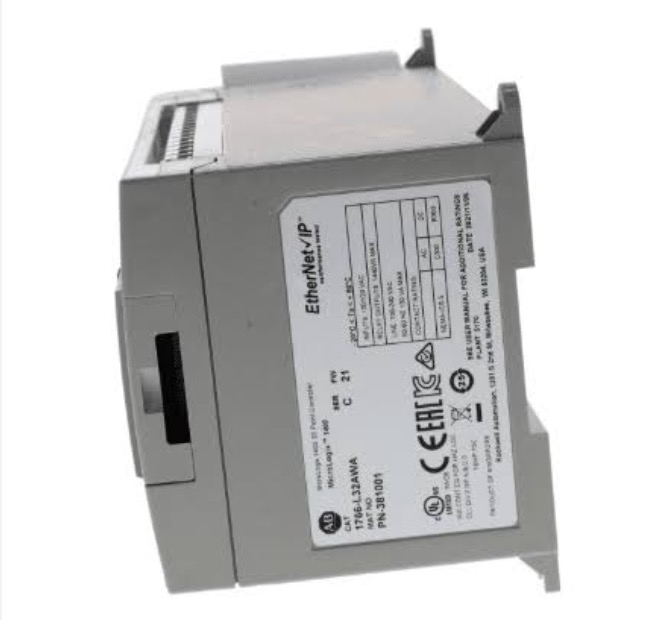

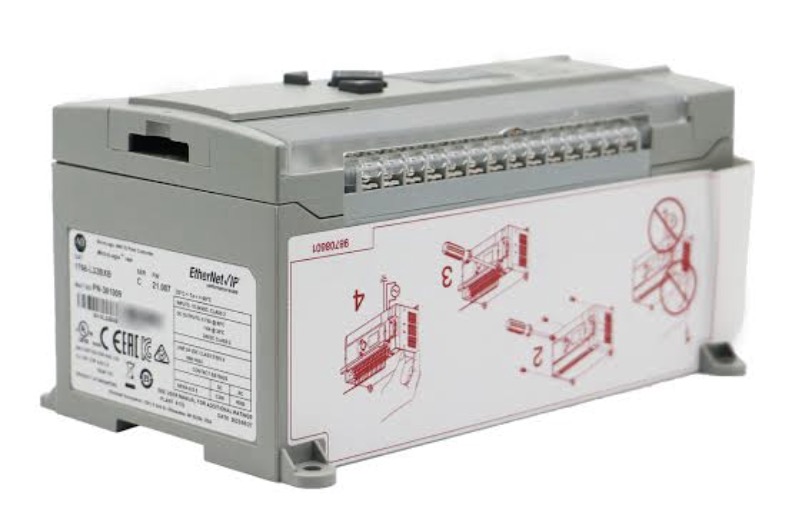

Allen Bradley 1766-L32AWAA

Njengomthengisi oqeqeshiweyo, i-Feimu Technology ikunika le Allen Bradley 1766-L32AWAA. Le yi-CPU ephambili ye-MicroLogix 1400 series. Ngenkqubo yovavanyo engqongqo, silinganisa amagalelo omqondiso awohlukeneyo kwindawo eyiyo ukuqinisekisa ukuba izibuko ze-I/O, izibuko zonxibelelwano kunye neprosesa zonke zisebenza ngokufanelekileyo. Ukuba ufuna naluphi na uncedo, nceda uzive ukhululekile ukuqhagamshelana nathi nangaliphi na ixesha.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Feimu Technology, njengomnye wababoneleli e-China, inikeza i-Allen Bradley 1766-L32AWAA PLC. Le yimodyuli ye-PLC enamandla kunye neyomeleleyo esebenzisa umbane we-AC, exhotywe ngamanqaku angama-32 e-I / O kunye ne-interface edibeneyo ye-Ethernet. Ukuba izixhobo zakho zisasebenzisa isilawuli esidala kwaye unqwenela ukuphucula, okanye ukuba wenza iprojekthi entsha kwaye ufuna i-PLC encinci ethembekileyo, ke le mveliso ngokuqinisekileyo lukhetho lwakho olufanelekileyo. Iyafikeleleka kwaye kulula ukuyisebenzisa, kwaye sihlala sinayo kwisitokhwe.

Intshayelelo yokusebenza

Imodeli ye-Allen Bradley 1766-L32AWAA inesantya esikhawulezayo sekhompyuter xa kuthelekiswa nothotho lwangaphambili lwe-1100, olukwaziyo ukuphatha ngokufanelekileyo imisebenzi enengqondo entsonkothileyo. I-port ye-Ethernet eyakhelwe-ngaphakathi isusa isidingo sokuthenga imodyuli yonxibelelwano oluzinikeleyo, ikuvumela ukuba udibanise ngokuthe ngqo kwinethiwekhi kunye neprogram okanye ukubeka iliso ngekhompyutheni ephezulu. Ixhasa ukuhlelwa kwe-intanethi kunye neemodyuli ezahlukeneyo zokwandisa. Nangona ubukhulu bayo buncinci, inokuguqula inkqubo ngexesha lokusebenza komatshini kwaye iphathe imisebenzi emikhulu ngaphandle kokumisa umatshini.

IParameter yeMveliso

Igama lemveliso	Allen Bradley 1766-L32AWAA
I/O yedijithali	Igalelo lamanqaku ali-18 / amanqaku ali-14 esiphumo (32 iyonke)
I-Analog I/O	Igalelo lemijelo emi-4 / imveliso yamajelo ama-2 (i-6 iyonke)
Amazibuko oNxibelelwano	1 x RS-232/485, 1 x Ethernet (10/100BaseT)
Inkumbulo yomsebenzisi	10 KB
Isantya sokusebenza	0.12 ms/K Umyalelo
Ukunikezwa Amandla	120-240V AC

Kutheni ukhetha thina?

Sinikezela ngobuninzi beemveliso ze-AB ezipakishwe kwifektri yokuqala, ezinoluhlu olubanzi lweemodeli. Sineqela lobuchwephesha elenziwe ziingcali ezibandakanyekayo kuzo zonke iinkqubo zangaphambi kokuthengisa kunye nasemva kokuthengisa. Singacebisa imodeli efanelekileyo ngokusekelwe kwisixhobo sakho. Kwimiba yobuchwephesha efana nokubhideka kwee-wiring okanye ukukhuphela inkqubo, sinokunika isikhokelo esikude ngeefoto okanye ngeefowuni, siqinisekisa amava okuthenga kwindawo enye kubathengi bethu.

Izatifikethi eziluncedo

U-Alan Bradley 1766-L32AWAA yi-MicroLogix 1400 PLC ephezulu eyenziwe ngokukodwa kwiinkqubo zokulawula ezincinci kunye neziphakathi. Ixhotywe ngobuninzi bedijithali kunye ne-analog ye-I / O, ixhasa i-EtherNet / IP kunye ne-RS-232 yonxibelelwano yonxibelelwano, kwaye inokusetyenziswa ngokuguquguqukayo kwi-complex real-time control kunye neemeko zokufumana idatha. Idlulise iziqinisekiso ezigunyazisiweyo zamazwe ngamazwe ezifana ne-UL, i-cUL, kunye ne-CE, ihlangabezana ngokupheleleyo nemigangatho engqongqo yokhuseleko kunye neemfuno zokuhambelana ne-electromagnetic, ukubonelela abasebenzisi ngesiseko esizenzekelayo esinamandla kwaye sikhuselekile kwaye singenaxhala.

I-Ethernet eyakhelwe-ngaphakathi-uQhagamshelwano lweNethiwekhi eNgqo

I-1766-L32AWAA ine-port ye-Ethernet eyakhelweyo. Le yenye yeenzuzo zayo eziphambili kwiimodeli ezindala zeMicroLogix ezifuna iimodyuli zonxibelelwano ezahlukeneyo.

Iimpawu ze-Ethernet:

Isantya:10/100 Mbps ngokuzenzekelayo-thethwano.
Inkqubo yomthetho:I-EtherNet/IP kunye ne-TCP/IP.
Ukucwangcisa:Uqhagamshelo oluthe ngqo kwi-RSLogix 500 yokufakwa kwenkqubo kunye nokukhuphela.
Uqhagamshelwano lweHMI:Qhagamshela kwiPanelView okanye kwiPC-based HMIs ngeEthernet.
Ukujongwa okude:Ubumbeko lweseva yewebhu ekhethiweyo yokujonga ubume obukude.

Amanyathelo okuseta asisiseko:

Qhagamshela intambo ye-Ethernet kwizibuko kwi-PLC.
Vula i-RSLogix 500. Yiya kwiipropati zomlawuli.
Khetha i-Channel 1 tab (Ethernet).
Ngenisa idilesi ye-IP, i-subnet mask, kunye nedilesi yesango.
Khuphela ubumbeko kwi-PLC.
Qinisekisa ngokucofa i-PLC kwiPC.

Ingcebiso yoyilo lwenethiwekhi:Yabela idilesi ye-IP engatshintshiyo kwi-PLC. Oku kuqinisekisa ukuba idilesi ayitshintshi emva kwemijikelo yamandla. Ukuba inethiwekhi isebenzisa i-DHCP, gcina idilesi ye-IP kwiseva ye-DHCP kwidilesi ye-MAC ye-PLC.

I-Analog eyakhelwe-ngaphakathi ye-I / O - Akukho Iimodyuli ezihlukeneyo ezifunekayo

I-1766-L32AWAA ibandakanya igalelo le-analog kunye neziphumo ezakhiwe kumlawuli. Oku konga indawo yephaneli kwaye kunciphisa iindleko zecandelo.

Uphawu	Inkcazo	Isicelo
Igalelo leAnalog	Iitshaneli ezi-4, i-0-10V DC	Ubushushu, uxinzelelo, iinzwa zokuqukuqela
Iziphumo zeAnalog	Iitshaneli ezi-2, i-0-10V DC	Ulawulo lwesantya seVFD, ulawulo lwendawo yevalvu
Isigqibo	I-10-bit	Ifanelekile kwizicelo ezininzi zemizi-mveliso

Usetyenziso oluqhelekileyo lwe-analog eyakhelwe-ngaphakathi:

Ulawulo lobushushu:Xhuma i-0-10V inzwa yobushushu kwigalelo le-analog. Sebenzisa i-PLC ukulawula isifudumezi okanye ivalve yokupholisa.
Ukujongwa koxinzelelo:Qhagamshela i-0-10V yokuhambisa uxinzelelo kwigalelo le-analog. Seta ii-alam zoxinzelelo oluphezulu okanye oluphantsi.
Ulawulo lwesantya:Qhagamshela imveliso ye-analog kwiVFD. Lawula isantya seemoto kwiprogram yePLC.

Ukuthelekisa - Iimodeli zeMicroLogix 1400

Uluhlu lweMicroLogix 1400 lunezinto ezininzi ezahlukeneyo. Imodeli nganye ineendlela ezahlukeneyo ze-I / O kunye neendlela zokubonelela ngombane. Olu thelekiso lukunceda ukuba ukhethe imodeli echanekileyo.

Umzekelo	Ukunikezwa Amandla	I/O yedijithali	I-Analog I/O	Unxibelelwano
1766-L32AWAA	120-240V AC	18 IN / 14 PHUMA	4 NGAPHAKATHI / 2 NGAPHANDLE	Ethernet, RS-232/485
1766-L32BWA	24V DC	18 IN / 14 PHUMA	4 NGAPHAKATHI / 2 NGAPHANDLE	Ethernet, RS-232/485
1766-L32AWA	120-240V AC	18 IN / 14 PHUMA	Akukho nanye	Ethernet, RS-232/485
1766-L32BWA	24V DC	18 IN / 14 PHUMA	Akukho nanye	Ethernet, RS-232/485

Indlela yokukhetha:

1766-L32AWAA:Sebenzisa xa amandla e-AC ekhoyo kwaye i-analog I/O iyafuneka.
1766-L32BWA:Sebenzisa xa amandla eDC ekhona kwaye i-analog I/O iyafuneka.
1766-L32AWA:Sebenzisa usetyenziso lwedijithali kuphela ngamandla e-AC.
1766-L32BWA (akukho analog):Sebenzisa usetyenziso lwedijithali kuphela ngamandla eDC.

Ubume be-LED kunye nokuJonga ingxaki

I-1766-L32AWAA inee-LED ezininzi kwipaneli yangaphambili. Ezi zibonelela ngobume bemeko ngokukhawuleza ngaphandle kwe-terminal yenkqubo.

I-LED	Ubume	Intsingiselo	Isenzo
PWR	Luhlaza	Umlawuli unikwe amandla kwaye usebenza ngokuqhelekileyo.	Akukho ntshukumo ifunekayo.
PWR	Cimile	Akukho mandla okulawula.	Jonga amandla e-AC. Jonga unikezelo lwamandla.
BALEKA	Luhlaza	Umlawuli ukwimo ye-RUN.	Akukho ntshukumo ifunekayo.
BALEKA	Cimile	Umlawuli ukwimo yeNKQUBO.	Tshintshela kwimowudi ye-RUN ukusuka kwi-RSLogix 500.
BALEKA	Ukudanyaza	Umlawuli ukwimo yeNKQUBO enegunya elivuliweyo.	Jonga amandla. Yenza okanye uvale njengoko kufuneka.
Impazamo	Bomvu	Impazamo yomlawuli. I-Hardware okanye impazamo yesoftware.	Jonga ikhowudi yempazamo kwi-RSLogix 500. Sula impazamo okanye amandla okujikeleza.
NGENZA	Lubhelu	Amandla e-I/O ayasebenza.	Phonononga amandla. Susa okanye ugcine njengoko kufuneka.
BAT	Bomvu	Umbane webhetri uphantsi.	Tshintsha ibhetri kwiveki enye.
LINK	Luhlaza	Ikhonkco le-Ethernet liyasebenza.	Akukho ntshukumo ifunekayo.

Ukuqinisekiswa kweMveliso yoBunyani

UAllen Bradley 1766-L32AWAA abalawuli baqhele ukwenziwa umgunyathi. Sebenzisa olu vavanyo ukuqinisekisa ubunyani.

Umbala wephaneli yangaphambili:Abalawuli bokwenene basebenzisa umbala othile we-beige-grey ohambelana nosapho lweMicroLogix. Izinto zomgunyathi zihlala zinomthunzi owahlukileyo okanye ukugqiba okukhazimlayo.
Umgangatho weleyibhile:Iileyibhile zangempela zinokushicilelwa okusisigxina kunye nenombolo yemodeli 1766-L32AWAA ibonakala ngokucacileyo. Iileyibhile zomgunyathi zihlala zinombhalo omfiliba okanye amaxolo emiphethweni.
Ibhlokhi yetheminali:Iibhloko zetheminali zokwenyani zisebenza ngokutyibilikayo. Izinto zomgunyathi zihlala zisebenzisa iplastiki yexabiso eliphantsi enezikrufu ezincamathelayo okanye eziziqwenga.
I-I-Ethernet port:Iiyunithi zokwenyani zinezibuko le-RJ45 elikhuselwe ngentsimbi. Izinto zomgunyathi zihlala zisebenzisa izibuko zeplastiki.
Ubunzima bemodyuli:I-1766-L32AWAA yangempela inobunzima obumalunga ne-0.6 kg. Iinkohliso zihlala zivakala lula.

Kutheni Feimu Technology

I-Feimu Technology yaqala eJiangmen, eGuangdong ngo-2005. Sinikezela ngezixhobo zokuqala zika-Allen Bradley, Siemens, GE, kunye ne-Schneider kubathengi kumazwe angaphezu kwama-30.

Amava eMicroLogix:Sibonelele ngabalawuli beMicroLogix ngaphezulu kweminyaka elishumi. Siyalazi iqonga.
Isitokhwe semeko entsha:Sithengisa iiyunithi ezivaliweyo kwifektri. Akukho malungu asetyenzisiweyo okanye ahlaziyiweyo.
Izixhobo ezivavanyiweyo:Wonke umlawuli uvavanywa ngawo onke amanqaku e-I/O ngaphambi kokuthunyelwa.
Inkxaso esebenzayo:Iqela lethu libandakanya iinjineli eziye zasebenzisa aba balawuli kwizicelo zokwenyani.

Qhagamshelana nathi:
I-imeyile: sales@feimutech.com
WhatsApp: +86 13358323579
Iwebhusayithi esemthethweni: www.feimuplc.com
Ixesha lokuphendula: Kwiiyure ezingama-24. Imibuzo yobugcisa idla ngokuphendulwa kwiiyure ezili-12.
