Allen Bradley 1756-CNB

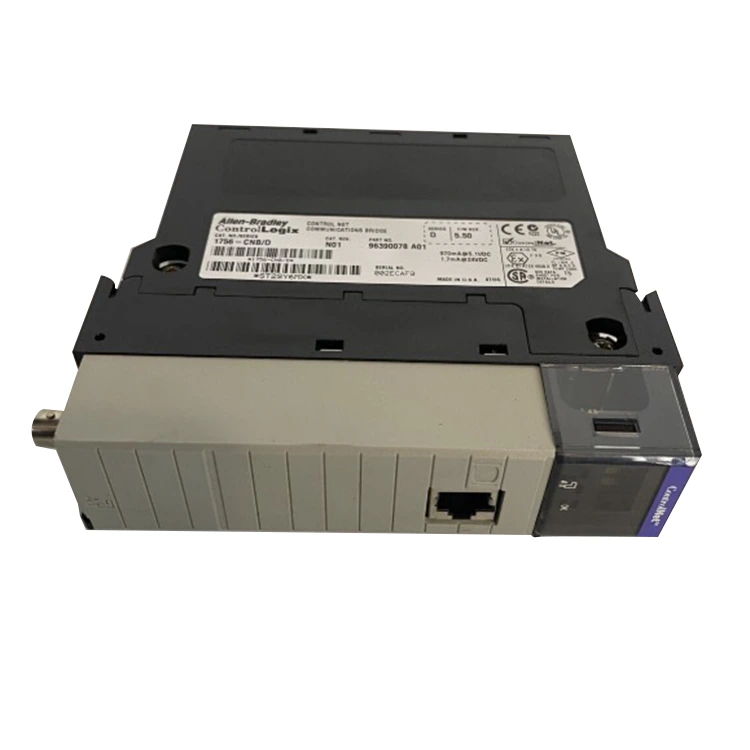

Njengomthengisi oqeqeshiweyo, sikunika le Allen Bradley 1756-CNB. Le yimodyuli yonxibelelwano lwe-ControlNet eyenzelwe ngokukodwa i-ControlLogix 5550/5560/5570 kunye nabanye abalawuli beechungechunge. KwiTekhnoloji yeFeimu, siyaqonda ukuba eyona nto ixhalabisayo yothungelwano lwemizi-mveliso kukungaqiniseki. Nokuba ukulibaziseka kwesibini kunokubangela ukuba umgca wemveliso wonke ume ngxi.

Thumela uMbuzo

Ingcaciso yeMveliso

Inkampani yeFeimu Technology isanda kwazisa imodyuli ebalulekileyo kumaqabane ayo aphesheya kwemizi-mveliso. Njengoko wonke umntu osebenzisa i-Rockwell's PLCs uyazi, ukuba kukho imfuneko yokuseka uxhumano olukhawulezayo noluthembekileyo phakathi kwee-racks ezahlukeneyo okanye phakathi komlawuli kunye ne-IO ekude, ibhasi ye-ControlNet lukhetho oluhle. Kwaye le modyuli ngundoqo wokuphumeza oku. Njengomboneleli ochwepheshile weendawo ezisecaleni, sicebisa le bhulorho yomelele kwaye izinze kakhulu kuwe, ukuze uqinisekise ukuba zonke izixhobo zakho zisebenza ngokuthobelayo kwibhasi enye kwaye ukuhanjiswa kwedatha kuhamba kakuhle kwaye kuthembekile.

Injani intsebenzo?

Ukusebenza kwale Allen Bradley 1756-CNB yomelele. Inomthamo ophezulu wedatha kwaye inokudlulisa zombini imiqondiso yokulawula kunye nedatha kunye neemfuno zexesha eliphezulu kakhulu kwibhasi enye. Isantya salo sokunxibelelana sinokulungelelaniswa kwaye siyakwazi ukulungelelanisa kwi-5M, i-ultra-high-speed transmission, okanye isantya esincinci, kunye nokuguquguquka okuphezulu. Eyona nto iqinisekisayo kukuqiniseka kwayo. Kwinethiwekhi ye-ControlNet, iqinisekisa ukuba idatha ngokuqinisekileyo iya kuhanjiswa ngaphakathi kwexesha elichaziweyo kwaye ayisoze ibe mva njenge-Ethernet eqhelekileyo ngenxa yokuxinana, ebaluleke kakhulu kulawulo lokhuseleko.

Iiparamitha

Series Product	Allen-Bradley 1756-CNB
Uhlobo loNxibelelwano	Imodyuli yoNxibelelwano lwe-ControlNet
Inani lamaZibuko	I-2 x iZibuko ze-BNC (iNkxaso yokuReda)
Ireyithi yoNxibelelwano	5 Mbps
IiNodi ziQhagamshelwe	Ukuya kuthi ga kwi-99 Nodes
Inqwelomoya yangoku	1.2 A @ 5V DC
Ubushushu bokusebenza	0°C ukuya ku-60°C (32°F ukuya ku-140°F)

Inzuzo yemveliso ilele kweziphi iinkalo?

Uninzi lweendawo zokuqhawula ezithengiswayo zinedilesi ebomvu yokutshintsha nokuba ikhululekile, ibambekile, okanye ayinasigqubuthelo sothuli. Apha, phambi kokuthunyelwa, siya kusebenzisa iiarhente zokucoca ezichwepheshile ukusula iqokobhe langaphandle licocekile, siqinisekisa ukuba iilebhile zibonakala ngokucacileyo. Ngaphezu koko, siya kuhlola ngononophelo utshintsho olujikelezayo ukuze siqinisekise ukuba indawo nganye inokusebenza ngokuchanekileyo, nto leyo eyenza kube lula kuwe ukuseta idilesi ye-node kwindawo.

I-ControlNet Basics-Kutheni isabalulekile

I-ControlNet yiprothokholi yothungelwano eqinisekileyo. Ngokungafaniyo ne-Ethernet eqhelekileyo, i-ControlNet iqinisekisa ukuhanjiswa kwedatha ngexesha elimiselweyo. Oku kubalulekile kukhuseleko-olubalulekileyo kunye nezicelo zolawulo lwentshukumo.

Iimpawu eziphambili zeControlNet:

Unxibelelwano oluqinisekileyo:Idatha ihanjiswa ngexesha eliqinisekisiweyo. Akukho kungqubana. Akukho kulibaziseka.
Inkxaso yemidiya engafunekiyo:I-1756-CNB inamachweba amabini e-BNC. Sebenzisa zombini iikhebhula ezingafunekiyo. Ukuba ikhebula elinye liyasilela, unxibelelwano luyaqhubeka kwikhebula lesibini.
Umgama omde:Ukuya kuthi ga kwi-1000 yeemitha kwisegmenti nganye. Ukuya kuthi ga kwi-5000 yeemitha kunye nabaphindayo.
Idatha ecwangcisiweyo nengacwangciswanga:Idatha yolawulo olubalulekileyo isebenzisa unxibelelwano olucwangcisiweyo. Idatha engabalulekanga (efana nemiyalezo ye-HMI) isebenzisa unxibelelwano olungacwangciswanga.

Kutheni i-ControlNet isasetyenziswa:

Iifektri ezininzi ezinkulu zifake i-ControlNet kwi-2000s. Ukutshintsha inethiwekhi yonke kuyabiza.
Ulawulo lwenkqubo kunye nolawulo lwentshukumo luhlala lufuna unxibelelwano oluqinisekileyo.
I-ControlNet ibonelela ngokhuseleko lwengxolo olungcono kune-Ethernet kwiindawo eziphezulu ze-EMI.
I-1756-CNB isetyenziswa kwiinkqubo ezikhoyo. Iinkqubo ezintsha zihlala zisebenzisa i-Ethernet/IP, kodwa iisistim ezindala zifuna iindawo ezitshintshiweyo.

UCwangciso lweNethiwekhi-IiNodi, Ubude beCable, kunye nabaPhindayo

Ucwangciso olululo lwenethiwekhi lubalulekile ekusebenzeni okuthembekileyo kwe-ControlNet. Sebenzisa ezi zikhokelo ukucwangcisa inethiwekhi yakho.

Ipharamitha	Umda	Isiphumo sokuGqiba
IiNodi kwinethiwekhi nganye	99 ubuninzi	Ixesha lohlaziyo lwenethiwekhi liyanyuka. IiNodi zinokuphelelwa lixesha.
Ubude bekhebula ngesegmenti	1000 yeemitha (RG-6)	Ukuthotywa komqondiso. Iimpazamo zonxibelelwano.
Abaphinda kwinethiwekhi nganye	5 ubuninzi	Ukulibaziseka komqondiso. Ukungazinzi kwenethiwekhi.
Ixesha loHlaziyo lweNethiwekhi (NUT)	2ms ukuya kwi-100ms	I-NUT emfutshane inciphisa i-bandwidth yedatha ekhoyo. I-NUT ende icotha impendulo yolawulo.
Izithinteli	2 efunekayo (zombini iziphelo)	Iimpawu zokubonisa. Ukusilela konxibelelwano.

Iindidi zentambo ezicetyiswayo:

Sebenzisa i-RG-6 coaxial cable (75Ω) kwi-ControlNet.
I-Belden 88760 okanye ilingana nayo iyacetyiswa.
Musa ukusebenzisa intambo ye-RG-58 (50Ω). Ibangela ukubonakaliswa komqondiso.
Ziphelise zombini iziphelo ngee-75Ω izipheli. Sebenzisa u-Allen Bradley 1786-TCT okanye ngokulinganayo.

Umzekelo womcimbi:Umthengi usebenzise intambo ye-RG-58 kwinethiwekhi ye-ControlNet. Inkqubo ibineempazamo zonxibelelwano ngamaxesha athile. Iimodyuli ziya kuyiyeka inethiwekhi ngokungacwangciswanga. Unobangela: Ukungahambelani kwekhebhula. Lungisa: Kutshintshwe zonke iintambo ngeRG-6. Ziphelisiwe zozibini iziphelo. Unxibelelwano lwazinza ngoko nangoko.

Ukuhambelana kweFirmware Version

I-Allen Bradley 1756-CNB ineenguqulelo ezahlukeneyo ze-firmware. Iinguqulelo ezindala zisenokungasebenzi ngesoftware entsha yeRSLogix 5000. Jonga ukuhambelana kwe-firmware phambi kofakelo.

Inguqulelo yeFirmware	I-RSLogix 5000 Version ehambelanayo	Amanqaku
Inguqulelo 1.x	RSLogix 5000 v10 okanye ngaphambili	Ndala kakhulu. Isenokungasebenzi ngeenguqulelo ezintsha.
Inguqulelo 2.x	RSLogix 5000 v11 ukuba v15	Ukuhambelana okulinganiselwe.
Inguqulelo 3.x	RSLogix 5000 v16 ukuba v19	Isetyenziswa ngokubanzi. Ukuhambelana kakuhle.
Inguqulelo 4.x	RSLogix 5000 v20 nangaphezulu	Kucetyiswa. Eyona nto ihambelanayo nesoftware entsha.

Yintoni eyenziwa nguFeimu ngaphambi kokuthumela ngenqanawa:

I-1756-CNB nganye ivavanywa kwinethiwekhi yovavanyo lwe-ControlNet.
Inguqulelo yeFirmware iqinisekisiwe kwaye irekhodwa.
Ukuba umthengi uchaza inguqulo ye-firmware efunekayo, sijonga ngaphambi kokuthunyelwa.
Ukuba i-firmware indala kakhulu kwinkqubo yomthengi, sincoma enye imodyuli (1756-CNBR okanye 1756-ENBT).

Inqaku lokuphucula iFirmware:I-firmware ye-1756-CNB ayikwazi ukuphuculwa kwintsimi. Itshiswe kwimodyuli kumzi-mveliso. Indlela yodwa yokufumana inguqulelo entsha kukuthenga imodyuli nge-firmware entsha. I-Feimu ingakunceda ukuchonga uguqulelo olululo lwenkqubo yakho.

Ukumiswa kwedilesi yeNode kunye neempazamo eziqhelekileyo

I-1756-CNB inezitshintshi ezimbini ezijikelezayo kwipaneli yangaphambili. Ezi ziseta idilesi yendawo. Ukusetwa kwedilesi ye-node echanekileyo kubalulekile ekusebenzeni kwenethiwekhi.

Ukusetha idilesi yeNode:

Iiswitshi ezimbini ezijikelezayo zibhalwe "TENS" kunye ne "UNITS".
Iswitshi ye-TENS imisela idijithi yeshumi (0-9).
Ukutshintsha kwe-UNITS kumisela amanani eeyunithi (0-9).
Iidilesi zeendawo ezisebenzayo: 1 ukuya ku-99.
I-Node engu-0 igcinelwe umphathi womnatha (umcwangcisi).

Iimpazamo eziqhelekileyo:

Ukucwangcisa zombini iinguqu ku-0:Oku akusebenzi. Indawo engu-0 ayivumelekanga kwiimodyuli ze-I/O.
Phinda iidilesi:Iimodyuli ezimbini ezinedilesi ye-node efanayo kwinethiwekhi efanayo zibangela iimpazamo zonxibelelwano.
Ndiyalibala ukuseta iiswitshi:Imodyuli isebenzisa idilesi engagqibekanga ukuba iiswitshi azimiselwanga. Ukuhlala kukho ngu-0. Le ayisebenzi.
Ukutshintsha idilesi ngelixa inamandla:Iiswitshi ezijikelezayo zifundwa kumbane. Ukuzitshintsha ngelixa imodyuli inikwe amandla ayitshintshi idilesi. Cima kwaye uvule emva kokutshintsha.

Uqheliselo olucetyiswayo:

Cwangcisa zonke iidilesi ze-node phambi kofakelo.
Bhala idilesi yenodi kwimodyuli ngesiphawuli esisisigxina. Oku kunceda ukugcinwa kwexesha elizayo.
Cima i-chassis ngaphambi kokutshintsha iidilesi ze-node.
Hlala ushiya i-node engu-0 kumcwangcisi womnatha.

Ii-LED zesimo seModyuli kunye noDiagnostics

I-1756-CNB inee-LED ezininzi kwiphaneli yangaphambili. Ezi zibonelela ngobume bemeko ngokukhawuleza ngaphandle kwe-terminal yenkqubo.

I-LED	Ubume	Intsingiselo	Isenzo
PWR	Luhlaza	Imodyuli inikwe amandla kwaye isebenza ngokuqhelekileyo.	Akukho ntshukumo ifunekayo.
PWR	Cimile	Akukho mandla kwimodyuli.	Jonga amandla e-chassis. Jonga ukuba imodyuli ifakiwe.
KULUNGILE	Luhlaza	Imodyuli esebenzayo. Akukho ziphoso.	Akukho ntshukumo ifunekayo.
KULUNGILE	Bomvu	Impazamo yemodyuli. Ukusilela kwehardware okanye impazamo yoqwalaselo.	Faka kwakhona imodyuli. Ukuba ibomvu ishiyekile, buyisela imodyuli.
KULUNGILE	Ukudanyaza	Imodyuli ikwimowudi yoqwalaselo.	Khuphela ubumbeko kwi-RSLogix 5000.
CH A	Luhlaza	Ijelo A liyasebenza. Unxibelelwano lwenethiwekhi lukhona.	Akukho ntshukumo ifunekayo.
CH A	Lubhelu	Isilumkiso sonxibelelwano ngeChaneli A.	Jonga intambo. Jonga isilungisi. Jonga ingxolo.
CH A	Bomvu	Umjelo A impazamo yonxibelelwano.	Jonga uqhagamshelo lwentambo. Jonga ukupheliswa. Tshintsha intambo ukuba yonakele.
CH B	Ngokufanayo no-CH A	Ubume beChaneli B.	Izenzo ezifanayo no-CH A.

Ukuqinisekiswa kweMveliso yoBunyani

Iimodyuli zika-Allen Bradley 1756-CNB ziqhele ukwenziwa umgunyathi. Sebenzisa olu vavanyo ukuqinisekisa ubunyani.

Umbala wephaneli yangaphambili:Iimodyuli zangempela zisebenzisa umbala othile we-beige-grey ohambelana nosapho lwe-ControlLogix. Izinto zomgunyathi zihlala zinomthunzi owahlukileyo okanye ukugqiba okukhazimlayo.
Umgangatho weleyibhile:Iileyibhile zangempela zinokushicilelwa okusisigxina kunye nenombolo yemodeli 1756-CNB ibonakala ngokucacileyo. Iileyibhile zomgunyathi zihlala zinombhalo omfiliba okanye amaxolo emiphethweni.
Umgangatho wokutshintsha okujikelezayo:Iiswitshi ezijikelezayo zokwenyani ziqinile kunye ne-positive detent. Iiswitshi zomgunyathi zihlala zineeswitshi ezikhululekileyo okanye ezincangathi.
Umgangatho wezibuko le-BNC:Izibuko ze-BNC zokwenyani zenziwe ngegolide kwaye zilingana iintambo ngokukhuselekileyo. Iinkohliso zihlala zisebenzisa izihlanganisi ezikumgangatho ophantsi ezikhululekile.
Ubunzima bemodyuli:I-1756-CNB eyinyani inobunzima obumalunga ne-0.35 kg. Izinto zomgunyathi zihlala zivakala lula.
Isitika seFirmware:Iimodyuli zokwenyani zinestikha esincinci esibonisa inguqulelo yefirmware. Izinto zomgunyathi zihlala zingenaso esi sincamathelisi.

Ukuba imodyuli ibonisa ebomvu OK LED emva koqwalaselo olufanelekileyo, krokrela umgunyathi. Qhagamshelana ne-Feimu Technology ngeefoto zokuqinisekisa.

Malunga Feimu Technology

I-Feimu Technology isebenza kwiSixeko saseJiangmen, kwiPhondo laseGuangdong, eChina. Inkampani yasekwa ngo-2005 kwaye ibonelele ngezixhobo ezizenzekelayo kubathengi kumazwe angaphezu kwama-30.

Iminyaka yokusebenza:Iminyaka engama-20 ukusukela ngo-2025.
Indawo yokugcina impahla:2000+ square metres. Ubushushu bulawulwa. Ukufuma kugcinwe ngaphantsi kwe-60%.
Uluhlu lwempahla:5000+ esebenzayo SKUs. Iquka iimodyuli ze-ControlLogix, i-CompactLogix, i-SLC 500, kunye ne-POINT I / O.
Iimpawu ezithwalwayo:Allen Bradley, Siemens, GE, Schneider.
Iimarike ezithumela ngaphandle:EYurophu, kuMntla Merika, eMzantsi Melika, kuMbindi Mpuma, kuMntla-mpuma weAsia. Amazwe angaphezu kwama-30.
Uvavanyo lwe-1756-CNB:Imodyuli nganye ijongwa ngokubonakalayo. Iiswitshi ezijikelezayo zikhangelwe ukuba zisebenza kakuhle. Izibuko ze-BNC zihloliwe. Imodyuli ivuliwe kwi-chassis yovavanyo lwe-ControlLogix. Kulungile i-LED iqinisekisiwe. Unxibelelwano luvavanywa ngentambo yovavanyo kunye ne-analyzer yenethiwekhi. Inguqulelo yeFirmware iqinisekisiwe kwaye yarekhodwa. Uvavanyo lokutshisa iiyure ezingama-24.
Iwaranti:Iinyanga ezili-12 ukusuka kumhla wokuthunyelwa. Igubungela iziphene kwimveliso. Ayiwuvali umonakalo wentambo, umbane ogqithisileyo, umonakalo womzimba, okanye umonakalo wamanzi.

Iinkcukacha zoqhakamshelwano:
I-imeyile: sales@feimutech.com
WhatsApp: +86 13358323579
Iwebhusayithi esemthethweni: www.feimuplc.com
Ixesha lokuphendula: Kwiiyure ezingama-24. Imibuzo yobugcisa idla ngokuphendulwa kwiiyure ezili-12. Bandakanya inombolo yesiriyeli yemodyuli kunye noguqulelo lwe-firmware xa uqhagamshelana.

Iithegi ezishushu: U-Allen Bradley 1756-CNB, uMboneleli, ukuhanjiswa ngokukhawuleza
