UAllen Bradley 2711P-T6C20D Ungayiphucula njani uLawulo lwe-HMI yeShishini kunye nokubonakala komatshini

Isishwankathelo seNqaku:I-automation ye-Industrial automation ixhomekeke kwi-interfaces ethembekileyo yomntu-omatshini ovumela abaqhubi ukuba babeke iliso kwizixhobo, balawule iiparitha zenkqubo, baphendule kwii-alamu, kwaye banxibelelane neenkqubo zokulawula ngokufanelekileyo. Njengesixhobo esisebenzayo sePanelView Plus 600 touch terminal, iAllen Bradley 2711P-T6C20Didibanisa umboniso wombala, ukusebenza kwesikrini esichukumisayo, i-Ethernet kunye nezakhono zonxibelelwano lwe-serial, kunye ne-24V DC igalelo lamandla kuyilo lweshishini oludibeneyo.Feimuinceda abasebenzisi be-automation bavavanye amacandelo e-HMI ngokuhambelana nenkqubo, iimfuno zonxibelelwano, iimeko zofakelo, kunye neemfuno zokutshintsha. Esi sikhokelo sichaza iinkcukacha ezingundoqo zemveliso, ixabiso lesicelo, ingqwalasela yokukhetha, imiba yokufakela, kunye nezenzo zokulondoloza.

Isiqulatho

1. Yintoni u-Allen Bradley 2711P-T6C20D?
2. Ziziphi iiNgcaciso eziPhambili?
3. Zeziphi iimpawu eziBalulekileyo kwizicelo zoShishino?
4. Ingasetyenziswa Phi i-HMI?
5. Kufuneka Uyivavanye Njani le HMI kwiNkqubo yoLawulo?
6. Yintoni ekufuneka ithathelwe ingqalelo ngexesha loFakelo?
7. AbaSebenzisi banokukugcina Njani ukuthembeka kwexesha elide?
8. Imibuzo ebuzwa qho

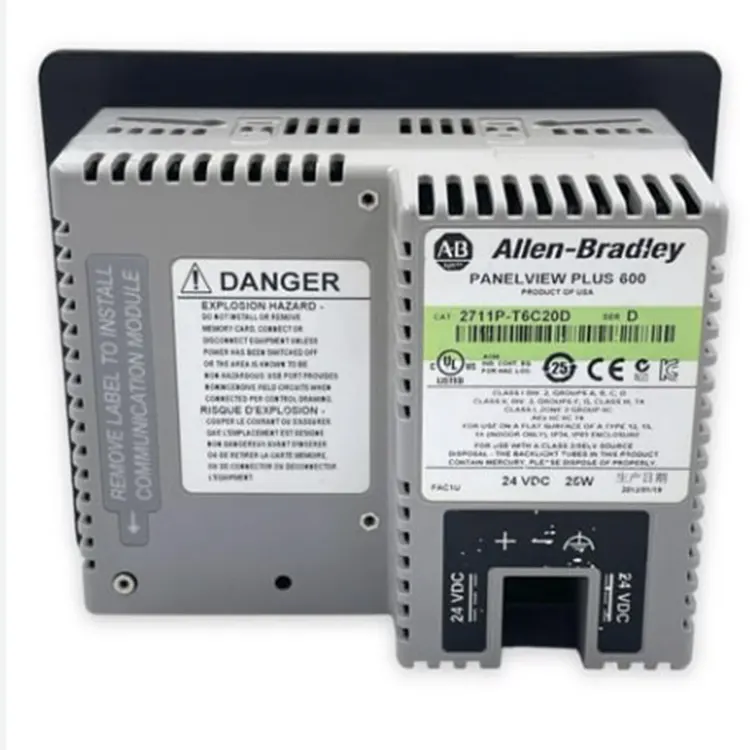

Yintoni u-Allen Bradley 2711P-T6C20D?

IAllen Bradley 2711P-T6C20DyeyePanelView Plus 600 yosapho lweetheminali zabaqhubi bemizi-mveliso kwaye yenzelwe ukubonelela ngojongano phakathi kwabaqhubi kunye noomatshini abazenzekelayo. Esikhundleni sokuthembela kukutshintsha komzimba kunye nezalathi ezihlukeneyo kwimeko nganye yomatshini, i-HMI yoshishino inokudibanisa ulwazi olusebenzayo, ii-alamu, ixabiso lenkqubo, kunye nokulawula imisebenzi kwi-graphical interface.

Kwizixhobo zokuvelisa, le ndlela inokwenza umsebenzi wesiqhelo ulungelelaniswe ngakumbi. Abasebenzisi banokusebenzisa isikrini sokuchukumisa ukukhangela izikrini zosetyenziso, ukujonga iimeko zomatshini, ukuvuma ii-alam, kunye nokusebenzisana nemisebenzi emiselweyo yolawulo. I-compact form factor yetheminali iyenza ilungele iikhabhathi zolawulo kunye nezikhululo zomatshini ezisecaleni komatshini apho indawo yolawulo ilinganiselwe.

Ngenxa yokuba ukhetho lwe-HMI luxhomekeke kakhulu kuyilo lwe-PLC olukhoyo kunye nesoftware yesicelo, abathengi kufuneka baqinisekise ubumbeko lwekhathalogu, i-firmware, iimfuno zonxibelelwano, kunye nokuhambelana kwesicelo ngaphambi kokutshintshwa okanye ukuhlanganiswa.

Ziziphi iiNgcaciso eziPhambili?

Ukuqonda iimpawu zobugcisa ze-HMI kubalulekile ngaphambi kokuba ifakwe kwinkqubo ekhoyo yokuzenzekelayo. Le theyibhile ilandelayo ishwankathela iinkcazo eziqhelekileyo ezibhekiselele kwi-terminal ye-2711P-T6C20D.

Iinkcukacha zinokwahluka ngokwesimamva sekhathalogu, uhlaziyo lwehardware, kunye noqwalaselo lwetheminali. Kwiprojekthi yokubuyisela ubunjineli, hlala uthelekisa i-nameplate kunye namaxwebhu enkqubo ekhoyo kunokuba ukhethe ukutshintshwa kuphela ngenombolo yekhathalogu yesiseko.

Zeziphi iimpawu eziBalulekileyo kwizicelo zoShishino?

1. Umboniso ocacileyo woMbala

Umboniso wombala uvumela ulwazi lomatshini ukuba lulungelelaniswe ngokwezikrini zegraphical ezinezibonisi zobume, amaxabiso enkqubo, imiyalezo ye-alam, amaqhosha, kunye nemiyalelo yokusebenza. Oku kunokunceda abaqhubi baqonde iimeko zezixhobo ngaphandle kokubhekisa rhoqo kwizixhobo ezahlukeneyo.

2. Ukusebenzisana ngokuthe ngqo kwescreen seTouchscreen

Isikrini sokuchukumisa esichasayo sibonelela ngonxibelelwano oluthe ngqo kunye nezikrini ezimiselweyo ze-HMI. Abasebenzisi banokukhetha iimenyu, bangenise amaxabiso, bavume ii-alam, kwaye bafikelele kwimisebenzi eyahlukeneyo yomatshini ukusuka kujongano olufanayo. Olu luyilo lusebenza ngokukhethekileyo kwizikhululo zokulawula umatshini apho ukusebenza ngokuthe ngqo kubalulekile.

3. UQhagamshelwano loNxibelelwano lwezoShishino

Ikhono lonxibelelwano yenye yezona zinto zibalulekileyo xa udibanisa i-HMI kwinkqubo yokuzenzekelayo. Ukucwangciswa kwe-2711P-T6C20D kuhambelana ne-Ethernet kunye ne-RS-232 yonxibelelwano, kunye ne-interfaces ye-USB ekhoyo kwimisebenzi exhaswayo. Olu nxibelelwano lunokuxhasa utshintshiselwano lwedatha, ulawulo lwesicelo, kunye nokudibanisa nezixhobo ezizenzekelayo ezihambelanayo.

4. Ufakelo lwePaneli yeCompact

Iikhabhathi zokulawula zihlala zinendawo ekhoyo ekhoyo. Itheminali ebambeneyo yesikrini sokuchukumisa inokubonelela ngokubonwa komsebenzisi ngaphandle kokufuna indawo ebiyelweyo enkulu. Phambi kofakelo, iinjineli kufuneka ziqinisekise imilinganiselo efunekayo yokusikwa, indawo yokuphuma, indlela yentambo, kunye neemeko zokungena komoya.

5. IiNgqwalasela zoLondolozo oluSebenzayo

Ii-HMIs zoShishino zihlala zilindeleke ukuba zisebenze ngokuqhubekayo kwiindawo zemveliso. Isicelo esicwangciswe ngokucacileyo, iimeko ezifanelekileyo zokusingqongileyo, ii-backups eziqhelekileyo, kunye nomgangatho ofanelekileyo wamandla unokunikela ekusebenzeni okuthembekileyo.

Ingasetyenziswa Phi i-HMI?

IAllen Bradley 2711P-T6C20Dinokuqwalaselwa kwizicelo zoshishino apho abaqhubi bafuna ukubonwa kwendawo kunye nokulawulwa komatshini. Iimeko zosetyenziso oluqhelekileyo ziquka:

• oomatshini bokuvelisa:Beka iliso kumazwe asebenzayo, iiparamitha zemveliso, iialam, kunye nolandelelwano lomatshini.
• Izixhobo zokuPakisha:Bonisa ulwazi lwemveliso, useto lokusebenza, imiyalezo enempazamo, kunye nemo yomatshini.
• Iinkqubo zokuphatha izinto:Ukubonelela ngojongano lomsebenzi kubahambisi, izixhobo zokudlulisa, kunye neenkqubo zokuphatha ezizenzekelayo.
• Isixhobo seNkqubo:Bona ngeso lengqondo izinto eziguquguqukayo ezifana nobushushu, uxinzelelo, ukuqukuqela, kunye nesimo sesixhobo xa uxhaswa luyilo lolawulo.
• Ukulungiswa ngokutsha koomatshini:Faka indawo ye-terminal yomsebenzisi ogugayo xa ubungakanani bomzimba, iimfuno zonxibelelwano, ukuhambelana kwesoftware, kunye nokusebenza kwesicelo kuqinisekisiwe.

Kwisicelo ngasinye, i-HMI kufuneka ivavanywe njengenxalenye enye yoyilo olupheleleyo lolawulo kunokuba isixhobo esizimeleyo. Ukuhambelana kwe-PLC, isoftware yesicelo, iiprothokholi zonxibelelwano, iimfuno zamandla, iimeko zokusingqongileyo, kunye nokuhamba komsebenzi wabaqhubi kufuneka zonke ziqwalaselwe kunye.

Kufuneka Uyivavanye Njani le HMI kwiNkqubo yoLawulo?

Ukukhetha i-HMI yeshishini ayingombandela nje wokuthelekisa ubungakanani besikrini. Inkqubo yokhetho ethembekileyo kufuneka iqale ngeemfuno zangempela zomatshini kunye nenkqubo ekhoyo yokuzenzekelayo.

1. Jonga inombolo yekhathalogu ekhoyo:Rekhoda imodeli epheleleyo kunye nolwazi loluhlu olusuka kwi-terminal efakiweyo.
2. Qinisekisa iimfuno zonxibelelwano:Chonga ukuba usetyenziso lusebenzisa i-Ethernet, unxibelelwano olulandelelanayo, imisebenzi ye-USB, okanye olunye ujongano.
3. Phonononga isicelo seHMI:Qinisekisa iinguqulelo zesoftware, iifayile zeprojekthi, iimfuno zexesha lokusebenza, kunye nokufumaneka kogcino.
4. Yenza umlinganiselo wokuvulwa kwendawo yolawulo:Qinisekisa ukuba i-terminal efakelweyo ihambelana ne-cutout esele ikhona kunye nolungiselelo lokunyuswa.
5. Qinisekisa iimfuno zamandla:Jonga unikezelo lwe-DC olukhoyo, uluhlu lombane, ilungiselelo lokumisa, kunye nokhuseleko.
6. Vavanya iimeko zokusebenza:Qwalasela ubushushu, ukufuma, ukungcangcazela, uthuli, iinkqubo zokucoca, kunye nezinye izinto zokusingqongileyo.

Le ndlela icwangcisiweyo inokunciphisa imingcipheko yokuhambelana kwaye yenza iiprojekthi zokutshintshwa kwe-HMI zibe lula ukulawula.

Yintoni ekufuneka ithathelwe ingqalelo ngexesha loFakelo?

Ufakelo oluchanekileyo luyimfuneko ekuphumezeni ukusebenza okuzinzileyo kwe-HMI. Phambi kokunika amandla i-terminal, iinjineli kufuneka ziqinisekise ukuba i-cutout yekhabhathi kunye nesakhiwo sokuxhoma siyahlangabezana nemilinganiselo efunekayo. Umboniso kufuneka ubekwe endaweni ukuze abasebenzisi bakwazi ukujonga ulwazi ngokukhululeka ngaphandle kwe ilitha eligqithisileyo okanye isithintelo.

Iingcingo zombane kufuneka zijongwe ngononophelo, ngakumbi malunga ne-polarity, inqanaba lombane, isiseko kunye nokhuseleko. Iintambo zonxibelelwano kufuneka zihanjiswe ngendlela yokunciphisa ukuphazamiseka okungeyomfuneko kwisixhobo sombane esinamandla amakhulu.

Emva kofakelo, ukugunyaziswa kufuneka kuqhubeke ngezigaba:

• Qinisekisa unikezelo lombane phambi kokudibanisa i-terminal.
• Qinisekisa iingcingo zonxibelelwano kunye noqwalaselo lwenethiwekhi.
• Layisha okanye ubuyisele usetyenziso oluchanekileyo lwe-HMI.
• Vavanya izikrini zomsebenzisi kunye nemisebenzi yokukhangela.
• Qinisekisa iialam kunye neziboniso zobume bomatshini.
• Vavanya unxibelelwano kunye ne-PLC ehambelanayo okanye umlawuli.
• Rekhoda ulungelelwaniso lokugqibela lolondolozo lwexesha elizayo.

Kwiiprojekthi zokutshintsha, ukugcina i-backup epheleleyo yesicelo se-HMI esele sikhona kunye noqwalaselo phambi kokuba uhlengahlengiso lulula kakhulu ukuchacha ukuba kukho iingxaki zokugunyazisa.

AbaSebenzisi banokukugcina Njani ukuthembeka kwexesha elide?

Ukugcinwa kokuthintela yinxalenye ebalulekileyo yolawulo oluzenzekelayo lwemizi-mveliso. Nokuba i-HMI isebenza ngokuqhelekileyo, ukuhlolwa rhoqo kunokunceda ukuchonga iingxaki ngaphambi kokuba ziphazamise imveliso.

• Gcina isikrini sokuchukumisa sicocekile kwaye singenathuli olugqithisileyo okanye intsalela yamashishini.
• Hlola amandla kunye noqhagamshelwano lonxibelelwano ngamaxesha athile.
• Gcina ii-backups zangoku zeefayile zesicelo kunye nedatha yoqwalaselo.
• Ukubeka iliso kwindlela yokuziphatha engaqhelekanga yonxibelelwano kunye ne-alam yenkqubo ephindaphindiweyo.
• Jonga ubushushu obungqongileyo kunye neemeko zokusingqongileyo.
• I-firmware yoxwebhu, usetyenziso, kunye nohlaziyo lwehardware emva komsebenzi wenkonzo.
• Sebenzisa iinkqubo ezifanelekileyo zokutshintsha xa i-HMI ibonisa i-hardware eqhubekayo okanye iingxaki zokubonisa.

Kufakelo oludala oluzenzekelayo, ucwangciso lolondolozo luba lubaluleko ngakumbi kuba ukufumaneka kokutshintshwa, ukuhambelana kwesoftware, kunye nemeko yehardware kufuneka ivavanywe phambi kokuba kumiswe ukuveliswa okungalindelekanga.

Imibuzo ebuzwa qho

UAllen Bradley 2711P-T6C20D usetyenziselwa ntoni?

I-Allen Bradley 2711P-T6C20D yi-interface yomsebenzisi wemboni eyenzelwe ukubonwa komatshini kunye nokulawula. Ingabonisa ulwazi lwenkqubo, ii-alamu, ubume bomatshini, kunye nolawulo olucwangcisiweyo lokusebenza.

Loluphi uhlobo lwesiboniso olusetyenziswa yi-2711P-T6C20D?

I-terminal inxulunyaniswa nombala we-5.7-intshi esebenzayo-matrix TFT ukubonisa kunye nesisombululo se-pixel ye-320 × 240. Isikrini sokuchukumisa sisebenzisa iteknoloji ye-analog resistive.

Ngaba u-Allen Bradley 2711P-T6C20D uxhasa i-Ethernet?

Ukucwangciswa konxibelelwano lwe-20-series yenzelwe amandla e-Ethernet kunye ne-RS-232 kunye ne-USB interfaces. Nangona kunjalo, abathengi kufuneka baqinisekise isimamva sesiphelo sesiphelo esichanekileyo kunye nolungelelwaniso lwehardware phambi kokuthenga enye.

Loluphi unikezelo lombane olufunwa yitheminali?

Itheminali iyilwe malunga ne-24V DC yombane weshishini. Olona luhlu lwegalelo oluvumelekileyo kunye neemfuno zesixokelelwano samandla kufuneka zikhangelwe ngokuchasene namaxwebhu oqwalaselo lwehardware oluchanekileyo.

Ngaba i-2711P-T6C20D ifanelekile kwiiprojekthi zokutshintshwa kwe-HMI?

Inokuthi ithathelwe ingqalelo kwiiprojekthi ezitshintshileyo xa usetyenziso olukhoyo, ujongano lonxibelelwano, ukusika ipaneli, iimfuno zamandla, imeko yesoftware, kunye nohlaziyo lwehardware zihambelana. Imodeli epheleleyo-inombolo kunye netshekhi yesistim kufuneka igqitywe ngaphambi kokutshintshwa.

Ukuqukumbela

IAllen Bradley 2711P-T6C20Dibonelela ngesisombululo esisebenzayo se-HMI soshishino kwizicelo ezifuna ukubonwa kwesikrini sokuchukumisa, ukusebenzisana kwabaqhubi, kunye nonxibelelwano kunye nezixhobo ezizenzekelayo. I-compact PanelView Plus 600 uyilo, umboniso wombala, isikrini sokuthinta i-industrial, kunye nezakhono zonxibelelwano zenza ukuba zihambelane nolawulo lomatshini, ukupakishwa, ukuvelisa, kunye nezicelo zokubuyisela kwakhona. Ukuba uvavanya ukufumaneka, ukuhambelana, ukhetho lokutshintsha, okanye iinkcukacha zobugcisa kwiprojekthi yakho yokuzenzekelayo,Qhagamshelana nathieFeimu ukuxoxa ngeemfuno zakho kwaye uchonge isisombululo esifanelekileyo sokuzisebenzela kwimizi-mveliso.
